Panduit F2X4LG6 Panduct® F2X4LG6 Base Wiring Duct
Panduit F2X4LG6 Panduct® F2X4LG6 Base Wiring Duct
- MPN: F2X4LG6
- UPC: 074983375615
- PPN: PAN-F2X4LG6
- UNSPSC: 39131712
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$7.62/ FT
Description

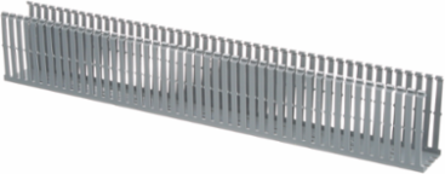

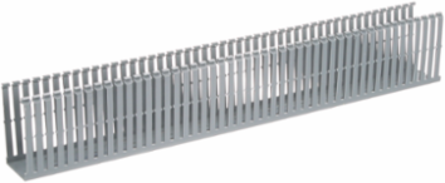

The F2X4LG6 Panduct Lead-Free PVC Narrow Slot Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. Lead-free PVC. 2" x 4" (50.8 mm x 101.6 mm) and 6' (1.83 m) long. Cover sold separately. Color Light Gray.
Specifications
Specifications
- Country of Origin
- United States
- Product Segment
- IEI
- Product Type
- Base Wiring Duct
- Overall Length (m)
- 1.83
- Overall Width (In.)
- 2.25
- Includes
- (1) Base
- Slot Width (In.)
- 0.2
- Wiring Duct Style
- Narrow Slot Wiring Duct
- Sub Brand
- Panduct®
- Measurement System
- Imperial
- Overall Height (In.)
- 4.1
- Overall Length (ft.)
- 6
- Nominal Height (In.)
- 4
Any Reason Not to SellN
Overall Width (mm)57.2
ApplicationNarrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
Flammability RatingUL94V-0
MaterialPVC
Overall Height (mm)104.1
ColorLight Gray
Slot Width (mm)5
Mount MethodMounting Holes
Wiring Duct TypeF
Cover Part NumberC2LG6
Material PropertiesLead-Free
Nominal Width (In.)2
Packaging Details
- UPC
- 07498337561
- Standard Package Volume Ft3
- 0.2755
- Std Package Height In
- 4
- Std Package Length In
- 72
- Std Package Width In
- 2
- Std. Pkg. UOM
- Foot
- Std. Pkg. Qty.
- 6
- Standard Carton Volume Ft3
- 2.7551
- Std Carton Height In
- 4.6
- Std Carton Length In
- 72.9
- Std Carton Width In
- 14.1
- Std Ctn Qty
- 60
- EAN
- 00074983375615
- ARRA Compliant
- Y
- Hazardous Material Flag
- N
- Pallet Quantity
- 1,260
- Pallet Weight
- 611.1000
GTIN Package00074983375615
Standard Package Weight Pounds2.9100
Std Package Height MM101.6
Std Package Length MM1828.8
Std Package Width MM50.8
UOM EA PKPK
GTIN Carton50074983375610
Standard Carton Weight Pounds29.1000
Std Carton Height MM116.84
Std Carton Length MM1851.66
Std Carton Width MM358.14
Min. Order UOMFoot
REACH StatusN
Mercury Content IndicatorN
Min Order Qty60.0000
Pallet Volume57.856788
RoHS CompliantCompliant
