Schneider Electric DXN10041E Dexson Mini Trunking 20x12 mm, PVC, White, IK07, IP40, 2000 mm Length
- MPN: DXN10041E
- PPN: SCH-DXN10041E
CAD
$10.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

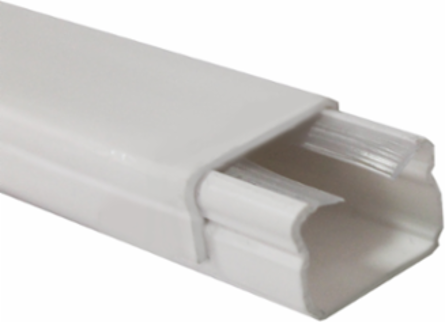

The Dexson Mini Trunking from Schneider Electric is designed to provide efficient cable management while maintaining a clean and organized appearance. Measuring 20x12 mm and crafted from durable PVC, this trunking is available in a sleek white finish, making it a stylish addition to any installation. Rated with an IK07 impact protection and IP40 ingress protection, it ensures reliable performance even in moderate environmental conditions, safeguarding your cables against dust and impacts. With a generous length of 2000 mm, it offers ample coverage for various cable-routing needs, making it a practical solution for both commercial and residential applications.
Documentation & Downloads
Specifications
Key Specifications
| Range Of Product | Dexson |
|---|---|
| Colour Tint | white RAL 9003) |
| Provided Equipment | without adhesive |
| Main Colour Tint | white |
| Quantity Per Set | 1 |
|---|---|
| Product Or Component Type | mini trunking |
| Range | Dexson |
| Device Presentation | with cover |
Complementary
| Height | 12 mm |
|---|---|
| Width | 20 mm |
| Length | 2000 mm |
| Compartment Partitioning | 1 compartment |
| Fixing Mode | screw-fixed |
|---|---|
| Trunking Dimension | 20 x 12 mm |
| Material | PVC (polyvinyl chloride) |
Environment
| Flame Retardance | HB UL 94 V0 || self-extinguishing || M1 UNE 23727 |
|---|---|
| Environmental Characteristic | lubricant resistant || impact resistant || oil resistant |
| Ik Degree Of Protection | IK07 |
| Ambient Air Temperature For Operation | -5-60 °C |
|---|---|
| Standards | EN 50085 || UL 1595 |
| Ip Degree Of Protection | IP40 |
Contractual warranty
| Warranty | 5 Years |
|---|
Offer Sustainability
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Rohs Exemption Information | Yes |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Circularity Profile | N/A |
|---|---|
| Environmental Disclosure | ENVPEP2209017EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Free Of Svhc | Yes |
