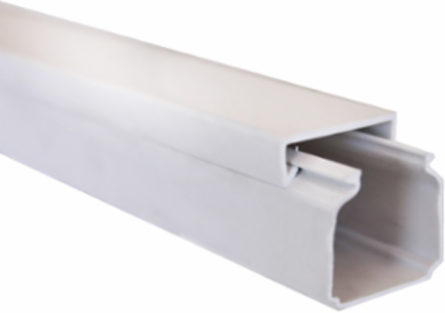

Schneider Electric DXN10081E Dexson Mini Trunking 25x25 mm, 2000 mm Length, PVC, White
- MPN: DXN10081E
- PPN: SCH-DXN10081E
CAD
$11.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This DXN10081E Dexson Mini Trunking from Schneider Electric offers a practical solution for cable management, featuring a compact design with dimensions of 25x25 mm and a generous length of 2000 mm. Made from durable PVC in an elegant white finish, it blends seamlessly into various environments while providing essential protection for electrical cables. Ideal for both residential and commercial applications, this trunking ensures organized and safe routing of wires, making it a reliable choice for maintaining a tidy appearance in any installation.
Documentation & Downloads
Specifications
Key Specifications
| Range Of Product | Dexson |
|---|---|
| Product Or Component Type | mini trunking |
| Range | Dexson |
| Quantity Per Set | 1 |
| Colour Tint | white RAL 9003) |
|---|---|
| Provided Equipment | without adhesive |
| Device Presentation | with cover |
| Main Colour Tint | white |
Complementary
| Height | 25 mm |
|---|---|
| Trunking Dimension | 25 x 25 mm |
| Material | PVC (polyvinyl chloride) |
| Width | 25 mm |
| Fixing Mode | screw-fixed |
|---|---|
| Length | 2000 mm |
| Compartment Partitioning | 1 compartment |
Environment
| Ambient Air Temperature For Operation | -5-60 °C |
|---|---|
| Ik Degree Of Protection | IK07 |
| Environmental Characteristic | oil resistant || impact resistant || lubricant resistant |
| Standards | EN 50085 || UL 1595 |
|---|---|
| Flame Retardance | HB UL 94 V0 || self-extinguishing || M1 UNE 23727 |
| Ip Degree Of Protection | IP40 |
Contractual warranty
| Warranty | 5 Years |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Reach Free Of Svhc | Yes |
| Circularity Profile | N/A |
| Environmental Disclosure | ENVPEP2209017EN |
|---|---|
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
