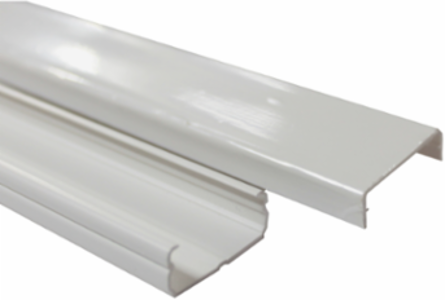

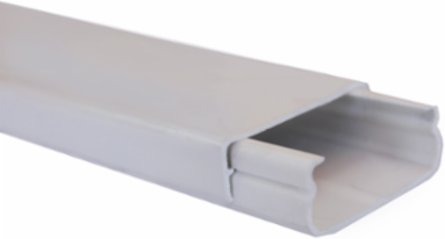

Schneider Electric DXN10101E Mini Trunking 32 x 12 mm PVC White, 1 Compartment, Screw-Fixed
- MPN: DXN10101E
- PPN: SCH-DXN10101E
CAD
$12.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Schneider Electric DXN10101E Mini Trunking is designed to provide effective cable management in various settings, with a sleek PVC white finish that seamlessly integrates into any environment. Measuring 32 x 12 mm, this trunking offers a single compartment for organized wiring solutions, helping to maintain a tidy and safe space by securely housing electrical cables. Easy to install with screw-fixed mounting, this mini trunking is ideal for both commercial and residential applications where efficient cable distribution is essential. With its robust construction and practical design, it serves as a reliable choice for ensuring that your electrical installations are both functional and aesthetically pleasing.
Documentation & Downloads
Specifications
Key Specifications
| Range Of Product | Dexson |
|---|---|
| Colour Tint | white RAL 9003) |
| Provided Equipment | without adhesive |
| Main Colour Tint | white |
| Quantity Per Set | 1 |
|---|---|
| Product Or Component Type | mini trunking |
| Range | Dexson |
| Device Presentation | with cover |
Complementary
| Height | 12 mm |
|---|---|
| Width | 32 mm |
| Length | 2000 mm |
| Compartment Partitioning | 1 compartment |
| Fixing Mode | screw-fixed |
|---|---|
| Trunking Dimension | 32 x 12 mm |
| Material | PVC (polyvinyl chloride) |
Environment
| Flame Retardance | HB UL 94 V0 || self-extinguishing || M1 UNE 23727 |
|---|---|
| Environmental Characteristic | oil resistant || impact resistant || lubricant resistant |
| Ik Degree Of Protection | IK07 |
| Ambient Air Temperature For Operation | -5-60 °C |
|---|---|
| Standards | EN 50085 || UL 1595 |
| Ip Degree Of Protection | IP40 |
Contractual warranty
| Warranty | 5 Years |
|---|
Offer Sustainability
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Rohs Exemption Information | Yes |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Circularity Profile | N/A |
|---|---|
| Environmental Disclosure | ENVPEP2209017EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Free Of Svhc | Yes |
