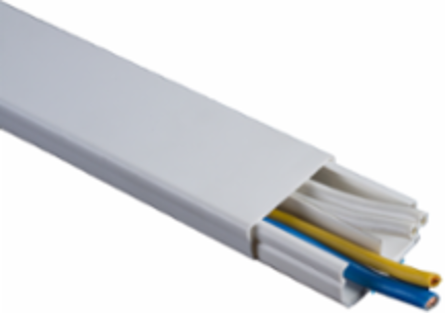

Schneider Electric DXN10131E Mini Trunking 32x12 mm 2 Compartment Adhesive PVC White
- MPN: DXN10131E
- PPN: SCH-DXN10131E
CAD
$15.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This mini trunking solution from Schneider Electric is expertly designed for efficient cable management, featuring a dual-compartment structure that allows for organized routing of electrical wiring. Made from durable PVC with an adhesive backing, this white trunking is not only easy to install but also blends seamlessly into various environments. Measuring 32x12 mm, it provides ample space for safeguarding and concealing cables, ensuring a neat and professional finish in any industrial or commercial setting. The practical design coupled with robust materials makes it an excellent choice for anyone looking to enhance their electrical infrastructure.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Dexson
- Product Or Component Type
- mini trunking
- Range
- Dexson
- Quantity Per Set
- 1
Colour Tintwhite RAL 9003)
Provided Equipmentadhesive
Device Presentationwith cover
Main Colour Tintwhite
Complementary
- Height
- 12 mm
- Trunking Dimension
- 32 x 12 mm
- Material
- PVC (polyvinyl chloride)
- Width
- 32 mm
Fixing Modeadhesive || screw-fixed
Length2000 mm
Compartment Partitioning2 compartments
Environment
- Ambient Air Temperature For Operation
- -5-60 °C
- Ik Degree Of Protection
- IK07
- Environmental Characteristic
- lubricant resistant || impact resistant || oil resistant
StandardsEN 50085 || UL 1595
Flame RetardanceHB UL 94 V0 || self-extinguishing || M1 UNE 23727
Ip Degree Of ProtectionIP40
Contractual warranty
- Warranty
- 5 Years
Offer Sustainability
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Free Of Svhc
- Yes
- Circularity Profile
- N/A
Environmental DisclosureENVPEP2209017EN
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
