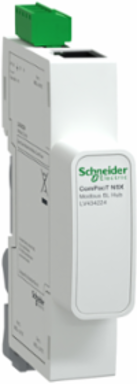

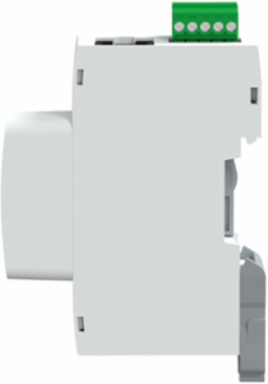

Schneider Electric S434224 Circuit breaker accessory, Modbus serial hub, DIN rail
- MPN: S434224
- PPN: SCH-S434224
CAD
$568.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Square D PowerPacT H, J and L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. Molded case circuit breakers are available with either thermal-magnetic or Micrologic electronic trip units. The Modbus serial hub is used in industrial automation and control systems to manage communication between multiple Modbus devices over a serial connection. It uses an RJ45 connector. The unit mounts on a 35mm DIN rail. The Modbus serial hub operational voltage is 24VDC. This unit is CISPR 32 and IEC certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth18 mm
Communications & Management Attributes
- Communication Network Type
- Modbus, Modbus Serial line slave 9.6...38.4 kbauds
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Range
- ComPacT, PowerPact
- Local Data Status
- Publishable
- Pre Comm Date
- 2024-09-09
- Stocking Flag
- Y
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Application
- communication
- Energy Efficiency Optimized
- False
- Mounting Mode
- by clips
- Power Consumption In W
- 0.048 W
- Product Or Component Type
- Modbus hub
- Sustainable Packaging
- No
- Width Nominal
- 71 mm
- [Us] Rated Supply Voltage
- 24 V DC
- Halogen-free Status
- Halogen free plastic parts product
- Package Weight(Lbs)
- 151 g
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Range Of ProductComPacT NSX100...250, ComPacT NSX400...630, PowerPact H, PowerPact J, PowerPact L
Local Publishable Date2025-11-13
Return IndicatorY
Stock Policy1
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2417
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Current Consumption2 mA 24 V DC room temperature
Device Short NameModbus SL HUB
Function Of Moduledaisy chain for Modbus devices
Mounting Support35 mm DIN rail
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Height Nominal102 mm
Certificate AgencyUL
Connections - TerminalsRJ45 connector
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8517620090
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Halogene Performance
- Halogen free plastic parts product
- Mercury Free
- Yes
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 5-85 % 55-55 °C without condensation
Ambient Air Temperature For Operation-25-55 °C, -25-55 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Range Of Product
- ComPacT NSX100...250, ComPacT NSX400...630, PowerPact H, PowerPact J, PowerPact L
Product Or Component TypeModbus hub
Input Attributes
- Input Voltage
- 24 V DC +/- 10 %
