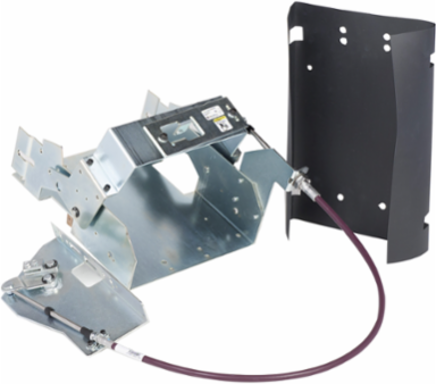

Square D 9422CMP10 PowerPacT M/P Circuit Breaker Disconnect Mechanism, 120 Inch Cable
- MPN: 9422CMP10
- UPC: 785901958642
- PPN: SCH-9422CMP10
CAD
$1759.86
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. This flexible cable mechanism is for use with PowerPacT M and P circuit breakers. It has a 120 inch length cable mechanism. This product complies with UL standards.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico, United States |
|---|
Physical Attributes
| Cable Length | 120 in |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1923 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Circuit Breaker Name | PowerPact M or P 3 |
| Product Availability | Stock - Normally stocked in distribution facility |
| Provided Equipment | ordered separately |
| Returnability | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Package Weight(Lbs) | 7.258 kg |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Publishable Date | 2025-11-13 |
| Stocking Flag | Y |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Number Of Cables | 1 |
| Product Or Component Type | Single Cable Operating Mechanism |
| Range Of Product | 9422C |
| Sustainable Packaging | No |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538908180 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
General Attributes
| Product Or Component Type | Single Cable Operating Mechanism |
|---|---|
| Range Of Product | 9422C |
| Provided Equipment | ordered separately |
|---|
ETIM
| ETIM 8 | EC002498 |
|---|
| ETIM 9 | EC002498 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
