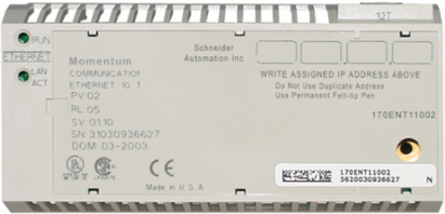

Schneider Electric 170ENT11002 Modicon Momentum Ethernet Communication Adaptor 10 Mbit/s, IP20
- MPN: 170ENT11002
- PPN: SCH-170ENT11002
CAD
$712.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Ethernet Communication Adaptor from Schneider Electric is designed to enhance the connectivity of your Modicon Momentum system, operating at a robust speed of 10 Mbit/s. This device seamlessly integrates into your automation and control processes, ensuring efficient data transfer while conforming to the IP20 protection standard. Its adaptability makes it an essential component for improving communication in various PLC and HMI applications, reinforcing the reliability and performance of your data acquisition setup. With this adaptor, you can optimize your network components and facilitate smoother interactions within your operational framework.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France, United States |
|---|
| Depth | 259 mm |
|---|
Communications & Management Attributes
| Communication Port Protocol | Ethernet TCP/IP |
|---|
Physical Attributes
| Cable Length | 1000 m |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM8, SI |
|---|---|
| Local Signalling | 1 LED green Ethernet network state (LAN), 1 LED green module active (RUN) |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2023 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 4 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Bearing Track Assembly Possible | true |
| Marking | CE |
| Number Of Devices Per Segment | 0-32 |
| Product Or Component Type | Ethernet TCP/IP communication adaptor |
| Radio Standard Bluetooth | false |
| Radio Standard Gsm | false |
| Range Of Product | Modicon Momentum automation platform |
| Supporting Protocol For Asi | false |
| Supporting Protocol For Devicenet | false |
| Supporting Protocol For Ethercat | false |
| Supporting Protocol For Interbus | false |
| Supporting Protocol For Lon | false |
| Supporting Protocol For Other Bus Systems | false |
| Supporting Protocol For Profinet Cba | false |
| Supporting Protocol For Profisafe | false |
| Supporting Protocol For Sercos | false |
| Sustainable Packaging | No |
| Transmission Rate | 10 Mbit/s |
| Certified For Ul Hazardous Location Class I | false |
| Certified For Ul Hazardous Location Class Iii | false |
| Certified For Ul Hazardous Location Division 2 | false |
| Potential Separation Present | false |
| Radio Standard Egprs | false |
| Height Nominal | 56 mm |
| Appendant Operation Agent (Ex Ia) | false |
| Certified For Ul Hazardous Location Group A (Acetylene) | false |
| Certified For Ul Hazardous Location Group C (Ethylene)) | false |
| Certified For Ul Hazardous Location Group E (Metal Dusts) | false |
| Certified For Ul Hazardous Location Group G (Non Conductive Dust) | false |
| Performance Level According To En Iso 13849-1 | none |
| Radio Standard Wi-fi 802.11 | false |
| Supporting Protocol For Data-highway | false |
| Supporting Protocol For Interbus-safety | false |
| Wall Mounting/Direct Mounting Possible | true |
| Package Weight(Lbs) | 251.000 g |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Certificate Agency | UL, FM Class 1 Division 2, CSA |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | N |
| Device Type | PLC System - PLC Component |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 4 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Front Installation Possible | true |
| Network Type | DC |
| Product Availability | Stock - Normally stocked in distribution facility |
| Protective Treatment | TC |
| Radio Standard Gprs | false |
| Radio Standard Umts | false |
| Returnability | Yes |
| Supporting Protocol For Can | false |
| Supporting Protocol For Devicenet Safety | false |
| Supporting Protocol For Foundation Fieldbus | false |
| Supporting Protocol For Knx | false |
| Supporting Protocol For Modbus | false |
| Supporting Protocol For Profibus | false |
| Supporting Protocol For Profinet Io | false |
| Supporting Protocol For Safetybus P | false |
| Supporting Protocol For Suconet | false |
| Topology | multidrop, star network |
| Transmission Support Medium | shielded twisted pairs cable |
| Certified For Ul Hazardous Location Class Ii | false |
| Certified For Ul Hazardous Location Division 1 | false |
| Dc Supply Voltage | 24-24 V |
| System Accessory | false |
| Radio Standard Lte | false |
| Width Nominal | 178 mm |
| Appendant Operation Agent (Ex Ib) | false |
| Certified For Ul Hazardous Location Group B (Hydrogen) | false |
| Certified For Ul Hazardous Location Group D (Propane)) | false |
| Certified For Ul Hazardous Location Group F (Carbonaceous Dust) | false |
| Io-link Master Present | false |
| Rack-assembly Possible | true |
| Supporting Protocol For As-interface Safety At Work | false |
| Supporting Protocol For Ethernet/Ip | false |
| Supporting Protocol For Tcp/Ip | false |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8517620090 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Ambient Air Temperature For Operation | 0-60 °C |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | <= 16404.2 ft (5000 m)<= 16404.2 ft (5000 m) |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 95-95 % without condensation |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Mercury Free | Yes |
| Ambient Air Temperature For Storage | -40-85 °C-40-85 °C |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | Ethernet TCP/IP communication adaptor |
|---|
| Range Of Product | Modicon Momentum automation platform |
|---|
ETIM
| ETIM 8 | EC001604 |
|---|
| ETIM 9 | EC001604 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
