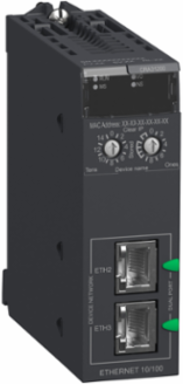

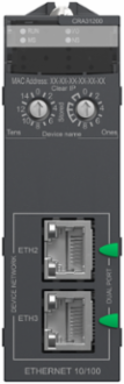

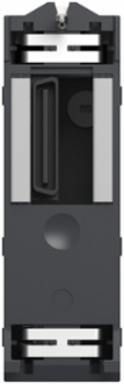

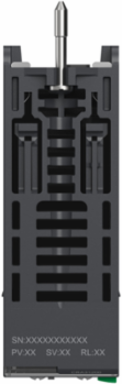

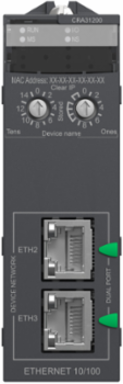

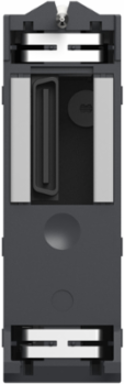

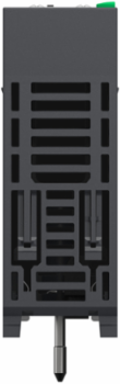

Schneider Electric BMXCRA31200 Modicon X80 Ethernet RIO Drop Adaptor, 2 Port, IP20
- MPN: BMXCRA31200
- PPN: SCH-BMXCRA31200
CAD
$2521.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This Ethernet Remote Input Output (RIO) drop adaptor has 2 ports. Integrated connection is EtherNet/IP for device network. This product is robust, high quality and based on the latest innovative technology. The input data are collected and published to the remote I/O head adaptor and output modules are updated with the data received from remote I/O head adaptor. It is an IP20 rated product. It is suitable for medium to large process applications. This product is certified by CE, Merchant Navy, GOST, C-Tick. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This adaptor is compatible with 0 to 128 discrete channels and 0 to 16 analogue channels. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil
Depth87.5 mm
Communications & Management Attributes
- Communication Service
- Ethernet/IP adapter, RSTP (Ring topology support), Ethernet RIO network, Quality of Service (QoS), CIP Explicit messaging (server), Modbus TCP server for module diagnostics, DHCP client, TFTP client, FTP client, FDR client, SNTP client, SNMP agent
- Communication Port Protocol
- EtherNet/IP
Communication Network TypeIPv4 (internet protocol)
Complementary Attributes
- Integrated Connection Type
- 2 port Ethernet RIO Network (RSTP)
Maximum Altitude Transport3000 m
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Function Available
- CCOTF (configuration change on the fly), input data is collected and published to the remote I/O head adaptor, output modules are updated with the data received from remote I/O head adaptor, diagnostics for remote I/O devices (Device DDT), I/O extension rack
- Certificate Agency
- CE, UL, CSA, RCM, EAC, Merchant Navy
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.4 kg CO2 eq., 0.371765625
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 16 kg CO2 eq., 15.733265625
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Use Carbon Footprint
- 176.592
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Connector Type
- 2 RJ45
- Cybersecurity
- Syslog protocol support
- Device Application
- X80 Ethernet RIO drop adaptor
- Exchange Mode
- half duplex, full duplex, autonegotiation, auto MDIX
- Module Format
- standard
- Number Of Port
- 2
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Specific Application
- for remote I/O modules
- Returnability
- Yes
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 193 kg CO2 eq.
- Pep Code
- ENVPEP2402021EN
- Pep Verification Date
- 2023-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
- Recyclability Potential In %
- 32
- Width Nominal
- 32 mm
- Package Weight(Lbs)
- 229.000 g
- Warranty (In Months)
- 18
- Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]
- 176.592
- Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
- 2434.752
- Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]
- 130.7232
- Terrestrial Eutrophication (Mole Of N Equiv) Operational Energy Use [B6]
- 15583.68
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 3605.568
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 522.3456
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 3605.568
- Water Use (M3 Eq) Operational Energy Use [B6]
- 67435.2
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Local Signalling1 LED (green) for module active (RUN)1 LED (red) for module error (ERR)1 LED (green/red) for module status (Mod Status), 1 LED (green/red) for network communication status (Net Status), 1 LED (green) for Ethernet link diagnostics (STS)
Carbon Footprint Of The Distribution Phase [A4]0.0302068594, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0919578516, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]177 kg CO2 eq., 176.592
Local Publishable Date2026-06-14
Stocking FlagN
Device TypePLC System - PLC Component
TraceabilityYes
Average Life Duration20 year(s)
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2402021EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2438
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Market SegmentationIndustrial
Bus Typebus X across the remote backplane
Current Consumption1200 mA
Data Recording10 ms time stamps
Environmental Characteristicstandard environment
Fixing Modeby screws
Mounting Moderack-mounted
Port Ethernet10/100BASE-TX
Product Or Component TypeI/O expansion module
Range Of ProductModicon X80
Software Versionv5.9.4
Topologyring
Transmission Rate10/100 Mbit/s
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe Ethernet control router enables communication from the control network to the device network. This module as the Modicon M580 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 4.125W (1800 mA at 3.3 V DC).& 10& 10UL 61010-2-201& 10CSA C22.2 No 61010-2-201
Functional-unit UnitUnit
Energy Consumption On Product Lifetime In Kwh312.2064
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
Height Nominal100 mm
Nbr. Of Units In Pkg.1
Take-backNo
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]176.4384
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]3605.568
Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6]21053.76
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]27267.84
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Installation [A5]9572.0625
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]4127.904
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]9572.0625
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]522.3456
Customs Code8517620090
Environment Attributes Main
- Ambient Air Temperature For Operation
- -0-60 °C, -0-60 °C
- Directives
- 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 192.8191959609
- Environmental Disclosure
- ENVPEP2402021EN
- Ip Degree Of Protection
- IP20
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2402021EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Product Compatibility0-128 discrete channel, 0-16 analog channel
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2402021EN
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude<= 6561.68 ft (2000 m)<= 6561.68 ft (2000 m)
Packaging Without Single Use PlasticYes
Relative Humidity95-95 % without condensation
Pep Verification Date2023-11-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- I/O expansion module
Range Of ProductModicon X80
ETIM
- ETIM 8
- EC001423
ETIM 9EC001423
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Input Voltage
- 3.3 V DC
