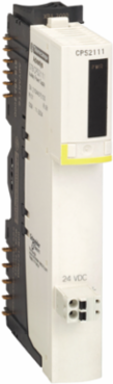

Schneider Electric STBCPS2111K Auxiliary Power Supply Kit for Logic I/O Module, 24V DC, 1.2A
- MPN: STBCPS2111K
- PPN: SCH-STBCPS2111K
- UNSPSC: 32151601
CAD
$236.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This product is part of the Modicon STB range, an offer of modular distributed I/O. This auxiliary power supply kit is for logic I/O module. It is an auxiliary power supply kit with a rated supply voltage of 24V DC, an output current of 1.2A, an input current of 400mA and output voltage of 5.25V ±0.21% logic bus. This product is compatible with most major fieldbus networks. It is furnished with 2-pin removable connector for power supply. It is an IP20 rated product. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by CE, FM Class 1 Division 2, CSA and UL. The kit includes terminal spring clamp connector, terminal screw type connector, STBXBA2100 base and STBCPS2111 module. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
Features
- Adaptable to network
- Simple, open and flexible
- Save time, money by simplifying maintenance, diagnostic task
- Short circuit protection
- IP20 degree of protection
- Wide range of operating temperature from -25°C to 70°C
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France, United States |
|---|
| Depth | 125 mm |
|---|
Complementary Attributes
| Us Rated Supply Voltage | 24 V DC |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM8, SI |
|---|---|
| Kit Composition | terminal spring clamp connector, STBXBA2100 base, STBCPS2111 module, terminal screw type connector |
| Vibration Resistance | +/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz)3 gn 58-150 Hz) on 35 mm DIN rail, 5 gn 58-150 Hz) on 35 mm DIN rail, +/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz) |
| Local Data Status | Publishable |
| Return Indicator | N |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 4 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Electromagnetic Compatibility | immunity to electromagnetic interference IEC 61131-2 |
| Marking | CE |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Modicon STB distributed I/O solution |
| Returnability | No |
| Supply Voltage Limits | 19.2-30 V |
| Housing Color | white |
| Height Nominal | 120 mm |
| Max. Input Current Dc | 0.4 A |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Persona Type Names | End User, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Protection Type | reverse polarity, short-circuit, overload |
| Certificate Agency | CSA, FM Class 1 Division 2, UL |
| Local Publishable Date | 2025-07-09 |
| Device Type | Automation - Distributed inputs/ouputs |
| Traceability | Yes |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1920 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 4 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Electrical Connection | 2 pins for removable connector power supply |
| Local Signalling | 1 LED green PWR power supply |
| Overvoltage Category | II |
| Product Or Component Type | auxiliary power supply kit |
| Redundancy | no |
| Shock Resistance | 30 gn 11 msIEC 88 reference 2-27 |
| Sustainable Packaging | No |
| Input Voltage Dc | 19.2-30 V |
| Width Nominal | 18.4 mm |
| Max. Output Current Dc | 1.2 A |
| Customs Code | 8504409510 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -40-85 °C without derating, -40-85 °C without derating-40-85 °C without derating, -40-85 °C without derating |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | <= 6561.68 ft (2000 m)<= 6561.68 ft (2000 m) |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 95-95 % 60-60 °C without condensation |
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Ambient Air Temperature For Operation | 0-60 °C without derating |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | auxiliary power supply kit |
|---|
| Range Of Product | Modicon STB distributed I/O solution |
|---|
ETIM
| ETIM 8 | EC002583 |
|---|---|
| ETIM 10 | EC002583 |
| ETIM 9 | EC002583 |
|---|
Output Attributes
| Output Voltage | 5.25 V +/- 0.21 % logic bus |
|---|
| Output Voltage Type | DC |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Input Current | 400 mA |
|---|
| Input Voltage Type | DC |
|---|
