Schneider Electric

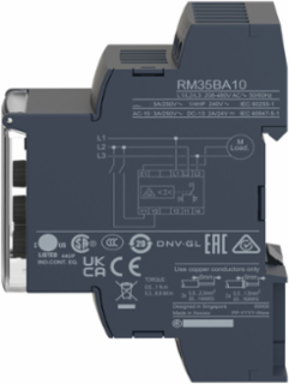

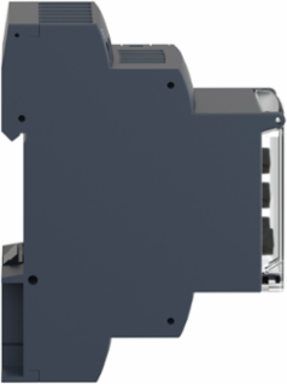

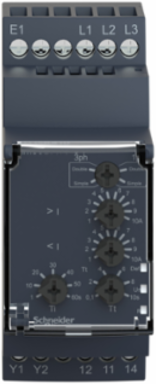

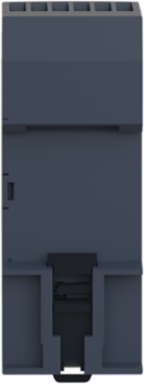

Schneider Electric RM35BA10 Harmony Pump Control Relay, 5A, 208-480V AC, 35mm Width

  • MPN: RM35BA10
  • PPN: SCH-RM35BA10
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $317.35

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Harmony RM35-BA control relay allows monitoring of pump control. This modular pump control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    France, Indonesia, United States

    Complementary Attributes

    Control Circuit Voltage Limits
    - 15 % + 10 % Un- 15 % + 10 % Un
    Maximum Measuring Cycle
    140 ms as true rms value
    Maximum Switching Current
    5 A AC/DC
    Minimum Switching Current
    10 mA 5 V DC
    Line Rated Current5 A
    Maximum Power Consumption In Va5 VA AC
    Maximum Switching Voltage250 V AC/DC

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Insulation Resistance
    > 500 MOhm 500 V DC between supply and relay output 60255-5, > 500 MOhm 500 V DC between supply and relay output 60255-5, > 500 MOhm 500 V DC between supply and relay output 60255-5, > 500 MOhm 500 V DC between supply and relay output 60255-5, > 500 MOhm 500 V DC between supply and relay output 60255-5, > 500 MOhm 500 V DC between measurement and relay output 60664-1, > 500 MOhm 500 V DC between measurement and relay output 60664-1, > 500 MOhm 500 V DC between measurement and relay output 60664-1, > 500 MOhm 500 V DC between measurement and relay output 60664-1, > 500 MOhm 500 V DC between measurement and relay output 60664-1, > 1 MOhm 500 V DC between supply and measurement 60255-5, > 1 MOhm 500 V DC between supply and measurement 60255-5, > 1 MOhm 500 V DC between supply and measurement 60255-5, > 1 MOhm 500 V DC between supply and measurement 60255-5, > 1 MOhm 500 V DC between supply and measurement 60255-5, > 500 MOhm 500 V DC between supply and relay output 60664-1, > 500 MOhm 500 V DC between supply and relay output 60664-1, > 500 MOhm 500 V DC between supply and relay output 60664-1, > 500 MOhm 500 V DC between supply and relay output 60664-1, > 500 MOhm 500 V DC between supply and relay output 60664-1, > 500 MOhm 500 V DC between measurement and relay output 60255-5, > 500 MOhm 500 V DC between measurement and relay output 60255-5, > 500 MOhm 500 V DC between measurement and relay output 60255-5, > 500 MOhm 500 V DC between measurement and relay output 60255-5, > 500 MOhm 500 V DC between measurement and relay output 60255-5, > 1 MOhm 500 V DC between supply and measurement 60664-1, > 1 MOhm 500 V DC between supply and measurement 60664-1, > 1 MOhm 500 V DC between supply and measurement 60664-1, > 1 MOhm 500 V DC between supply and measurement 60664-1, > 1 MOhm 500 V DC between supply and measurement 60664-1> 500 MOhm 500 V DC between supply and relay output 60255-5, > 500 MOhm 500 V DC between supply and relay output 60255-5, > 500 MOhm 500 V DC between supply and relay output 60255-5, > 500 MOhm 500 V DC between supply and relay output 60255-5, > 500 MOhm 500 V DC between supply and relay output 60255-5, > 500 MOhm 500 V DC between measurement and relay output 60664-1, > 500 MOhm 500 V DC between measurement and relay output 60664-1, > 1 MOhm 500 V DC between supply and measurement 60255-5, > 1 MOhm 500 V DC between supply and measurement 60255-5
    Measurement Accuracy
    +/- 10 % of the full scale value, +/- 10 % of the full scale value
    Measurement Range
    208...480 V AC, 1...10 A
    Relay Monitored Parameters
    overcurrent and undercurrent control, phase sequence on 3-phase supply, phase failure on 3-phase supply
    Response Time
    < 300 ms (in the event of a fault), < 300 ms (in the event of a fault)< 300 ms (in the event of a fault), < 300 ms (in the event of a fault)
    Utilisation Category
    AC-12 IEC 60947-5-1, AC-13 IEC 60947-5-1, AC-14 IEC 60947-5-1, AC-15 IEC 60947-5-1, DC-12 IEC 60947-5-1, DC-13 IEC 60947-5-1
    [Uc] Control Circuit Voltage
    208...480 V, 230 V
    Connections - Terminals
    screw terminals, 1 x 0.5...1 x 4 mm² 20 AWG...11 AWG) solid without cable endscrew terminals, 2 x 0.5...2 x 2.5 mm² 20 AWG...14 AWG) solid without cable endscrew terminals, 1 x 0.2...1 x 2.5 mm² 24 AWG...12 AWG) flexible with cable endscrew terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) flexible with cable end, screw connectors
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0.2 kg CO2 eq., 0.23091121291448516
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    8 kg CO2 eq., 8.282465095986037
    Local Data Status
    Publishable
    Return Indicator
    Y
    Weee Scope
    Out
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI1601004EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1918
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Standard
    Compatibility Code
    RM3
    Control Type
    without test button
    Electrical Durability
    100000 cycles
    Housing Material
    polycarbonate
    Immunity To Microbreaks
    500 ms
    Mounting Support
    35 mm symmetrical DIN rail conforming to IEC 60715
    Overvoltage Category
    III conforming to IEC 60664-1
    Product Or Component Type
    pump control relay
    Range Of Product
    Harmony Control Relays
    Relay Type
    pump control relays
    Resistance Across Terminals
    0.01 Ohm E1-L2 terminals
    Shock Resistance
    15 gn 11 ms IEC 60255-21-1
    Supply Frequency
    50/60 Hz +/- 10 %
    Sustainable Packaging
    Yes
    Tightening Torque
    0.6-1 N.m IEC 60947-1
    Total Lifecycle Carbon Footprint
    102 kg CO2 eq.
    Pep Code
    ENVPEP1601004EN
    Pep Verification Date
    2025-02-23
    Psr Version
    PSR-0005-ed2-2016 03 29
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime In Y
    10
    Energy Model - Installation [A5]
    Electricity Mix; Production mix; Low voltage; UE-27
    Energy Model - End Of Life [C1-c4]
    Electricity Mix; Production mix; Low voltage; UE-27
    Width Nominal
    35 mm
    Run-up Delay At Power-up
    0.5 s
    Package Weight(Lbs)
    123.0 g
    Warranty (In Months)
    18
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    MarkingCE : EMC 89/336/EEC, CE : 73/23/EEC
    Measurement Error+/- 0.05 %/°C, 1 % by volt over the whole range, +/- 0.05 %/°C
    Operating Rate<= 360 operations/hour full load, <= 360 operations/hour full load<= 360 operations/hour full load, <= 360 operations/hour full load
    Repeat Accuracy+/- 1 % input and measurement circuit, +/- 1 % input and measurement circuit, +/- 1 % time delay, +/- 1 % time delay+/- 1 % input and measurement circuit, +/- 1 % input and measurement circuit, +/- 1 % time delay
    Status Led1 LED Green power ON1 LED Yellow fault, 1 LED Yellow relay ON
    Certificate AgencyC-tick, CSA, GOST, UL, GL
    [Us] Rated Supply Voltage208...480 V AC 50/60 Hz, non self-powered, 230 V AC 50/60 Hz, non self-powered
    Carbon Footprint Of The Distribution Phase [A4]0.016084271378708548, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.03990970767888307, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]94 kg CO2 eq., 93.82239999999997
    Local Publishable Date2026-01-12
    Stocking FlagY
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Contacts Type And Composition1 C/O
    Dielectric Strength2 kV AC 50 Hz shock wave 4 kV)
    Electromagnetic Compatibilityemission standard for industrial environments IEC 61000-6-4emission standard for residential, commercial and light-industrial environments IEC 61000-6-3immunity for industrial environments NF EN/IEC 61000-6-2
    Hysteresis5-5 % threshold
    Mechanical Durability30000000 cycles
    Operating Positionany position
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Product Specific Applicationfor 3-phase and single-phase pump
    Relay NameRM35BA
    Reset Time2000 ms
    ReturnabilityYes
    Software Versionv5.9.4
    Supply Voltage Limits183-528 V AC
    Switching Capacity In Va1250 VA
    Time Delay Typeadjustable 1...60 s, +/- 10 % Ti- inhibition time delay upon startupadjustable 0.1...10 s, +/- 10 % Tt- time delay upon fault
    Vibration Resistance0.35 mm (f= 5-57.6 Hz) conforming to IEC 60068-2-6/IEC 60255-21-11 gn (f= 57.6-150 Hz) conforming to IEC 60068-2-6/IEC 60255-21-1
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionRM35 relay used to measure and monitor the abnormal operating&amp; 10conditions such as on current, voltage, frequency, phase, speed, temperature and liquid level that the machine will not be allowed to run when a fault is occurred. It allows the user to initiate the necessary corrective actions before serious and costly breakdowns can occur.This product will be in 80% active mode with power consumption of 1W during 10 years of lifetime, adhering to IEC 60255-1 standard.
    Functional-unit UnitUnit
    Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; ID
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
    Recyclability Potential In %8
    [Ui] Rated Insulation Voltage400 V IEC 60664-1
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8536490080

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -20-50 °C, -20-50 °C
    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    102.3917702879581
    Environmental Disclosure
    ENVPEP1601004EN
    Ip Degree Of Protection
    IP20 IEC 60529 terminals)IP30 IEC 60529 casing)
    Packaging Without Single Use Plastic
    Yes
    Relative Humidity
    95-95 % 55-55 °C IEC 60068-2-30
    Pep Verification Date
    2025-02-23
    Psr Version
    PSR-0005-ed2-2016 03 29
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Circularity ProfileENVEOLI1601004EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP1601004EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    pump control relay
    Range Of ProductHarmony Control Relays

    ETIM

    ETIM 8
    EC001440
    ETIM 9EC001440

    Output Attributes

    Nominal Output Current
    5 A
    Output Contacts1 C/O

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Input Attributes

    Input Current
    11 A permanent at 25 °C E1-L2 terminals50 A non repetitive < 1 s at 25 °C E1-L2 terminals
