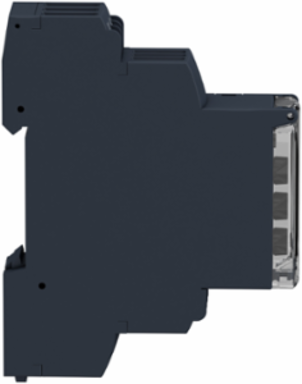

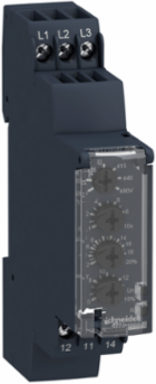

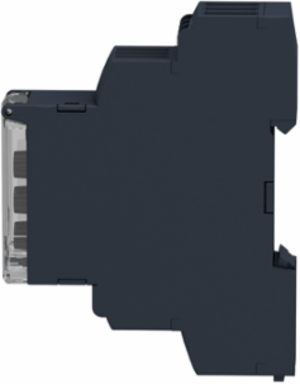

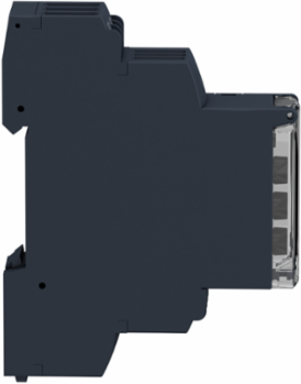

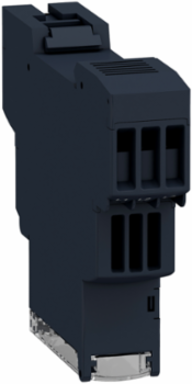

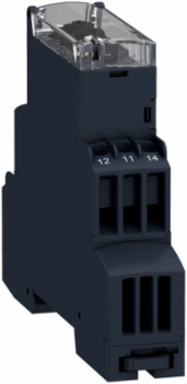

Schneider Electric RM17TE00 3-Phase Control Relay, 5A, 17.5mm Width, 183-528V AC
- MPN: RM17TE00
- PPN: SCH-RM17TE00
CAD
$239.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Harmony Control Monitoring and Control Relays (RM17, RM22, RM35) monitor and detect abnormal operating conditions concerning phase ,current, voltage, frequency, speed, or temperature. The relays inform users of abnormal conditions and allow them to initiate the necessary corrective actions before serious and costly breakdown can occur. Harmony phase control relays detect all possible faults occurring in the phases. Harmony voltage and current control relays ensure your equipment is powered with proper values. Harmony frequency control relay monitors frequency variation from your power generation line. The product monitors its own power supply, when the power supply is abnormal, the output relay de-energizes. Harmony pump control relay controls and protects your pump from dry running or overloading. Harmony speed control relay picks up the improper rhythm of your process. Harmony temperature control relay for lift application is a dedicated to elevator temperature monitoring (EN81). Harmony temperature control relays are dedicated to temperature regulation (heating, cooling or heating/cooling of processes). These Harmony relays are available in 17.5 mm, 22.5 mm or 35 mm wide housings and are DIN rail mounted. Applications for these Harmony relays include hoisting, construction cranes, harbor cranes, packaging, construction elevators, passenger elevators, escalators, textile, water and waste water. 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications

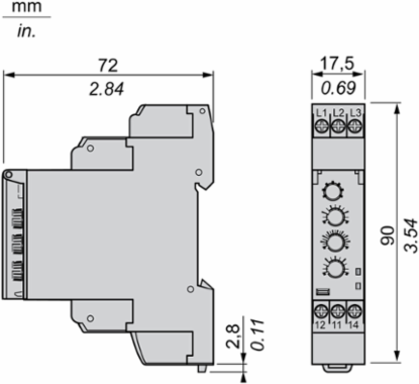

- Width
- 17.5 mm
- Depth
- 72 mm
Country of OriginBrazil, France, Indonesia, Mexico, United States
Complementary Attributes
- Control Circuit Voltage Limits
- - 12 % + 10 % Un, - 12 % + 10 % Un
- Control Circuit Frequency
- 50...60 Hz +/- 10 %
- Maximum Measuring Cycle
- 150 ms measurement cycle as true rms value
- Minimum Switching Current
- 10 mA 5 V DC
Maximum Switching Current5 A AC, 5 A DC
Line Rated Current5 A
Maximum Switching Voltage250 V AC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Insulation Resistance
- > 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60255-5> 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60255-5
- Relay Monitored Parameters
- phase failure detection, undervoltage and overvoltage in window mode, asymmetry, phase sequence, phase failure detection
- Safety Reliability Data
- MTTFd = 502.2 years, B10d = 470000
- Utilisation Category
- AC-12 IEC 60947-5-1, AC-13 IEC 60947-5-1, AC-14 IEC 60947-5-1, AC-15 IEC 60947-5-1
- Certificate Agency
- GOST, C-tick, CSA, UL, GL
- Carbon Footprint Of The Distribution Phase [A4]
- 0.2245281871626276, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.0003402431929488164
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 95 kg CO2 eq., 95.41983755211217
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- Y
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1601001EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1918
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Adjustment Of Asymmetry Threshold
- 5...15 % of Un selected

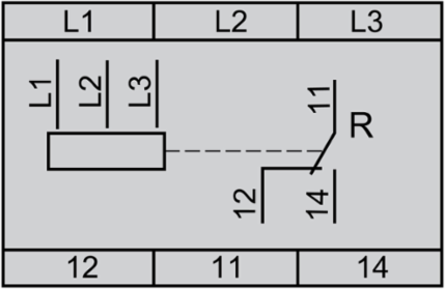

- Contacts Type And Composition
- 1 C/O
- Dielectric Test Voltage
- 2 kV AC 50 Hz, 1 min IEC 60255-5
- Electromagnetic Compatibility
- emission standard for industrial environments conforming to IEC 61000-6-4emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3immunity for industrial environments conforming to IEC 61000-6-2
- Housing Material
- polycarbonate
- Local Signalling
- LED (green) for power ONLED (yellow) for relay ON
- Measurement Range
- 208...480 V AC
- Mechanical Durability
- 30000000 cycles
- Operating Position
- any position without derating
- Phase Failure Sensitivity
- 0.7 Un
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Specific Application
- for 3-phase supply
- Relay Name
- RM17TE
- Reset Time
- 1500 ms time delay
- Software Version
- v6.2-6
- Supply Voltage Limits
- 183-528 V AC
- Switching Capacity In Va
- 1250 VA
- Time Delay Type
- adjustable 0.1...10 s, +/- 10 % of the full scale value Tt- time delay upon fault
- Contacts Composition
- 1 C/O
- Pep Code
- ENVPEP1601001EN
- Pep Verification Date
- 2025-03-09
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- referent product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; Asia Pacific, APAC
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; Asia Pacific, APAC
- Width Nominal
- 17.5 mm
- [Ui] Rated Insulation Voltage
- 400 V IEC 60664-1
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
- 0.18
- Customs Code
- 8536490075
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Measurement Error< 0.05 %/°C with temperature variation, < 0.05 %/°C with temperature variation, < 1 % over the whole range with voltage variation, < 1 % over the whole range with voltage variation< 0.05 %/°C with temperature variation, < 0.05 %/°C with temperature variation, < 1 % over the whole range with voltage variation, < 1 % over the whole range with voltage variation
Response Time< 200 ms (in the event of a fault), < 200 ms (in the event of a fault)< 200 ms (in the event of a fault), < 200 ms (in the event of a fault)
Threshold Adjustment Voltage-2...-17 % in the range 220 V AC, +2...+10 % in the range 480 V AC, -2...-12 % in the range 208 V AC, 2...20 % of Un selected, -2...-17 % in the range 220 V AC, +2...+10 % in the range 480 V AC, -2...-12 % in the range 208 V AC
Vibration Resistance0.35 mm (f= 5-57.6 Hz) conforming to IEC 60068-2-6, 1 gn (f= 57.6-150 Hz) conforming to IEC 60255-21-1
Connections - Terminalsscrew connectors, screw terminals, 1 x 0.5...1 x 4 mm² 20 AWG...11 AWG) solid without cable endscrew terminals, 2 x 0.5...2 x 2.5 mm² 20 AWG...14 AWG) solid without cable endscrew terminals, 1 x 0.2...1 x 2.5 mm² 24 AWG...12 AWG) flexible with cable endscrew terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) flexible with cable end
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.205285316128549, 0.2 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 kg CO2 eq., 1.722847623721569
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Compatibility CodeRM17
Control Typewithout test button
Electrical Durability100000 cycles
Functionalityundervoltage and overvoltage in window mode
Hysteresis2-2 %
MarkingCE
Measurement Voltage Limits183-528 V AC
Mounting Support35 mm symmetrical DIN rail conforming to IEC 60715
Overvoltage CategoryIII conforming to IEC 60664-1
Power Consumption In Va0-22 VA 400 V AC 50 Hz
Product Or Component Type3-phase control relay
Range Of ProductHarmony Control Relays
Relay Typemultifunction control relay
ReturnabilityYes
Supply Frequency50/60 Hz +/- 10 %
Sustainable PackagingYes
Tightening Torque0.6-1 N.m IEC 60947-1
Total Lifecycle Carbon Footprint98 kg CO2 eq.
Measurement Range 4208...480 V AC
Database Version2024-04
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionHarmony RM17-TE relay allows monitoring of power supply circuits in 3-phase networks. This modular multi function 3-phase supply control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It works with power consumption of 2.7 W in 80% active mode with life span of 10 years.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Indonesia, ID
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Asia Pacific, APAC
Height Nominal90 mm
[Uc] Control Circuit Voltage208...480 V
[Us] Rated Supply Voltage, self-powered, self-powered
Package Weight(Lbs)88.000 g
Warranty (In Months)18
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]0.18
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-70 °C, -40-70 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 97.57283892231787
- Circularity Profile
- ENVEOLI1601001EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1601001EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Directives89/336/EEC - electromagnetic compatibility, 73/23/EEC - low voltage directive
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation-20-50 °C-20-50 °C
Environmental DisclosureENVPEP1601001EN
Ip Degree Of ProtectionIP20 IEC 60529 terminals)IP30 IEC 60529 casing)
Packaging Without Single Use PlasticYes
Relative Humidity95-95 % 55-55 °C IEC 60068-2-30
Pep Verification Date2025-03-09
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- 3-phase control relay
Range Of ProductHarmony Control Relays
ETIM
- ETIM 8
- EC001441
ETIM 9EC001441
Output Attributes
- Nominal Output Current
- 5 A
Output Contacts1 C/O
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
