Safety Module for Single-Beam Photo-Electric Sensors - 24 V DC, Built-in Muting Function
Schneider Electric

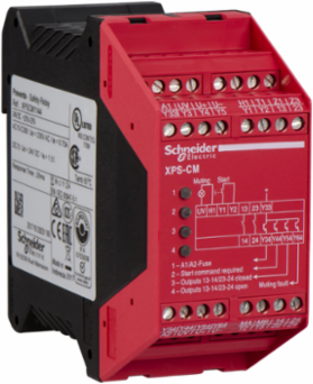

Schneider Electric XPSCM1144 Safety Module for Single-Beam Photo-Electric Sensors - 24 V DC, Built-in Muting Function

  • MPN: XPSCM1144
  • PPN: SCH-XPSCM1144
  • UNSPSC: 32151802
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $1224.18

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This XPSCM safety module is for monitoring of single-beam photo-electric sensors and has a built-in "muting" function. It meets the requirements of PL c/Category 2 conforming to EN/ISO 13849-1.and SILCL1 conforming to EN/IEC 61508 and EN/IEC 62061. Used in conjunction with XU2S single-beam photo-electric sensors (periodically tested), it establishes a category 2 light curtain conforming to IEC/EN 61496 parts 1 and 2.

    Documentation & Downloads

    Specifications

    Key Specifications

    [Us] Rated Supply Voltage
    24 V DC - 20...20 %
    Product Or Component Type
    safety module
    Safety Module Name
    XPSCM
    Connections - Terminals
    captive screw clamp terminals, 1 x 0.14...1 x 2.5 mm² solid or flexible without cable end || captive screw clamp terminals, 1 x 0.25...1 x 1.5 mm² flexible with cable end, with bezel || captive screw clamp terminals, 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezel || captive screw clamp terminals, 2 x 0.14...2 x 0.75 mm² solid or flexible without cable end || captive screw clamp terminals, 2 x 0.25...2 x 1 mm² flexible with cable end, without bezel || captive screw clamp terminals, 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel
    Number Of Additional Circuits
    0
    Safety Module Application
    for monitoring of single beam photo-electric sensor
    Function Of Module
    built-in muting
    Range Of ProductTelemecanique Safety light curtains XUSL
    Number Of Inputs2 MA, MB)muting function || 4 Z1, Z2, Z3, Z4)sensor
    Output Typerelay 2 NO 13-14, 23-24), volt-free
    Input CompatibilityXC limit switch muting function || XU2M18PP340... muting function || XU2S18PP340... (infrared) sensor || XU9M18PP340... muting function
    Input Voltage24 V DCsensor || 24 V DC U+, U-)muting function
    Safety Reliability DataMTTFd = 16.6 years EN/ISO 13849-1 || DC = 95.5 % EN/ISO 13849-1 || PFH = 3.12E-7 1/h EN/IEC 61508 || PFHd = 3.12E-7 1/h EN/IEC 62061
    Safety Levelcan reach category 2 with the appropriate control system and correctly wired EN/ISO 13849-1 || can reach SILCL 1 with the appropriate control system and correctly wired EN/IEC 62061 || can reach PL = c with the appropriate control system and correctly wired EN/ISO 13849-1

    Complementary

    Muting Maximum Duration
    60 s - 10...30 %)
    Power Consumption In W
    15 W
    Minimum Output Current
    10 mA relay output
    Associated Fuse Rating
    4 A gG relay output DIN VDE 0660 part 200 || 4 A gG relay output EN/IEC 60947-5-1 || 6 A fast blow relay output DIN VDE 0660 part 200 || 6 A fast blow relay output EN/IEC 60947-5-1
    Local Signalling
    1 LED electronic internal fuse status || 1 LED restarting || 1 LED safety outputs closed || 1 LED safety outputs open || 1 incandescent lamp muting 4-6.5 W
    Sensor Power Supply
    U+, U- 24-24 V DC
    Maximum Supply Current For Sensors
    200 mA
    Synchronisation Time Between Inputs
    3 s +/- 20 %) for the activation of the MA/MB muting signal
    Maximum Response Time On Input Open
    25 ms
    Output Thermal Current5.6 A per relay || 11 A maximum
    Minimum Output Voltage17 V relay output
    Input Current200 mA muting function
    [Uimp] Rated Impulse Withstand Voltage4 kV III DIN VDE 0110 parts 1 and 2 || 4 kV III EN/IEC 60947-5-1
    [Ui] Rated Insulation Voltage300 V 2)DIN VDE 0110 parts 1 and 2 || 300 V 2)EN/IEC 60947-5-1
    Maximum Line Resistance10 Ohm sensor power supply
    Protection Typeelectronic internal fuse
    Breaking Capacity20 mA 24 V solid state output || 1.5 A 24 V DC-13)50 ms relay output

    Environment

    Ambient Air Temperature For Operation
    -10-55 °C
    Ambient Air Temperature For Storage
    -25-85 °C
    Ip Degree Of ProtectionIP20 IEC 60529 terminals) || IP40 IEC 60529 enclosure)

    Contractual warranty

    Warranty
    18 months

    Offer Sustainability

    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP1406024EN
    Pvc Free
    Yes
    California Proposition 65
    WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    China Rohs Regulation
    X
    Eu Rohs Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
