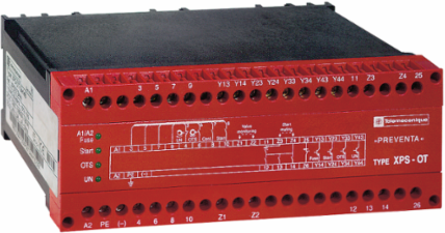

Telemecanique Sensors XPSOT3444 Preventa Safety Module with Automatic Overtravel, 115V AC, IP40, 1.1 kg

Preventa Safety Module with Automatic Overtravel, 115V AC, IP40, 1.1 kg
  • MPN: XPSOT3444
  • PPN: SCH-XPSOT3444

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$2481.00/ EA

Description

Engineered for utmost safety in automated environments, the Schneider Electric XPSOT3444 Preventa Safety Module is a pivotal component designed to excel in stop-at-top-dead-center applications. Operating at 115 V AC and featuring a compact design with a width of 200 mm, this safety relay ensures reliable performance while prioritizing user protection in industrial settings. With its robust construction and advanced functionality, it is an essential tool for maintaining safety standards and enhancing operational efficiency in control systems.

Specifications

Voltage
115 V AC -15% to +15%
Power Consumption
12 VA
Number of Additional Circuits
4 solid state outputs
Thermal Current
2.5 A
Minimum Output Current
10 mA relay output
Maximum Response Time on Input Open
20 ms
Rated Impulse Withstand Voltage
4 kV III IEC 60647-5-1
Height
73 mm
Net Weight
1.1 kg
Mounting Support
35 mm symmetrical DIN rail
IP Degree of Protection
IP10 terminals IEC 60529, IP40 enclosure IEC 60529
Ambient Air Temperature for Storage
-25 to 85 0C
Standards
IEC 692, IEC 60947-5-1, IEC 60204-1
Country of Origin
Indonesia
Mercury Free
Yes
Supply Frequency50/60 Hz
Output TypeRelay, 3 NO, volt-free
Breaking Capacity180 VA holding AC-15 C300 relay output, 1800 VA inrush AC-15 C300 relay output
Fuse Rating4 A gG relay output EN/IEC 60947-5-1
Minimum Output Voltage17 V relay output
Rated Insulation Voltage300 V IEC 60647-5-1
Width200 mm
Depth118 mm
Terminal ConnectionsCaptive screw clamp terminals, 2 x 0.5 to 2 x 1.5 mm² with cable end or 2 x 2.5 mm² without cable end
Enclosure MaterialPolycarbonate
Ambient Air Temperature for Operation-10 to 55 0C
Safety LevelPL e/category 4 ISO 13849-1, SILCL 3 IEC 62061
Product CertificationsCSA, UL, TDCV
Pvc FreeYes
