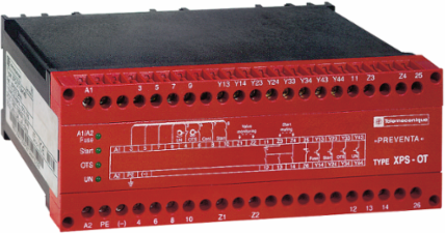

Telemecanique Sensors XPSOT3744 Preventa Safety Module with Automatic Overtravel, 230 V AC, 1.1 kg, 200 mm Width
- MPN: XPSOT3744
- PPN: SCH-XPSOT3744
CAD
$2629.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Preventa Safety Module with Automatic Overtravel, 230 V AC, 1.1 kg, 200 mm Width
Documentation & Downloads
Specifications
Key Specifications
- [Us] Rated Supply Voltage
- 230 V AC - 15...10 %
- Product Or Component Type
- Preventa safety module
- Safety Module Name
- XPSOT
- Output Type
- relay, 3 NO, volt-free
- Safety Reliability Data
- MTTFd = 60.9 years ISO 13849-1 || DC = 0...99 % ISO 13849-1 || PFHd = 1.33E-8 1/h IEC 62061
- Safety Level
- can reach PL e/category 4 ISO 13849-1 || can reach SILCL 3 IEC 62061
Range Of ProductPreventa Safety automation
Enclosure Typeremovable
Number Of Additional Circuits4 solid state outputs
Safety Module Applicationsafety stop with automatic overtravel monitoring and control
Function Of Modulesafety stop with automatic overtravel monitoring and control
Complementary
- Height
- 73 mm
- Minimum Output Voltage
- 17 V relay output
- [Ith] Conventional Free Air Thermal Current
- 2.5 A
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV III IEC 60647-5-1, DIN VDE 0110 part 1
- Connections - Terminals
- captive screw clamp terminals, 2 x 0.5...2 x 1.5 mm² with cable end || captive screw clamp terminals, 2 x 2.5 mm² without cable end
- Power Consumption In Va
- 12 VA
- Number Of Terminal Blocks
- 42
- Enclosure Material
- polycarbonate
- Depth
- 118 mm
- Supply Frequency
- 50/60 Hz
- Breaking Capacity
- 180 VA holding AC-15 C300 relay output || 1800 VA inrush AC-15 C300 relay output
Mounting Support35 mm symmetrical DIN rail
Minimum Output Current10 mA relay output
Associated Fuse Rating4 A gG relay output EN/IEC 60947-5-1, DIN VDE 0660 part 200
Net Weight1.1 kg
[Ui] Rated Insulation Voltage300 V 2)IEC 60647-5-1, DIN VDE 0110 part 1
Local Signalling4 LEDs
Input Protection Typeinternal, electronic
Width200 mm
Breaking Capacity10 mA 48 V solid state output circuit || 20 mA 24 V solid state output circuit || 1.5 A 24 V DC-13)50 ms relay output
Maximum Response Time On Input Open20 ms
Environment
- Product Certifications
- CSA || UL || TÜV
- Standards
- IEC 60947-5-1 || IEC 692 || IEC 60204-1
- Ambient Air Temperature For Storage
- -25-85 °C
Ambient Air Temperature For Operation-10-55 °C
Ip Degree Of ProtectionIP10 terminals)IEC 60529 || IP40 enclosure)IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1408008EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI1408008EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
