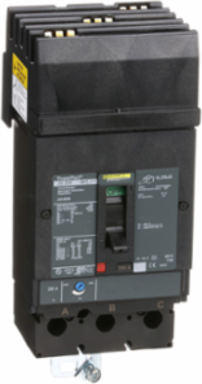

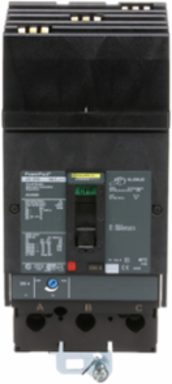

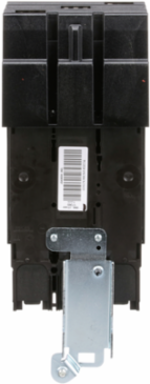

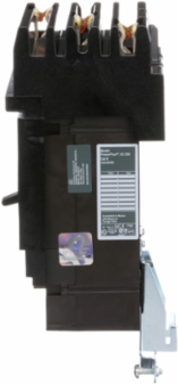

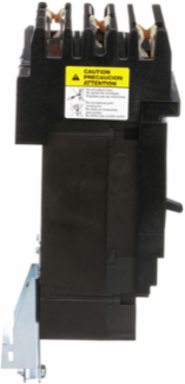

Square D JGA36200 PowerPact J Circuit Breaker 200A 3 Pole 600V AC 18kA I-Line

MPN: JGA36200
UPC: 785901430735
PPN: SCH-JGA36200
UNSPSC: 39121601

$4263.08

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT J I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT J, 200A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. This is an I-line breaker with lugs on OFF end only. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Features

Available in 2 or 3 pole design
Overcurrent protection and switching on AC systems
Common accessories across the range
Easy to install, extremely versatile, a wide variety of terminal options
UL 489 Listed, CSA, NOM, IEC CCC, UKCA, and CE marked
QR codes for easy access to device documentation

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Canada
Depth	86 mm

Weight	3198 g

Communications & Management Attributes

Communication Interface	Modbus, Ethernet

Physical Attributes

Wire Stripping Length	25 mm

Complementary Attributes

Ics Rated Service Breaking Capacity	65 kA 220/240 V AC 50/60 Hz IEC 60947-235 kA 380/440/415 V AC 50/60 Hz IEC 60947-218 kA 500/525 V AC 50/60 Hz IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2
Ue Rated Operational Voltage	600 V AC 50/60 Hz IEC 60947-3
Uimp Rated Impulse Withstand Voltage	8 kV IEC 60947-2

Line Rated Current	200-200 A
Ui Rated Insulation Voltage	750 V IEC 60947-2
Long Time Pick Up Adjustment Range	0.25...1 x In

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Number Of Slots	2 auxiliary switch OF plug-in), 1 alarm switch SD plug-in)1 overcurrent trip switch SDE plug-in)1 voltage release MN or MX plug-in)
Certificate Agency	UL, CSA, NOM
Carbon Footprint Of The End Of Life Phase C1 To C4	5 kg CO2 eq., 5.455152239021136
Carbon Footprint Of The Manufacturing Phase A1 To A3	18 kg CO2 eq., 18.0150448033993
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	Outside of Europe
End Of Life Doc Ref	ENVEOLI2206031_V2
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2539
China Rohs In Scope	No
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Circuit Breaker Application	HACR rated
Control Type	toggle
Electrical Connection	I-Line connection, linelugs, load
Local Signalling	switched off (OFF) 1 trip indicator green)
Magnetic Tripping Current	2000-2000 A
Mounting Support	bracket
Number Of Poles	3P
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	circuit breaker
Range	PowerPact
Software Version	v6.2.4
Sustainable Packaging	No
Tightening Torque	25-25 N.m 95-185 mm² (3/0 AWG...350 kcmil)
Trip Unit Technology	thermal-magnetic
Database Version	2024-01
Height Nominal	191 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Protection Type	overload protection, short-circuit protection
Carbon Footprint Of The Distribution Phase A4	0.9241823213775634, 0.9 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.013609730589982, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	455 kg CO2 eq., 455.2759225258953
Local Publishable Date	2026-03-25
Device Type	LV equipment - Low voltage circuit breaker
Traceability	Yes
Average Life Duration	15 year(s)
Weee Product Category	4
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Awg Gauge	3/0 AWG...350 kcmil aluminium/copper terminals
Continuous Current Rating	80 %
Device Application	distribution
Energy Efficiency Optimized	False
Magnetic Hold Current	1000 A
Mounting Mode	I-Line bracket)
Network Frequency	50/60 Hz
Phase Connection	ABC
Product Name	PowerPact J
Quality Labels	CE
Returnability	Yes
Suitability For Isolation	yes IEC 60947-2
Terminal Identifier	AL250JD
Total Lifecycle Carbon Footprint	480 kg CO2 eq.
Utilisation Category	category A
Data Source	extrapolated product
Width Nominal	104 mm
Customs Code	8536200020
Functional Unit Description	Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional Unit Unit	unit
Recyclability Potential In %	51

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Ambient Air Temperature For Storage	-50-85 °C, -50-85 °C
Take Back	No
Mercury Free	Yes
Circularity Profile	ENVEOLI2206031_V2
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-05-01
Psr Version	PSR-0005-ed3-2023 12 08

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Operating Altitude	< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating5000 m with derating
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	479.6839116202832
Environmental Disclosure	ENVPEP2206031EN
Ip Degree Of Protection	front cover IP40
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2206031EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
