PowerPact J Circuit Breaker, 250A, 3 Pole, 600VAC, Micrologic 3.2
Schneider Electric

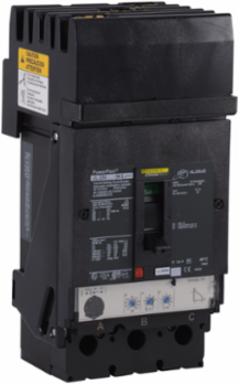

Schneider Electric JLA36250U31X PowerPact J Circuit Breaker, 250A, 3 Pole, 600VAC, Micrologic 3.2

  • MPN: JLA36250U31X
  • PPN: SCH-JLA36250U31X
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    The PowerPact™ J-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. J-frame circuit breakers are available with either thermal-magnetic or Micrologic™ electronic trip units. The amperage ratings of the thermal trip elements are calibrated at 104°F (40°C) free air ambient temperature. Per the National Electric Code® (NEC®) and the Canadian Electrical Code, standard circuit breakers may only be applied continuously at up to 80% of their rating. This PowerPact J, circuit breaker and is 3-pole and has a breaking capacity of 125kA@240VAC and has a rated current of 250A This ia a I-Line breaker and complies to UL listed, IEC, CSA, UL listed & CCC standards. With an electrinic trip unit it has an LI function and an ABC Phase Connectiion. Dimensions for this product are 11.48 in (H),4.48 in (W), 5.87 in (D) with an ambient temperature rating of 40 °C This product comes with an 18 month warranty.

    Documentation & Downloads

    Specifications

    Key Specifications

    Product Or Component Type
    circuit breaker

    Complementary

    Mounting Mode
    I-Line bracket)
    Terminal Identifier
    AL250JD
    Trip Unit Technology
    electronic, standard, MicroLogic 3.2, LI
    Height
    191 mm
    Tightening Torque
    25-25 N.m 95-185 mm² AWG 3/0...350 kcmil)
    Breaking Capacity Code
    L
    Number Of Slots
    2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
    Mounting Height
    4.5 in
    [Uimp] Rated Impulse Withstand Voltage
    8 kV IEC 60947-2
    Circuit Breaker Application
    HACR rated
    [In] Rated Current
    250-250 A
    Long Time Pick-Up Adjustment Range
    0.25...1 x In
    Breaking Capacity
    125 kA 240 V AC 50/60 Hz UL 489 || 100 kA 480 V AC 50/60 Hz UL 489 || 50 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 50 kA 500 V DC UL 489
    Suitability For Isolation
    yes IEC 60947-2
    Poles Description
    3P
    Awg Gauge
    AWG 3/0...350 kcmil aluminum/copper terminals
    Depth
    86 mm
    Network Frequency50/60 Hz
    [Ics] Rated Service Breaking Capacity125 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 100 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 50 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
    Trip Unit NameMicroLogic 3.2
    [Ue] Rated Operational Voltage600 V AC 50/60 Hz IEC 60947-3
    Mounting Supportbracket
    Local Signallingready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm 1 LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
    Electrical ConnectionI-Line connection, line || lugs, load
    Net Weight2.4 kg
    Control Typetoggle
    Wire Stripping Length25 mm
    Utilisation Categorycategory A
    Continuous Current Rating80 %
    [Ui] Rated Insulation Voltage750 V IEC 60947-2
    Communication InterfaceModbus
    Protection Typeoverload protection || short-circuit protection
    Width104 mm
    Phase ConnectionABC

    Offer Sustainability

    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP2206032EN
    Pvc Free
    Yes
    China Rohs Regulation
    Product out of China RoHS scope. Substance declaration for your information
    Eu Rohs Directive
    Compliant with Exemptions
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Circularity ProfileENVEOLI2206032EN

    Environment

    Ambient Air Temperature For Operation
    -25-70 °C
    Product Certifications
    UL || CSA || NOM
    Pollution Degree
    3
    Quality Labels
    CE
    StandardsUL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
    Ip Degree Of Protectionfront cover IP40
    Ambient Air Temperature For Storage-50-85 °C
    Operating Altitude< 2000 m without derating || 5000 m with derating
