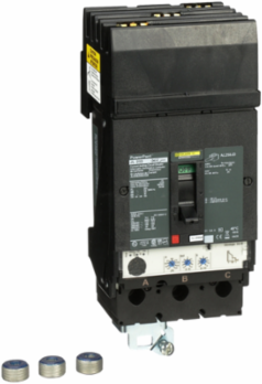

Square D JLA36250U33X PowerPact J Circuit Breaker 250A 3-Pole 600VAC 50kA I-Line
- MPN: JLA36250U33X
- UPC: 785901951124
- PPN: SCH-JLA36250U33X
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides Micrologic Standard with a 3.2S trip unit and an LSI function with a breaking capacity of 50kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT J I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT J, 250A, 3 pole, circuit breaker has a breaking capacity of 50kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth86 mm
Communications & Management Attributes
- Communication Interface
- Modbus
Physical Attributes
- Wire Stripping Length
- 25 mm
Complementary Attributes
- Line Rated Current
- 250-250 A
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Signalling
- ready 1 LED green), alarm 1 LED 90 % Ir orange)alarm 1 LED 105 % Ir red)switched off (OFF) 1 trip indicator green)
- Protection Type
- overload protection, short-circuit protection
- [Ics] Rated Service Breaking Capacity
- 125 kA 220/240 V AC 50/60 Hz IEC 60947-2100 kA 380/440/415 V AC 50/60 Hz IEC 60947-250 kA 500/525 V AC 50/60 Hz IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 6 kg CO2 eq., 5.77847560931678
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 27 kg CO2 eq., 26.773750210591515
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Serviceability
- Yes
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- End Of Life Doc Ref
- ENVEOLI2206032_V2
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2539
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Awg Gauge
- 3/0 AWG...350 kcmil aluminium/copper terminals
- Continuous Current Rating
- 80 %
- Electrical Connection
- I-Line connection, linelugs, load
- Mounting Mode
- I-Line bracket)
- Network Frequency
- 50/60 Hz
- Phase Connection
- ABC
- Product Or Component Type
- circuit breaker
- Returnability
- Yes
- Suitability For Isolation
- yes IEC 60947-2
- Terminal Identifier
- AL250JD
- Total Lifecycle Carbon Footprint
- 567 kg CO2 eq.
- Trip Unit Technology
- electronic, standard, MicroLogic 3.2 S, LSI
- Pep Code
- ENVPEP2206032EN
- Pep Verification Date
- 2025-05-01
- Psr Version
- PSR-0005-ed3-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; United States, US
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential In %
- 49
- Width Nominal
- 104 mm
- [Ui] Rated Insulation Voltage
- 750 V IEC 60947-2
- Long Time Pick-up Adjustment Range
- 0.25...1 x In
- Package Weight(Lbs)
- 3.629 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Number Of Slots2 auxiliary switch OF plug-in), 1 alarm switch SD plug-in)1 overcurrent trip switch SDE plug-in)1 voltage release MN or MX plug-in)
Certificate AgencyUL, CSA, NOM
Carbon Footprint Of The Distribution Phase [A4]1.048735973820881, 1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.026383249126671605, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]533 kg CO2 eq., 533.455680123684
Local Publishable Date2025-11-13
Stocking FlagY
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Circuit Breaker ApplicationHACR rated
Control Typetoggle
Energy Efficiency OptimizedFalse
Mounting Supportbracket
Number Of Poles3P
Product AvailabilityStock - Normally stocked in distribution facility
Quality LabelsCE
Software Versionv6.2.4
Sustainable PackagingNo
Tightening Torque25-25 N.m 95-185 mm² (3/0 AWG...350 kcmil)
Trip Unit NameMicroLogic 3.2 S
Utilisation Categorycategory A
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh1108.6875
Energy Model - Installation [A5][A5]
Energy Model - End Of Life [C1-c4][C1 - C4]
Height Nominal191 mm
[Ue] Rated Operational Voltage600 V AC 50/60 Hz IEC 60947-3
[Uimp] Rated Impulse Withstand Voltage8 kV IEC 60947-2
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536200020
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Operating Altitude
- < 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating5000 m with derating
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2206032_V2
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-05-01
- Psr Version
- PSR-0005-ed3-2023 12 08
Ambient Air Temperature For Storage-50-85 °C, -50-85 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint567.0830251665399
Environmental DisclosureENVPEP2206032EN
Ip Degree Of Protectionfront cover IP40
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2206032EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- circuit breaker
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Batteries & Runtime Attributes
- Removable Battery
- No
