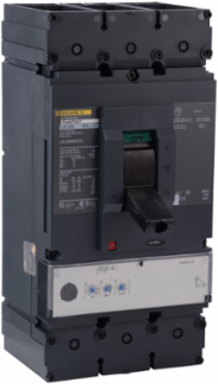

Square D LDL36250CU31X PowerPacT L Circuit Breaker, 250A, 3 Pole, 600VAC, 14kA, MicroLogic 3.3
- MPN: LDL36250CU31X
- UPC: 785901980254
- PPN: SCH-LDL36250CU31X
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This robust circuit breaker from Schneider Electric is designed to provide reliable power distribution and advanced protection for electrical systems. Rated at 250A with a 3-pole configuration, it operates efficiently at 600VAC, ensuring versatility across numerous applications. With a short-circuit interruption capacity of 14kA, it safeguards against electrical faults, maintaining system integrity. The integration of the MicroLogic 3.3 control unit enhances functionality, allowing for precise monitoring and adjustment, making it an essential component for industrial and commercial power management.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC 50/60 Hz IEC 60947-3
- Breaking Capacity
- 25 kA 240 V AC, 18 kA 480 V AC, 14 kA 600 V AC, 20 kA 250 V DC, 20 kA 500 V DC
- Continuous Current Rating
- 100 %
- Trip Unit Technology
- Electronic, MicroLogic 3.3
- Rated Impulse Withstand Voltage
- 8 kV IEC 60947-2
- Utilisation Category
- Category A
- Electrical Connection
- Lugs, line and load
- Height
- 340 mm (13.39 in)
- Depth
- 110 mm (4.33 in)
- Communication Interface
- Modbus, Ethernet
- Standards
- UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- IP Degree of Protection
- Front cover IP40
- Ambient Air Temperature for Operation
- -25...70 °C (-13...158 °F)
- Operating Altitude
- < 2000 m without derating, up to 5000 m with derating
- Sustainable Offer Status
- Green Premium product
- Mercury Free
- Yes
- Warranty
- 18 months
Amperage250 A
Rated Service Breaking Capacity25 kA 220/240 V AC, 18 kA 380/415/440 V AC, 14 kA 500/525 V AC, 20 kA 250 V DC, 20 kA 500 V DC IEC 60947-2
Poles3
Rated Insulation Voltage750 V IEC 60947-2
Suitability for IsolationYes IEC 60947-2
Wire Stripping Length31 mm (1.22 in)
Mounting ModeUnit mount lug
Width140 mm (5.51 in)
Net Weight6.2 kg (13.67 lb)
Circuit Breaker ApplicationHACR rated
Product CertificationsUL, CSA, NOM
Pollution Degree3 IEC 60947-1
Ambient Air Temperature for Storage-50...85 °C (-58...185 °F)
Country of OriginUS
RoHS ComplianceCompliant with Exemptions
PVC FreeYes
