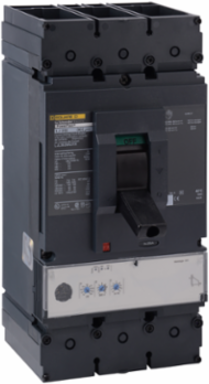

Square D LLL36250U31X PowerPacT L Circuit Breaker, 250A, 3 Pole, 600V AC, 50kA, MicroLogic 3.3
- MPN: LLL36250U31X
- UPC: 785901489481
- PPN: SCH-LLL36250U31X
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Engineered for robust protection and reliability, this Schneider Electric PowerPacT L Circuit Breaker is designed to handle demanding electrical environments with its 250A capacity and 3-pole configuration. Operating at a formidable 600V AC, it efficiently safeguards your systems against overload and short circuit conditions, making it an essential component in power distribution solutions. Its MicroLogic 3.3 technology enhances circuit management, offering precise control and monitoring capabilities, thus ensuring optimal performance for industrial applications. This circuit breaker not only meets stringent safety standards but also provides the durability and efficiency necessary for modern electrical systems.
Documentation & Downloads
Specifications
Additional
- Rated Current
- 250 A
- Voltage
- 600 V AC 50/60 Hz IEC 60947-3
- Rated Service Breaking Capacity
- 125 kA 220/240 V AC, 100 kA 380/440/415 V AC, 50 kA 500/525 V AC, 20 kA 250 V DC, 20 kA 500 V DC IEC 60947-2
- Trip Unit Technology
- Electronic, MicroLogic 3.3
- Rated Insulation Voltage
- 750 V IEC 60947-2
- AWG Gauge
- AWG 2...600 kcmil copper, AWG 2...500 kcmil aluminum
- Electrical Connection
- Lugs, line; Lugs, load

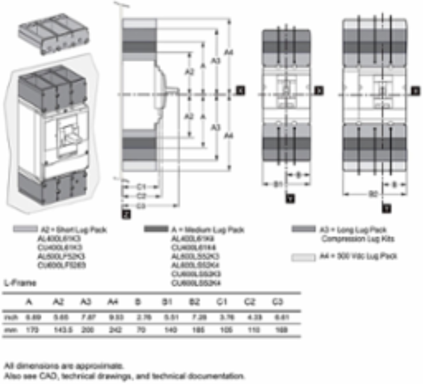

- Height
- 340 mm (13.39 in)
- Depth
- 110 mm (4.33 in)
- Communication Interface
- Modbus, Ethernet
- Standards
- UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- IP Degree of Protection
- Front cover IP40
- Ambient Air Temperature for Operation
- -25 to 70 °C (-13 to 158 °F)
- Operating Altitude
- < 2000 m without derating; 5000 m with derating
- Warranty
- 18 months
- Mercury Free
- Yes
- EU RoHS Directive
- Compliant with Exemptions
Number of Poles3
Breaking Capacity125 kA 240 V AC, 100 kA 480 V AC, 50 kA 600 V AC, 20 kA 250 V DC, 50 kA 500 V DC
Rated Impulse Withstand Voltage8 kV IEC 60947-2
Continuous Current Rating80 %
Protection TechnologyCurrent limiter
Mounting ModeUnit mount lug
Wire Stripping Length31 mm
Width140 mm (5.51 in)
Net Weight6.2 kg (13.67 lb)
Circuit Breaker ApplicationHACR rated
Product CertificationsUL, CSA, NOM
Pollution Degree3 IEC 60947-1
Ambient Air Temperature for Storage-50 to 85 °C (-58 to 185 °F)
Country of OriginUS
Sustainable Offer StatusGreen Premium product
PVC FreeYes
