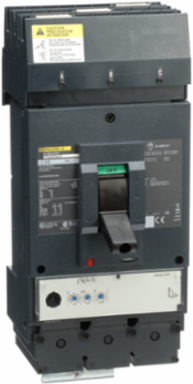

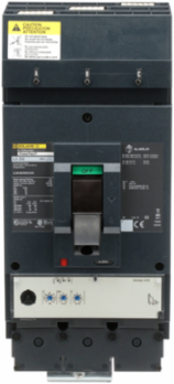

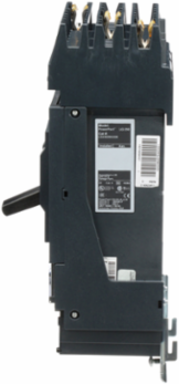

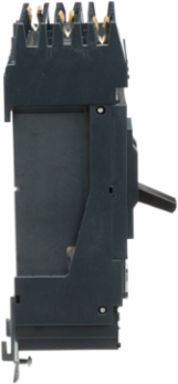

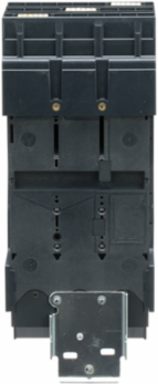

Square D LGA36250U33X PowerPact L Circuit Breaker, 250A, 3-Pole, 600VAC, MicroLogic 3.3S

MPN: LGA36250U33X
UPC: 785901702627
PPN: SCH-LGA36250U33X

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

Looking to buy a large quantity?

To view product inventory

Spec sheet

Compare

Description

PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 250A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3S trip unit and an LSI function. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin: Mexico

Depth110 mm

Communications & Management Attributes

Communication Interface: Modbus, Ethernet

Physical Attributes

Color: Black

Wire Stripping Length31 mm

Complementary Attributes

Line Rated Current: 250-250 A

Important Information Attributes

Persona Type Ids: LC, OM, OM8, PB

Market Segmentation Id: COMMERCIAL, INDUSTRIAL

Awg Gauge: AWG 2...600 kcmil copper, AWG 2...500 kcmil aluminium

Local Signalling: ready 1 LED green), alarm 1 LED 90 % Ir orange), alarm LED 105 % Ir red), switched off (OFF) 1 trip indicator green)

Tightening Torque: 50-50 N.m 35-300 mm² (AWG 2...600 kcmil), 50-50 N.m 35-240 mm² (AWG 2...500 kcmil)

[Ics] Rated Service Breaking Capacity: 65 kA 220/240 V AC 50/60 Hz IEC 60947-2, 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2, 18 kA 500/525 V AC 50/60 Hz IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2

Carbon Footprint Of The End-of-life Phase [C1 To C4]: 12 kg CO2 eq., 11.67639778652332

Carbon Footprint Of The Manufacturing Phase [A1 To A3]: 50 kg CO2 eq., 49.671357924070975

Local Data Status: Publishable

Return Indicator: Y

Stock Policy: 2

Serviceability: Yes

Field Service Division: PPIBS

Weee Scope: In

Scope Perimeter: Outside of Europe

End Of Life Doc Ref: ENVEOLI2206029_V2

Reach Full Compliance Status Id: CONTAINS_SVHC

Rohs Eur In Scope: Yes

Rohs Eur Conformity Date: 2543

China Rohs In Scope: No

Without Single Use Plastic: No

Tier Id: 1

Function Option Id: STANDARD

Product Kit Identifier: N

Continuous Current Rating: 80 %

Device Application: distribution

Energy Efficiency Optimized: False

Mounting Support: bracket

Number Of Poles: 3P

Product Availability: Stock - Normally stocked in distribution facility

Product Or Component Type: circuit breaker

Range: PowerPact

Software Version: v6.2.5-6

Sustainable Packaging: No

Total Lifecycle Carbon Footprint: 805 kg CO2 eq.

Trip Unit Technology: electronic, standard, MicroLogic 3.3 S, LSI

Pep Code: ENVPEP2206029EN

Pep Verification Date: 2026-05-26

Psr Version: PSR-0005-ed3.1-EN-2023 12 08

Data Source: extrapolated product

Functional-unit Quantity: 1

Reference Lifetime, In Y: 20

Energy Model - Installation [A5]: No energy used

Energy Model - End Of Life [C1-c4]: Global, European and French datasets are used.

Height Nominal: 340 mm

[Ue] Rated Operational Voltage: 600 V AC 50/60 Hz IEC 60947-3

[Uimp] Rated Impulse Withstand Voltage: 8 kV IEC 60947-2

Nbr. Of Units In Pkg.: 1

Take-back: No

Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder

Market SegmentationCommercial, Industrial

Electrical ConnectionI-Line connection, line, lugs, load

Number Of Slots2 auxiliary switch OF plug-in), 1 alarm switch SD plug-in), 1 overcurrent trip switch SDE plug-in), 1 voltage release MN or MX plug-in)

Certificate AgencyUL, CSA, NOM

Carbon Footprint Of The Distribution Phase [A4]2.228383327123949, 2 kg CO2 eq.

Carbon Footprint Of The Installation Phase [A5]2.1496401101385745, 2 kg CO2 eq.

Carbon Footprint Of The Use Phase [B2, B3, B4, B6]739 kg CO2 eq., 739.3949682892573

Local Publishable Date2026-01-08

Stocking FlagY

Device TypeLV equipment - Low voltage circuit breaker

TraceabilityYes

Average Life Duration15 year(s)

Weee Product Category5

Eoli Availability DisplayYes

Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold

Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold

Rohs Eur StatusCompliant By Exemption

Rohs Eur Full Compliance StatusCompliant By Exemption

With Recycled CardboardYes

Product Contributes To Saved And Avoided EmissionsNo

Tier1

Function OptionStandard

Circuit Breaker ApplicationHACR rated

Control Typetoggle

Device Short NameL-Frame

Mounting ModeI-Line bracket)

Network Frequency50/60 Hz

Phase ConnectionABC

Product NamePowerPact L

Protection Technologycurrent limiter

ReturnabilityYes

Suitability For Isolationyes IEC 60947-2

Terminal IdentifierAL400L61K3

Trip Unit NameMicroLogic 3.3 S

Utilisation Categorycategory A

Database Version2024-01

Pcr VersionPEP-PCR-ed4-2021 09 06

Type Of Verification For The PepIndependent external review

Functional-unit DescriptionProtect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.

Functional-unit Unitunit

Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; United States, US

Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US

Recyclability Potential, In %58

Width Nominal140 mm

[Ui] Rated Insulation Voltage750 V IEC 60947-2

Long Time Pick-up Adjustment Range0.25...1 x In

Package Weight(Lbs)7.711 kg

Warranty (In Months)18

Environment Attributes Main

China Rohs Regulation: Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.

Ambient Air Temperature For Storage: -50-85 °C, -50-85 °C

Take Back: No

Mercury Free: Yes

Circularity Profile: ENVEOLI2206029_V2

Eu Rohs Directive: Compliant By Exemption

Packaging Made With Recycled Cardboard: Yes

Reach Regulation: Reference contains Substances of Very High Concern above the threshold

Pep Verification Date: 2026-05-26

Psr Version: PSR-0005-ed3.1-EN-2023 12 08

Ambient Air Temperature For Operation-25-70 °C, -25-70 °C

Operating Altitude< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating, 5000 m with derating

Recycled Metal Content At Cr Level0 %

Carbon Footprint805.1207474371142

Environmental DisclosureENVPEP2206029EN

Ip Degree Of Protectionfront cover IP40

Packaging Without Single Use PlasticNo

Pep CodeENVPEP2206029EN

Pcr VersionPEP-PCR-ed4-2021 09 06

Type Of Verification For The PepIndependent external review
