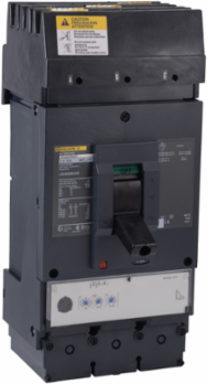

Square D LDA36600U33X PowerPacT L Circuit Breaker 600A 3 Pole 600VAC 14kA MicroLogic 3.3S

MPN: LDA36600U33X
PPN: SCH-LDA36600U33X

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This molded case circuit breaker from Schneider Electric is engineered for robust performance in power distribution applications, featuring a 600A rating and a 3-pole design for comprehensive circuit protection at 600VAC. The LDA36600U33X model is equipped with the MicroLogic 3.3S control unit, which enhances reliability and offers advanced protection features. With a breaking capacity of 14kA, it ensures efficient operation under fault conditions, making it an essential component for industrial settings requiring high performance and safety standards. Designed for ease of integration, this circuit breaker is an ideal choice for managing electrical systems with precision and confidence.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Canada, Mexico, United States

Depth	110 mm

Communications & Management Attributes

Communication Interface	Modbus, Ethernet

Physical Attributes

Color	Black

Wire Stripping Length	31 mm

Complementary Attributes

Line Rated Current	600-600 A

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SC, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Local Signalling	ready 1 LED green), alarm 1 LED 90 % Ir orange)alarm LED 105 % Ir red)switched off (OFF) 1 trip indicator green)
Certificate Agency	UL, CSA, NOM
Carbon Footprint Of The Distribution Phase [A4]	2.228383327123949, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	2.1496401101385745, 2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	1 103 kg CO2 eq., 1103.4111538750699
Local Publishable Date	2025-11-13
Stocking Flag	Y
Device Type	LV equipment - Low voltage circuit breaker
Traceability	Yes
Average Life Duration	15 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Awg Gauge	2 x 2/0 AWG...500 kcmil aluminium/copper
Continuous Current Rating	80 %
Device Application	distribution
Electrical Connection	I-Line connection, linelugs, load
Mounting Mode	I-Line bracket)
Network Frequency	50/60 Hz
Phase Connection	ABC
Product Name	PowerPact L
Protection Technology	current limiter
Returnability	Yes
Suitability For Isolation	yes IEC 60947-2
Terminal Identifier	AL600LF52K3
Total Lifecycle Carbon Footprint	1 169 kg CO2 eq.
Trip Unit Technology	electronic, standard, MicroLogic 3.3 S, LSI
Pep Code	ENVPEP2206029EN
Pep Verification Date	2026-02-08
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Installation [A5]	No energy used
Energy Model - End Of Life [C1-c4]	Global, European and French datasets are used.
Height Nominal	340 mm
[Ue] Rated Operational Voltage	600 V AC 50/60 Hz IEC 60947-3
[Uimp] Rated Impulse Withstand Voltage	8 kV IEC 60947-2
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536200020

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market Segmentation	Commercial, Industrial
Number Of Slots	2 auxiliary switch OF plug-in), 1 alarm switch SD plug-in)1 overcurrent trip switch SDE plug-in)1 voltage release MN or MX plug-in)
[Ics] Rated Service Breaking Capacity	25 kA 220/240 V AC 50/60 Hz IEC 60947-218 kA 380/440/415 V AC 50/60 Hz IEC 60947-214 kA 500/525 V AC 50/60 Hz IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2
Carbon Footprint Of The End-of-life Phase [C1 To C4]	12 kg CO2 eq., 11.67639778652332
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	50 kg CO2 eq., 49.671357924070975
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Serviceability	Yes
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	Outside of Europe
End Of Life Doc Ref	ENVEOLI2206029_V2
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2543
China Rohs In Scope	No
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Circuit Breaker Application	HACR rated
Control Type	toggle
Device Short Name	L-Frame
Energy Efficiency Optimized	False
Mounting Support	bracket
Number Of Poles	3P
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	circuit breaker
Range	PowerPact
Software Version	v6.2.5-6
Sustainable Packaging	No
Tightening Torque	50-50 N.m 70-240 mm² (2 x 2/0 AWG...500 kcmil)
Trip Unit Name	MicroLogic 3.3 S
Utilisation Category	category A
Database Version	2024-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
Functional-unit Description	Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %	58
Width Nominal	140 mm
[Ui] Rated Insulation Voltage	750 V IEC 60947-2
Long Time Pick-up Adjustment Range	0.25...1 x In
Package Weight(Lbs)	7.711 kg
Warranty (In Months)	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Ambient Air Temperature For Storage	-50-85 °C, -50-85 °C
Take Back	No
Mercury Free	Yes
Circularity Profile	ENVEOLI2206029_V2
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2026-02-08
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Operating Altitude	< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating5000 m with derating
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	1169.1369330229265
Environmental Disclosure	ENVPEP2206029EN
Ip Degree Of Protection	front cover IP40
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP2206029EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
