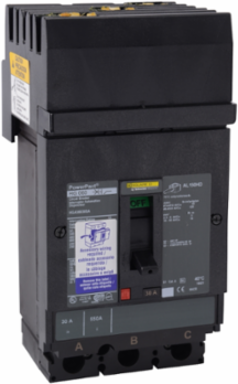

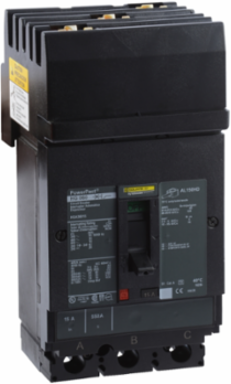

Square D HGA360306 Circuit breaker, PowerPacT H, 30A, 3 pole, 600VAC, 18kA, I-Line, thermal magnetic, 80%, CBA

MPN: HGA360306
PPN: SCH-HGA360306
UNSPSC: 39121601

$2319.34

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 30A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80% with a CBA phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Features

Available in 2 or 3 pole design
Standard 80% or 100% rating
Available in Unit mount, I-line or Drawout constructions
A wide range of accessories, auxiliaries, and lug connections available
UL 489 Listed, CSA, NEMA, NMX, VDE, BS, CCC, IEC certified, and CE marked

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico, United States
Depth	86 mm

Weight	1814 g

Communications & Management Attributes

Communication Interface	Modbus, Ethernet

Physical Attributes

Color	Black

Wire Stripping Length	16 mm

Complementary Attributes

Ics Rated Service Breaking Capacity	65 kA 220/240 V AC 50/60 Hz IEC 60947-235 kA 380/440/415 V AC 50/60 Hz IEC 60947-218 kA 500/525 V AC 50/60 Hz IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2
Ue Rated Operational Voltage	690 V AC 50/60 Hz IEC 60947-3
Uimp Rated Impulse Withstand Voltage	8 kV IEC 60947-2

Line Rated Current	30-30 A
Ui Rated Insulation Voltage	750 V IEC 60947-2

Important Information Attributes

Number Of Slots	2 auxiliary switch OF plug-in), 1 alarm switch SD plug-in)1 overcurrent trip switch SDE plug-in)1 voltage release MN or MX plug-in)
Certificate Agency	UL, CSA, NOM
Carbon Footprint Of The End Of Life Phase C1 To C4	3 kg CO2 eq., 3.391969932864633
Carbon Footprint Of The Manufacturing Phase A1 To A3	9 kg CO2 eq., 9.231241412339646
Local Data Status	Publishable
Return Indicator	N
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	Outside of Europe
End Of Life Doc Ref	ENVEOLI2206027_V2
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2539
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Awg Gauge	14 AWG...3/0 AWG aluminium/copper terminal
Continuous Current Rating	80 %
Device Application	distribution
Local Signalling	switched off (OFF) 1 trip indicator green)
Magnetic Tripping Current	750-750 A
Mounting Support	bracket
Number Of Poles	3P
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	circuit breaker
Quality Labels	CE
Range	PowerPact
Software Version	v6.2.4
Sustainable Packaging	No
Total Lifecycle Carbon Footprint	191 kg CO2 eq.
Utilisation Category	category A
R Rated Current	30-30 A
Database Version	2024-01
Height Nominal	163 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Tightening Torque	5-5 N.m 2.5-6 mm² (14 AWG...10 AWG), 14-14 N.m 10-95 mm² (8 AWG...3/0 AWG)
Carbon Footprint Of The Distribution Phase A4	0.3812916237468922, 0.4 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.01827056403892661, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	178 kg CO2 eq., 177.65774469630412
Local Publishable Date	2025-11-13
Device Type	LV equipment - Low voltage circuit breaker
Traceability	Yes
Average Life Duration	15 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Product Kit Identifier	N
Circuit Breaker Application	HACR rated
Control Type	toggle
Electrical Connection	I-Line connection, linelugs, load
Magnetic Hold Current	350 A
Mounting Mode	I-Line bracket)
Network Frequency	50/60 Hz
Phase Connection	CBA
Product Name	PowerPact H
Protected Poles Description	3t
Quantity Per Set	1
Returnability	No
Suitability For Isolation	yes IEC 60947-2
Terminal Identifier	AL150HD
Trip Unit Technology	thermal-magnetic
Continuous Current Ratting	80 %
Electrical Connection 66	lugs
Data Source	extrapolated product
Width Nominal	104 mm
Customs Code	8536200020
Functional Unit Description	Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional Unit Unit	unit
Recyclability Potential In %	45

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Operating Altitude	< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating5000 m with derating
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2206027_V2
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-05-01
Psr Version	PSR-0005-ed3-2023 12 08

Ambient Air Temperature For Storage	-50-85 °C, -50-85 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	190.68051822929425
Environmental Disclosure	ENVPEP2206027EN
Ip Degree Of Protection	front cover IP40 IEC 60529
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP2206027EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
