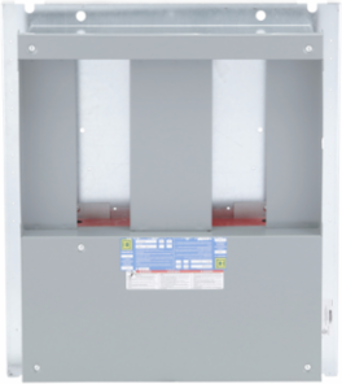

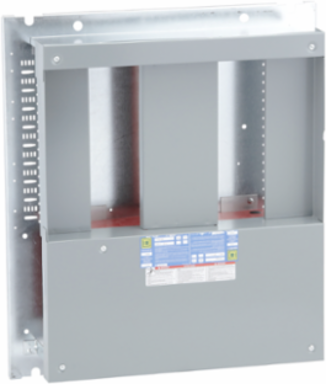

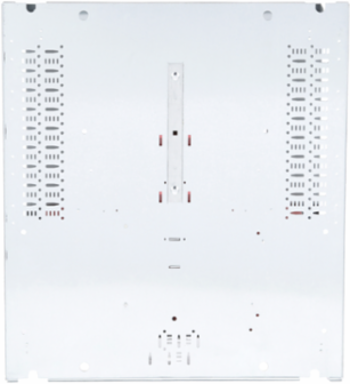

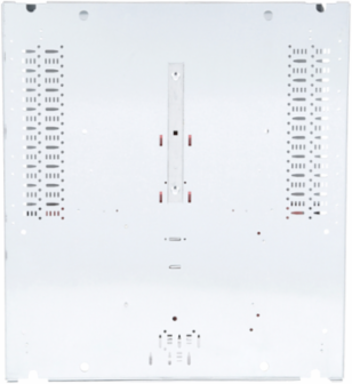

Square D HCJ14484 I-Line Panelboard, 400A, 27 Inch Bar Length, 32W x 48H x 9.5D Box

MPN: HCJ14484
UPC: 785901236375
PPN: SCH-HCJ14484
UNSPSC: 39121103

$1618.58

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The HCJ14484 I-Line Panelboard from Schneider Electric is engineered for high-performance and reliability in demanding electrical environments. This panelboard is rated at 400 amps and features a 27-inch bar length, accommodating various configurations to suit your specific needs. With its robust dimensions of 32 inches in width, 48 inches in height, and a depth of 9.5 inches, it provides ample space for circuit management while ensuring easy installation and maintenance. Designed for efficiency, the I-Line Panelboard is an excellent choice for optimizing electrical distribution in industrial and commercial applications.

Features

600VAC, 250VDC maximum
Fully rated and series rated system available
Dead front trim is easily installed
Factory assembled or ready to install
UL Listed

Documentation & Downloads

Specifications

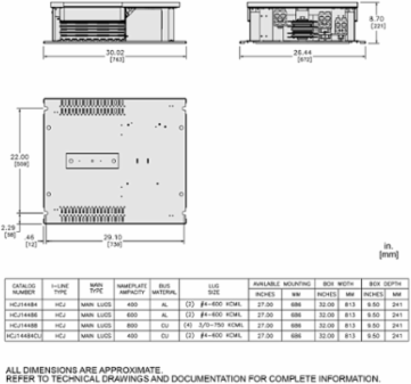

Key Specifications

Country of Origin	United States
Depth	8.7 in

Weight	26308 g

Physical Attributes

Bar Length	27 in

Complementary Attributes

Line Rated Current	400 A

Important Information Attributes

Circuit Breaker Type	B-Frame, J-frame, H-frame, Q-Frame, QO
Carbon Footprint Of The End Of Life Phase C1 To C4	38 kg CO2 eq., 38.19600199536239
Carbon Footprint Of The Manufacturing Phase A1 To A3	155 kg CO2 eq., 155.3730411328632
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2541
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Enclosure Type	distribution enclosure
Load Center Type	main lugs
Material	painted steel
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	interiors
Returnability	Yes
Sustainable Packaging	No
Total Lifecycle Carbon Footprint	487 kg CO2 eq.
Data Source	extrapolated product
Width Nominal	26.44 in
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Carbon Footprint Of The Distribution Phase A4	0, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.06174162242542109, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	293 kg CO2 eq., 293.2702034455146
Local Publishable Date	2025-11-13
Weee Scope	In
Scope Perimeter	Outside of Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Product Kit Identifier	N
Energy Efficiency Optimized	False
Localisation On Device	interior
Phase	3 phase
Product Destination	enclosure HCJ 32 in 48 in 9.5 in
Range Of Product	I-Line
Software Version	v6.2.5-6
Tightening Torque	28.47-28.47 N.m 13.3-151 mm² (6 AWG...300 kcmil)
Database Version	2024-01
Height Nominal	30.02 in
Certificate Agency	cULus
Customs Code	8538100000
Functional Unit Description	Accommodate and protect control, command and protection devices in a single interior panelboard (2184.4 mm x 1066.8 mm x 241.3 mm ) with rated current In = 400 A, degree of protection IP = IP30, degree of protection IK = IK07, for a reference service life of 20 years, in commercial/industrial application. The product is passive (no operational energy use)
Functional Unit Unit	unit
Recyclability Potential In %	78

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Carbon Footprint	486.9009881961656
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2025-11-10
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2509033_V1
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2509033_V1
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
