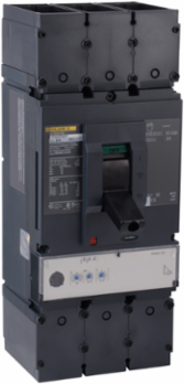

Square D LGL36400U33X PowerPact L Circuit Breaker 400A 3-Pole 600VAC 18kA MicroLogic 3.3S
Square D LGL36400U33X PowerPact L Circuit Breaker 400A 3-Pole 600VAC 18kA MicroLogic 3.3S
- MPN: LGL36400U33X
- UPC: 785901637622
- PPN: SCH-LGL36400U33X
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
PowerPact L-Frame Molded Case Circuit Breaker, LGL36400U33X, are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPact L-frame circuit breakers are available with Micrologic electronic trip units. This breaker is certified to UL, IEC, CE, CSA Standards. Dimensions are 287 mm (H) x 140 mm (W) x 168 mm (D). The parameters to be considered for motor-feeder protection depend on the application (type of machine driven, operating safety, frequency of operation, etc.) As well as the level of continuity of service required by the load or the application and the applicable standards for the protection of equipment. The required electrical functions are isolation, switching, generally at high endurance levels, protection against overloads and short-circuits, adapted to the motor. A motor branch circuit must comply with the requirements of standard UL 508 concerning contactors and their protection.
Specifications
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Product Certifications
- UL || CSA || NOM
- Pollution Degree
- 3 IEC 60947-1
- Operating Altitude
- < 2000 m without derating || 5000 m with derating
StandardsUL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Ip Degree Of Protectionfront cover IP40
Ambient Air Temperature For Storage-50-85 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2206029EN
- Pvc Free
- Yes
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI2206029EN
Complementary
- Mounting Mode
- unit mount lug)
- Terminal Identifier
- AL600LS52K3
- Trip Unit Technology
- electronic, standard, MicroLogic 3.3 S, LSI
- Height
- 340 mm
- Tightening Torque
- 50-50 N.m 70-240 mm² AWG 2/0...500 kcmil)
- Breaking Capacity Code
- G
- Number Of Slots
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Electrical Connection
- lugs, line || lugs, load
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV IEC 60947-2
- Circuit Breaker Application
- HACR rated
- [In] Rated Current
- 400-400 A
- Long Time Pick-Up Adjustment Range
- 0.25...1 x In
- Breaking Capacity
- 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
- Suitability For Isolation
- yes IEC 60947-2
- Poles Description
- 3P
- Colour
- black
- Depth
- 110 mm
Network Frequency50/60 Hz
[Ics] Rated Service Breaking Capacity65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Trip Unit NameMicroLogic 3.3 S
[Ue] Rated Operational Voltage600 V AC 50/60 Hz IEC 60947-3
Mounting Supportlug
Local Signallingready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Protection Technologycurrent limiter
Net Weight6.2 kg
Control Typetoggle
Wire Stripping Length31 mm || 61 mm
Utilisation Categorycategory A
Continuous Current Rating80 %
[Ui] Rated Insulation Voltage750 V IEC 60947-2
Communication InterfaceModbus || Ethernet
Awg Gauge2 x AWG 2/0...500 kcmil aluminum/copper
Width140 mm
Specifications
- Product Or Component Type
- circuit breaker
- Range
- PowerPact
- Device Short Name
- L-Frame
Product NamePowerPact L
Device Applicationdistribution
