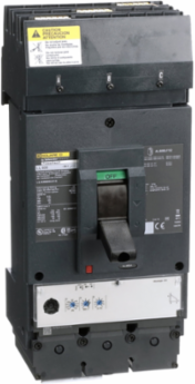

Square D LLA36600U31X Circuit breaker, PowerPacT L, 600A, 3 pole, 600VAC, 50kA, I-Line, MicroLogic 3.3, 80%, ABC
- MPN: LLA36600U31X
- UPC: 785901986553
- PPN: SCH-LLA36600U31X
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 600A, 3 pole, circuit breaker has an interrupting rating of 50kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3 trip unit and an LI function. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Features
- The LLA36600U31X features a plug-on I-Line connection (with standard ABC phase configuration) designed for immediate integration into existing Square D I-Line panelboards and switchboards.
- This molded case circuit breaker (MCCB) comes factory-equipped with an advanced MicroLogic 3.3 electronic trip unit, providing precise, adjustable Long-Time and Instantaneous (LI) overcurrent protection. This solid-state precision allows commercial electricians and industrial engineers to fine-tune trip settings directly on-site, optimizing system coordination and preventing nuisance tripping caused by high-inrush motor currents.
- Boasting an ultra-high 'L' interrupting capacity code, this breaker delivers a massive short-circuit breaking capacity of 100 kAIC at 480VAC and 50 kAIC at 600VAC. Its robust current-limiting design utilizes dual-break rotating contacts to rapidly dissipate peak fault currents, ensuring complete downstream thermal-magnetic protection and preventing catastrophic damage to expensive industrial machinery.
- This 3-pole, 600A breaker is 80% continuous-current rated and features heavy-duty mechanical lugs on the load side that securely accept two wires ranging from 2/0 AWG to 500 kcmil aluminum or copper conductors. The dual-conductor termination capability guarantees secure low-resistance connections, optimal heat dissipation, and full compliance with strict Canadian electrical codes for high-amperage distribution.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
Depth110 mm
Communications & Management Attributes
- Communication Interface
- Modbus, Ethernet
Physical Attributes
- Color
- Black
Wire Stripping Length31 mm
Complementary Attributes
- Line Rated Current
- 600-600 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Signalling
- ready 1 LED green), alarm 1 LED 90 % Ir orange)alarm LED 105 % Ir red)switched off (OFF) 1 trip indicator green)
- Certificate Agency
- UL, CSA, NOM
- Carbon Footprint Of The Distribution Phase [A4]
- 2.465642140710872, 2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 2.378515033031036, 2 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 1 105 kg CO2 eq., 1104.6209440752482
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- N
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 4
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Awg Gauge
- 2 x 2/0 AWG...500 kcmil aluminium/copper
- Continuous Current Rating
- 80 %
- Device Application
- distribution
- Electrical Connection
- I-Line connection, linelugs, load
- Mounting Mode
- I-Line bracket)
- Network Frequency
- 50/60 Hz
- Phase Connection
- ABC
- Product Name
- PowerPact L
- Range
- PowerPact
- Software Version
- v6.2.5-6
- Sustainable Packaging
- No
- Tightening Torque
- 50-50 N.m 70-240 mm² (2 x 2/0 AWG...500 kcmil)
- Trip Unit Name
- MicroLogic 3.3
- Utilisation Category
- category A
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; United States, US
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential In %
- 58
- Width Nominal
- 140 mm
- [Ui] Rated Insulation Voltage
- 750 V IEC 60947-2
- Long Time Pick-up Adjustment Range
- 0.25...1 x In
- Package Weight(Lbs)
- 8.532 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationCommercial, Industrial
Number Of Slots2 auxiliary switch OF plug-in), 1 alarm switch SD plug-in)1 overcurrent trip switch SDE plug-in)1 voltage release MN or MX plug-in)
[Ics] Rated Service Breaking Capacity125 kA 220/240 V AC 50/60 Hz IEC 60947-2100 kA 380/440/415 V AC 50/60 Hz IEC 60947-250 kA 500/525 V AC 50/60 Hz IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2
Carbon Footprint Of The End-of-life Phase [C1 To C4]13 kg CO2 eq., 12.919598743952402
Carbon Footprint Of The Manufacturing Phase [A1 To A3]55 kg CO2 eq., 54.959930723404696
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityYes
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterOutside of Europe
End Of Life Doc RefENVEOLI2206029_V2
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2543
China Rohs In ScopeNo
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Circuit Breaker ApplicationHACR rated
Control Typetoggle
Device Short NameL-Frame
Energy Efficiency OptimizedFalse
Mounting Supportbracket
Number Of Poles3P
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typecircuit breaker
ReturnabilityYes
Suitability For Isolationyes IEC 60947-2
Terminal IdentifierAL600LF52K3
Total Lifecycle Carbon Footprint1 177 kg CO2 eq.
Trip Unit Technologyelectronic, standard, MicroLogic 3.3, LI
Pep CodeENVPEP2206029EN
Pep Verification Date2025-06-29
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal340 mm
[Ue] Rated Operational Voltage600 V AC 50/60 Hz IEC 60947-3
[Uimp] Rated Impulse Withstand Voltage8 kV IEC 60947-2
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536200020
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -50-85 °C, -50-85 °C
- Take Back
- No
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2206029_V2
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-06-29
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Operation-25-70 °C, -25-70 °C
Operating Altitude< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating5000 m with derating
Recycled Metal Content At Cr Level0 %
Carbon Footprint1177.3446307163472
Environmental DisclosureENVPEP2206029EN
Ip Degree Of Protectionfront cover IP40
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2206029EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- circuit breaker
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Batteries & Runtime Attributes
- Removable Battery
- No
