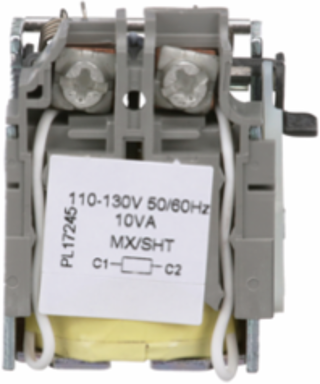

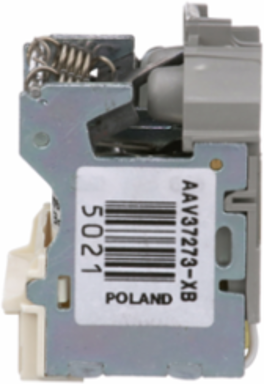

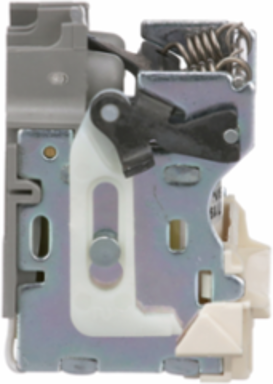

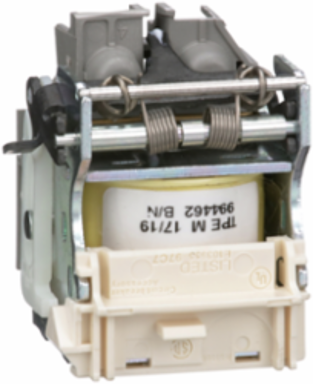

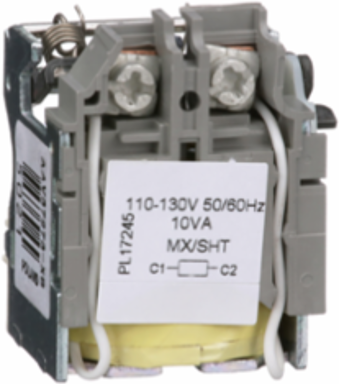

Square D S29386 PowerPact H-Frame Circuit Breaker Shunt Trip, 110-130VAC, 1.72 Inch Height

PowerPact H-Frame Circuit Breaker Shunt Trip, 110-130VAC, 1.72 Inch Height - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/3afd5cf68b982c6d2121af2dc1b7cb355587532e-medium.png

PowerPact H-Frame Circuit Breaker Shunt Trip, 110-130VAC, 1.72 Inch Height

Square D S29386 PowerPact H-Frame Circuit Breaker Shunt Trip, 110-130VAC, 1.72 Inch Height

MPN: S29386
UPC: 785901712282
PPN: SCH-S29386

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$1333.18/ EA

Qty:

Loading add to cart quantity...

Description

The PowerPact™ H-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. H-frame circuit breakers are available with either thermal-magnetic or Micrologic™ electronic trip units. The amperage ratings of the thermal trip elements are calibrated at 104°F (40°C) free air ambient temperature. Per the National Electric Code® (NEC®) and the Canadian Electrical Code, standard circuit breakers may only be applied continuously at up to 80% of their rating. This PowerPact H Ciecuit Beaker Shunt Trip, 110-130VAC. This product complies to UL & CSA certifications.

Specifications

Voltage: 110-130 VAC

Height: 1.72 in

Depth: 1.24 in

Mercury Free: Yes

Country of Origin: United States

Tightening Torque1.4 N.m

Width1.28 in

Circuit Breaker TypeStandard

RoHS ComplianceCompliant with Exemptions
