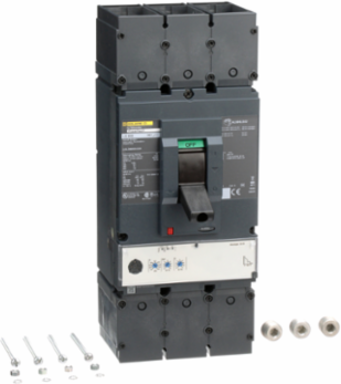

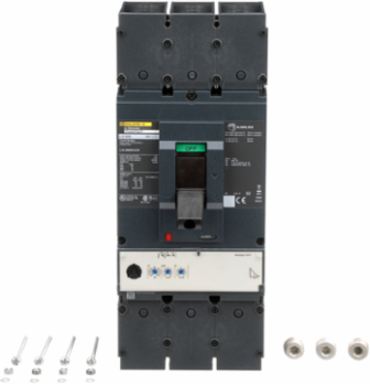

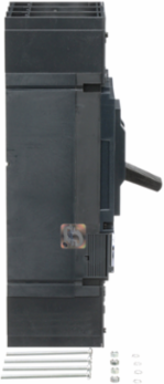

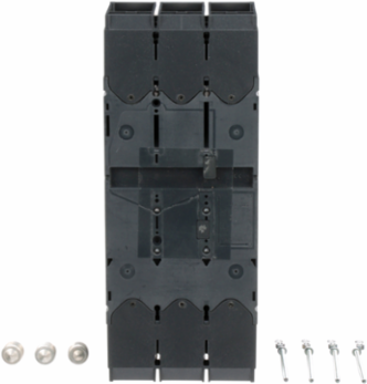

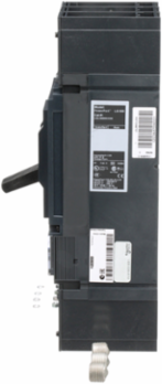

Square D LGL36600U33X PowerPacT L Circuit Breaker 600A 3 Pole 600VAC 18kA MicroLogic 3.3S
- MPN: LGL36600U33X
- UPC: 785901638674
- PPN: SCH-LGL36600U33X
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The LGL36600U33X, a robust offering from Schneider Electric, embodies advanced engineering in power distribution with its 600A, three-pole configuration designed for 600VAC applications. This molded case circuit breaker ensures reliable protection with a capacity of 18kA, making it well-suited for demanding industrial environments. Equipped with the innovative MicroLogic 3.3S trip unit, it provides precision performance and enhanced monitoring capabilities, ensuring that your electrical systems remain safe and efficient even under heavy loads. As part of Schneider Electric's commitment to excellence in circuit protection, this breaker is an essential component for any power distribution setup.
Documentation & Downloads
Specifications
Additional
- Amperage
- 600 A
- Breaking Capacity
- 65 kA 240 V AC, 35 kA 480 V AC, 18 kA 600 V AC, 20 kA 250 V DC, 20 kA 500 V DC UL 489
- Trip Unit Name
- MicroLogic 3.3 S
- Continuous Current Rating
- 80 %
- Rated Impulse Withstand Voltage
- 8 kV IEC 60947-2
- Circuit Breaker Application
- HACR rated
- Suitability for Isolation
- Yes IEC 60947-2
- AWG Gauge
- 2 x AWG 2/0...500 kcmil aluminum/copper
- Mounting Mode
- Unit mount lug
- Electrical Connection
- Lugs, line and load

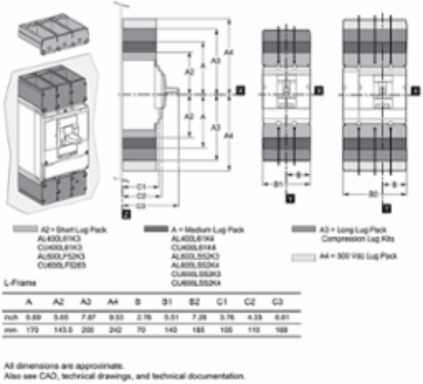

- Height
- 340 mm (13.39 in)
- Depth
- 110 mm (4.33 in)
- Communication Interface
- Modbus, Ethernet
- Product Certifications
- UL, CSA, NOM
- Pollution Degree
- 3 IEC 60947-1
- Ambient Air Temperature for Storage
- -50 to 85 °C (-58 to 185 °F)
- RoHS Compliance
- Compliant with Exemptions
- PVC Free
- Yes
- Country of Origin
- United States
- Sustainable Offer Status
- Green Premium product
Voltage600 V AC 50/60 Hz IEC 60947-3
Number of Poles3
Trip Unit TechnologyElectronic, standard, MicroLogic 3.3 S, LSI
Rated Insulation Voltage750 V IEC 60947-2
Control TypeToggle
Protection TechnologyCurrent limiter
Utilisation CategoryCategory A
Local Signalling1 LED green, 1 LED 90% Ir orange, 1 LED 105% Ir red, 1 trip indicator green
Mounting SupportLug
Wire Stripping Length31 mm, 61 mm
Width140 mm (5.51 in)
Net Weight6.2 kg (13.67 lb)
StandardsUL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
IP Degree of ProtectionFront cover IP40
Ambient Air Temperature for Operation-25 to 70 °C (-13 to 158 °F)
Operating Altitude< 2000 m without derating, up to 5000 m with derating
Mercury FreeYes
ColorBlack
Warranty18 months
