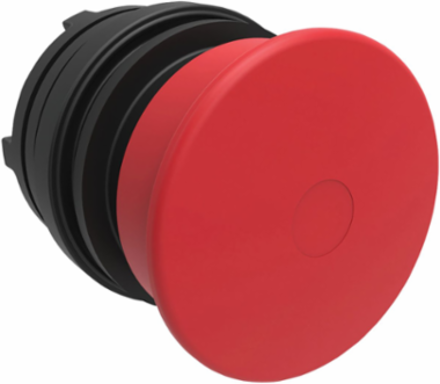

Killark HKHPBMMMR Momentary Mushroom Push Button Red - 1NO/1NC, Hazardous Class I, Division 2
- MPN: HKHPBMMMR
- UPC: 783936114064
- PPN: HBL-HKHPBMMMR
CAD
$204.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Momentary Mushroom Push Button, Red - 1NO/1NC Contact Rating
Features
- Actuator for use with HKH Din Rail and Panel Mounted contact blocks for Type 3, 4, 4X, 12, 13 and IP66 applications.
- Killark HKH HAZCON™ Series Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications, ON/OFF functions for Lighting Circuits and more. Utilized in Class 1 Division 2, Class 1 Zone 1 areas where Type 3, 4, 4X, 12 and 13 weather-ingress ratings are required for indoor and outdoor use. Certified for use in the European Union with ratings for IECEx and ATEX in addition to IP66 water ingress protection.
Specifications
Key Specifications
- Country of Origin
- China
- Operating Temperature Range Celcius
- -40°C to 55°C
- Actuator
- Mushroom Pushbutton
- Frequency Rating
- 50/60 Hz
- Type
- Push Button
- Class Code
- D25
- Freight Class Code
- 06316009
- Image Actual Or Representative
- A
- Sub Class Code
- D25D250
- Series
- HKH Series
- BOX SIZE
- 0.000x0.000x0.000 (in)
- Carton - Number of Sub Packs
- 20
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936114064
- NAICS Code
- 3359326103
Hazardous Rating(s)Class I, Division 2, Groups A, B, C, D;Class II, Division 1, Groups E, F, G (Canada Only);Class II, Division 2, Groups E, F, G;Class III, Divisions 1 & 2;Zones 1 & 2;Zones 21 & 22
ActionMomentary
ApplicationHKH Series Actuator to be ordered with Electrical modules & Accessories
Nema Rating4X
ARRA CompliantContact Manufacturer
Description - InvoiceMOMENTARY PUSHBUTTON, MUSHROOM HD, RED
Harmonization Code8536509065
MSDS FlagNo
UL File NumberE12379
Base Unit of MeasureEA
Carton - Gross Weight per Pack0.100 lb.
Carton - Pack DescriptionCarton
Carton - Total Units20
