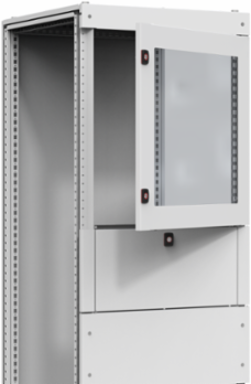

nVent Hoffman DPM0506R5 Monitor Door 500 x 600 Mild Steel Powder Coated IP44
- MPN: DPM0506R5
- UPC: 783510471514
- PPN: HOF-DPM0506R5
CAD
$748.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This partial door is a solution for a computer screen to be mounted in a enclosure. The door keeps the computer safe. This Partial Doors For Monitor, DPM, DPM0506R5 item measures 500x600x17mm has a material of Mild Steel color Light Gray, finish Powder Coated.
Features
- Description: For monitor size 14"-21". Used in combination with the hinged keyboard tray DPK, allows the installation of a PC in any floor standing enclosures. The remaining space will be filled with top and bottom panels DPC and partial doors DP.
- Material: 1.75 mm steel plate, viewing area: 4 mm safety glass.
- Finish: RAL 7035 structured powder coating.
- Protection: Complies with IP 44.
- Pack quantity: 1 door with hinges and double-bit 3 mm lock.
- Mounting requirements: To be used in combination with keyboard tray DPK. Recommended in combination with CDH to avoid a gap between the above/below panels.
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 600 |
| Latch Quantity | 2 |
| Works With | IEC |
| Protection Rating | IP44 |
| Material | Mild Steel |
| Color | Light Gray |
| Height (H) | 500 |
|---|---|
| Depth (D) | 17 |
| Window Size | 360 x 455 |
| Enclosure Material | Mild Steel |
| Product Family | Free-Standing |
| Finish | Powder Coated |
| Color Code | RAL 7035 |
