Schneider Electric

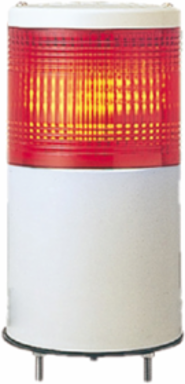

Schneider Electric XVC4B1K Monolithic precabled tower light, Harmony XVC, plastic, red, 40mm, base mounting, steady, IP54, 24V AC DC

Monolithic precabled tower light, Harmony XVC, plastic, red, 40mm, base mounting, steady, IP54, 24V AC DC
  • MPN: XVC4B1K
  • PPN: SCH-XVC4B1K

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Company Stock:

    0

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$151.23/ EA

    Description

    Monolithic precabled tower light, Harmony XVC, plastic, red, 40mm, base mounting, steady, IP54, 24V AC DC

    Specifications

    Environment

    Product Certifications
    UL
    Ambient Air Temperature For Storage
    -35-70 °C
    Standards
    IEC 61000-6-2 || IEC 61000-6-3
    Protective Treatment
    TC
    Ambient Air Temperature For Operation-10-50 °C
    Overvoltage Categoryclass II IEC 61140
    Electrical Shock Protection Classclass II IEC 61140
    Ip Degree Of ProtectionIP54 flat surface installation IEC 60529

    Contractual warranty

    Warranty
    18 months

    Offer Sustainability

    China Rohs Regulation
    X
    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP1904008EN
    Circularity ProfileENVEOLI1904008EN
    Mercury FreeYes
    Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

    Complementary

    [Us] Rated Supply Voltage
    24 V
    Awg Gauge
    AWG 22
    Flashing Frequency
    1 Hz
    Product Mounting
    on base
    Cable Length
    500 mm
    Net Weight
    0.1 kg
    Current Consumption
    25 mA
    Height100.5 mm
    [Uimp] Rated Impulse Withstand Voltage0.8 kV
    Cable Cross Section0.33-0.33 mm²
    Materialpolycarbonate: illuminated unit || ABS (acrylonitrile butadiene-styrene): base unit || PBT + ABS (UL94HB): top cover
    MarkingCE
    Mounting Locationon base

    Specifications

    Range Of Product
    Harmony XVC4
    Mounting Diameter
    40 mm
    Light Source
    LED steady red
    Component Name
    XVC
    Device Short Name
    XVC
    Beacon Or Indicator Bank Unit Type1 illuminated unit
    Supply Circuit TypeAC/DC
    Product Or Component Typecomplete pre-wired monolithic tower light
    Sound Signallingwithout
