Monolithic Tower Light 60mm, IP54, 24V AC/DC, 3 Units
Monolithic Tower Light 60mm, IP54, 24V AC/DC, 3 Units
Schneider Electric

Schneider Electric XVC6B3K Monolithic Tower Light 60mm, IP54, 24V AC/DC, 3 Units

  • MPN: XVC6B3K
  • PPN: SCH-XVC6B3K
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $268.94

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

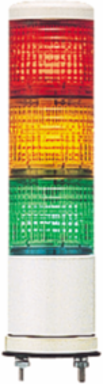

    This monolithic tower light is part of the range of pre-assembled and pre-cabled tower lights Harmony type XVC diameter 60mm. It is supplied pre-assembled and pre-cabled with 3 illuminated signaling units (red, orange, green) and a base for mounting on horizontal surface. It is designed for long distance indication of the operating states of a machine, visually by means of illuminated signaling units visible through 360°. It features LED for steady light source, and it can be supplied with 24V AC/DC. Its protection index is IP54. It provides PC (polycarbonate) illuminated unit, ABS base unit and PBT + ABS (UL94HB) top cover. It weighs 300g and it is 201mm high. It is used mainly in the semi-conductor factories, on conveyor belts and on small food or drink dispensing machines in the commercial sector. It is CE and UL certified. It is designed to be mounted on horizontal surface thanks to its base fitted with 3 screws.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Indonesia, United States

    Physical Attributes

    Cable Length
    850 mm

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Light Source
    LED steady red, LED steady orange, LED steady green
    Carbon Footprint Of The Distribution Phase [A4]
    0.0632895471, 0.1 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0.5005838163, 0.5 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
    18 kg CO2 eq., 17.78375
    Local Publishable Date
    2026-01-12
    Stocking Flag
    Y
    Weee Scope
    Out
    Scope Perimeter
    Outside of Europe
    End Of Life Doc Ref
    ENVEOLI1904008EN
    Rohs Eur Status
    Compliant By Exemption
    Rohs Eur Full Compliance Status
    Compliant By Exemption
    China Rohs Label
    5
    Without Single Use Plastic
    Yes
    Tier Id
    1
    Function Option Id
    STANDARD
    Product Kit Identifier
    N
    Beacon Or Indicator Bank Unit Type
    3 illuminated units
    Component Name
    XVC
    Electrical Shock Protection Class
    class II conforming to IEC 61140
    Marking
    CE
    Product Availability
    Non-Stock - Not normally stocked in distribution facility
    Product Or Component Type
    complete pre-wired monolithic tower light
    Range Of Product
    Harmony XVC6
    Software Version
    v5.9.4
    Supply Circuit Type
    AC/DC
    Total Lifecycle Carbon Footprint
    22 kg CO2 eq.
    Database Version
    2022-01
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    The Harmony XVU modular range of tower lights are 360° pilot lights and commonly used signaling product for a wide range of applications. These tower lights are visual and audible signaling units that comes with a combination of innovative features, high& 10performance and simplicity.It has power consumption of 0.96 W with use rate of 73% for a period of 10 years and product is adhering to EN standards.
    Functional-unit Unit
    Unit
    Energy Consumption On Product Lifetime, In Kwh
    38.3688
    Energy Model - Installation [A5]
    Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; RU
    Energy Model - End Of Life [C1-c4]
    Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; RU
    Certificate Agency
    UL
    [Us] Rated Supply Voltage
    24 V
    Package Weight(Lbs)
    474.000 g
    Warranty (In Months)
    18
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]
    17.7625
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
    71.0625
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Materialpolycarbonate: illuminated unit, ABS (acrylonitrile butadiene-styrene): base unit, PBT + ABS (UL94HB): top cover
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.4 kg CO2 eq., 0.4226417686
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]3 kg CO2 eq., 3.0607340631
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    Weee Product Category5
    Eoli Availability DisplayYes
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date2150
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Awg GaugeAWG 22
    Cable Cross Section0.33-0.33 mm²
    Current Consumption75 mA
    Flashing Frequency1 Hz
    Mounting Diameter60 mm
    Product Mountingon base
    Protective TreatmentTC
    ReturnabilityYes
    Sound Signallingwithout
    Sustainable PackagingYes
    Pep CodeENVPEP1904008EN
    Pep Verification Date2023-08-01
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime, In Y10
    Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; APAC
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; RU
    Height Nominal200.8 mm
    [Uimp] Rated Impulse Withstand Voltage0.8 kV
    Nbr. Of Units In Pkg.1
    Take-backNo
    Acidification (Ap) (Mole Of H+ Equiv) Operational Energy Use [B6]0.0995
    Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]199.725
    Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]71.0625

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -10-50 °C, -10-50 °C
    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    21.8309991951
    Environmental Disclosure
    ENVPEP1904008EN
    Ip Degree Of Protection
    IP54 flat surface installation IEC 60529
    Packaging Without Single Use Plastic
    Yes
    Pep Verification Date
    2023-08-01
    Psr Version
    PSR-0005-ed2-2016 03 29
    Ambient Air Temperature For Storage-35-70 °C, -35-70 °C
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Circularity ProfileENVEOLI1904008EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardYes
    Pep CodeENVPEP1904008EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    complete pre-wired monolithic tower light
    Range Of ProductHarmony XVC6

    ETIM

    ETIM 8
    EC001042
    ETIM 9EC001042

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
