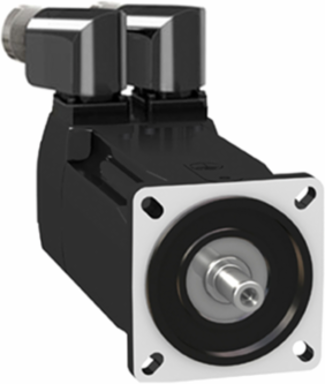

Schneider Electric MH30703P07A2200 Servo Motor 3.1 Nm, IP65/IP67, 8000 RPM, 3 kg
Schneider Electric MH30703P07A2200 Servo Motor 3.1 Nm, IP65/IP67, 8000 RPM, 3 kg
- MPN: MH30703P07A2200
- PPN: SCH-MH30703P07A2200
- UNSPSC: 39121021
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1770.68/ EA
Description
Experience precision and reliability with this high-performance servo motor from Schneider Electric, designed for demanding automation and motion control applications. The MH3 series motor boasts a peak stall torque of 10.2 N.m and operates efficiently across a wide voltage range of 115 to 480 V in three-phase configurations. Its robust design features an IP65/IP67 rating for superior protection against dust and water, making it ideal for various industrial environments. With a maximum mechanical speed of 8000 rpm and a continuous power output of 1540 W, this motor ensures optimal performance and responsiveness, while its multiturn SinCos Hiperface encoder provides precise speed feedback. Additionally, the thoughtful engineering includes rotatable right-angled connectors and a smooth shaft, allowing for versatile installation and integration into existing systems.
Specifications
Physical Attributes
- Motor Flange Size
- 70 mm
Shaft Length30 mm
Complementary Attributes
- Maximum Radial Force FR
- 730 N 1000 rpm, 580 N 2000 rpm, 510 N 3000 rpm, 460 N 4000 rpm, 430 N 5000 rpm, 400 N 6000 rpm
- Line Rated Current
- 2.91 A
- Maximum Current IRMS
- 12.57 A
- Maximum Operational Altitude
- 3000.0 m
Minimum Ambient Air Temperature For Operation-20.0 °C, -20.0 °C
Maximum Ambient Air Temperature For Operation60.0 °C
Maximum Mechanical Speed8000 rpm
Minimum Operational Altitude0.0 m
Important Information Attributes
- Persona Type Ids
- EU, OM
- Inertia
- 0.0 kg.cm² of brake, 1.67 kg.cm² of motor
- Nominal Speed
- 2500 rpm LXM62 3.47 mA, 230 V, single phase, 5000 rpm LXM62 3.02 mA, 400 V, three phase, 6500 rpm LXM62 2.74 mA, 480 V, three phase, 1250 rpm LXM52 3.56 mA, 115 V, single phase, 2500 rpm LXM52 3.47 mA, 230 V, single phase, 5000 rpm LXM52 3.02 mA, 400 V, three phase, 6500 rpm LXM52 2.74 mA, 480 V, three phase, 1250 rpm LXM62 3.56 mA, 115 V, single phase, 5000 rpm
- Carbon Footprint Of The Distribution Phase A4
- 0.3225547445, 0.3 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.0191613139, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 1 473 kg CO2 eq., 1472.8971833018
- Local Publishable Date
- 2026-01-12
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Centring Collar Diameter
- 60 mm
- Continuous Power
- 1540 W
- Continuous Stall Torque
- 3.4 N.m, 115...480 V, three phase
- Derating Temperature Scale
- 80.0 °C
- Electrical Connection
- rotatable right-angled connectors
- Holding Brake
- without
- Minimum Operational Altitude
- 0.0 m
- Mounting Holes Diameter
- 5.5 mm
- Package Weight Lbs
- 3.616 kg
- Phase
- three phase
- Product Or Component Type
- servo motor
- Rotor Inertia
- 1.67 kg.cm²
- Shaft Diameter
- 14 mm
- Sizing Reference
- MH30703P
- Stator Electrical Time Constant
- 3.2 ms
- Stator Resistance
- 2.65 Ohm
- Temperature Copper Hot
- 135 °C
- Total Lifecycle Carbon Footprint
- 1 492 kg CO2 eq.
- Us Rated Supply Voltage2
- 115...480 V
- Medium Desc
- MH3 servomotor, 70mm, 3 stacks, smooth Shaft, SinCos Multiturn 16, no Brake, angular, IP65
- Product Kit Identifier
- N
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Data Source
- extrapolated product
- Functional Unit Unit
- unit
- Energy Model Installation A5 2
- Electricity mix; AC; < 1kV; EU-27
- Energy Model End Of Life C1 C4 2
- Electricity mix; AC; < 1kV; EU-27
- Maximum In Rated Current5
- 2.91 A
Persona Type NamesEnd User, Original Equipment Manufacturer
Minimum Ambient Air Temperature For Operation-20.0 °C, -20.0 °C
Nominal Torque2.96 N.m LXM62 3.47 mA, 230 V, single phase, 2.53 N.m LXM62 3.02 mA, 400 V, three phase, 2.26 N.m LXM62 2.74 mA, 480 V, three phase, 3.18 N.m LXM52 3.56 mA, 115 V, three phase, 2.96 N.m LXM52 3.47 mA, 230 V, single phase, 2.53 N.m LXM52 3.02 mA, 400 V, three phase, 2.26 N.m LXM52 2.74 mA, 480 V, three phase, 3.18 N.m LXM62 3.56 mA, 115 V, single phase
Carbon Footprint Of The End Of Life Phase C1 To C40.2 kg CO2 eq., 0.2037372263
Carbon Footprint Of The Manufacturing Phase A1 To A318 kg CO2 eq., 18.0627737226
Local Data StatusPublishable
Device TypeMotion - drive & motor
TraceabilityYes
Average Life Duration15 year(s)
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorY
Function OptionAdvanced
Market SegmentationIndustrial
Circle Diameter Of The Mounting Holes82 mm
Continuous Stall Current3.91 A
Derating Altitude Scale80.0 m
Device Short NameMH3
Encoder Typemultiturn SinCos Hiperface
Maximum Operational Altitude3000.0 m
Motor Figures480.0 V
Mounting Supportinternational standard flange
Peak Stall Torque10.2 N.m, 115...480 V, three phase
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
ReturnabilityYes
Second Shaftwithout second shaft end
Shaft Endsmooth shaft
Speed Feedback Resolution16 periods
Stator Inductance8.64 mH
Sustainable PackagingNo
Torque Constant0.87 N.m/A 120 °C
Type Of Coolingnatural convection
Maximum In Rated Current22.91 A
Stocking FlagY
Pep CodeENVPEP111002EN
Pep Verification Date2020-08-01
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionTo coordinate and synchronize motion control up to 117W during 10 years and a 70% use rate.
Energy Model Manufacturing A1 A3 2Energy model used: Germany
Energy Model Use B6 2Electricity mix; AC; < 1kV; EU-27
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Carbon Footprint
- 1491.5054103091
- IP Degree Of Protection
- IP65 standard
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP111002EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP111002EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2020-08-01
Type Of Verification For The PepIndependent internal review
General Attributes
- Phase
- three phase
Product Or Component Typeservo motor
Output Attributes
- Nominal Output Power
- 0.42 W, 115 V, 0.75 W, 230 V, 1.32 W, 400 V, 1.54 W, 480 V
Output Current 3s Peak12.57 A
