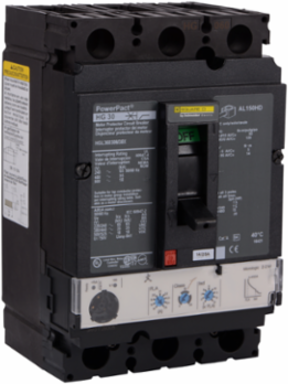

Square D HRL36100M73 PowerPact H Motor Circuit Protector 100A 3-Pole 600VAC 100kA
- MPN: HRL36100M73
- PPN: SCH-HRL36100M73
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
PowerPact electronic Motor Circuit Protectors (MCP) are magnetic-only instantaneous-trip circuit breakers. Designed to offer short circuit protection, they are National Electrical Code (NEC) compliant when installed as part of a combination controller having motor overload protection. PowerPact electronic Motor Circuit Protectors has sensor ratings from 30–1200 A at up to 600 Vac. They have Electronic trip units with adjustable instantaneous trip ranges and comes in 3-pole available in unit mount and I-Line construction. PowerPact electronic Motor Circuit Protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. PowerPact electronic Motor Circuit Protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. This PowerPact H, Motor Circuit Protector has a rated current of 100A and is a 3P breaker. This breaker has a breaking capacity of 100 kA@600VAC and has an magnetic trip technology. This breaker complies to UL, CE, IEC & CSA standards. Thermal current for this breaker has a magnetic tripping current of 1300-1300 A This product comes with an 18 months warranty.
Documentation & Downloads
Specifications
Key Specifications
- Product Or Component Type
- Motor Circuit Protector
- Device Application
- distribution
Product NamePowerPact H
RangePowerPact
Complementary
- Mounting Mode
- unit mount lug)
- Wire Stripping Length
- 16 mm
- Utilisation Category
- category A
- [Ics] Rated Service Breaking Capacity
- 150 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 125 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 75 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 690 V AC 50/60 Hz IEC 60947-2
- [Ith] Conventional Free Air Thermal Current
- 30-80 A
- Continuous Current Rating
- 80 %
- [Ui] Rated Insulation Voltage
- 750 V IEC 60947-2
- Communication Interface
- Modbus || Ethernet
- Tightening Torque
- 5-5 N.m 2.5-6 mm² AWG 14...AWG 10) || 14-14 N.m 10-95 mm² AWG 8...AWG 3/0)
- Breaking Capacity Code
- R
- Poles Description
- 3P
- Number Of Slots
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Awg Gauge
- AWG 14...AWG 3/0 aluminum/copper terminal
- Width
- 104 mm
- Depth
- 86 mm
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV IEC 60947-2
Network Frequency50/60 Hz
Terminal IdentifierAL150HD
[In] Rated Current100-100 A
Trip Unit Technologythermal-magnetic
Height163 mm
Breaking Capacity200 kA 240 V AC 50/60 Hz UL 489 || 200 kA 480 V AC 50/60 Hz UL 489 || 100 kA 600 V AC 50/60 Hz UL 489
Suitability For Isolationyes IEC 60947-2
[Ue] Rated Operational Voltage690 V AC 50/60 Hz IEC 60947-3
Mounting Supportlug
Magnetic Tripping Current180-1040 A
Quantity Per Set1
Protected Poles Description3t
Colourblack
Electrical Connectionlugs, line || lugs, load
Net Weight2.2 kg
Control Typetoggle
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2206028EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI2206028EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -50-85 °C
- Quality Labels
- CE
- Operating Altitude
- < 2000 m without derating || 5000 m with derating
Pollution Degree3 IEC 60947-1
StandardsUL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Product CertificationsUL || CSA || NOM
Ip Degree Of Protectionfront cover IP40 IEC 60529
