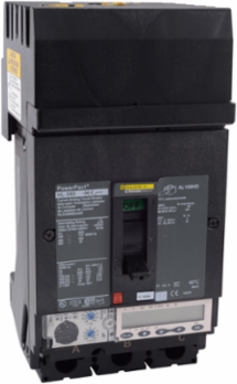

Square D HRL36030M71 PowerPacT H Motor Circuit Protector 30A 3-Pole 600VAC 100kA
- MPN: HRL36030M71
- PPN: SCH-HRL36030M71
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
PowerPacT H-Frame motor circuit protectors (MCP) are instantaneous-trip circuit breakers designed to offer short circuit protection for motors. The unique design of the PowerPacT MCPs accommodates transient motor inrush current without nuisance tripping. This PowerPacT H, 30A, 3 pole, motor protector has a breaking capacity of 100kA at 600VAC. This unit has lugs on both the line and load side. These motor protectors accept the same accessories and terminals as PowerPacT H circuit breakers. This breaker has a continuous current rating of 80%. PowerPacT H motor circuit protectors comply to UL, CSA, and IEC standards and are CE marked.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Depth86 mm
Communications & Management Attributes
- Communication Interface
- Modbus, Ethernet
Physical Attributes
- Color
- Black
Wire Stripping Length16 mm
Complementary Attributes
- Line Rated Current
- 30-30 A
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Connection
- lugs, line, lugs, load
- Tightening Torque
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10), 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- [Ics] Rated Service Breaking Capacity
- 150 kA 220/240 V AC 50/60 Hz IEC 60947-2, 125 kA 380/440/415 V AC 50/60 Hz IEC 60947-2, 75 kA 500/525 V AC 50/60 Hz IEC 60947-2, 20 kA 690 V AC 50/60 Hz IEC 60947-2
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 5 kg CO2 eq., 4.66452105562477
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 18 kg CO2 eq., 17.70346423424167
- Local Data Status
- Publishable
- Return Indicator
- Y
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Awg Gauge
- AWG 14...AWG 3/0 aluminium/copper terminal
- Control Type
- toggle
- Energy Efficiency Optimized
- False
- Mounting Mode
- unit mount lug)
- Network Frequency
- 50/60 Hz
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- Motor Circuit Protector
- Quality Labels
- CE
- Range
- PowerPact
- Software Version
- v6.2.4
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 200 kg CO2 eq.
- Utilisation Category
- category A
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; United States, US
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential, In %
- 44
- Width Nominal
- 104 mm
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz IEC 60947-3
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV IEC 60947-2
- Package Weight(Lbs)
- 2.268 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Number Of Slots2 auxiliary switch OF plug-in), 1 alarm switch SD plug-in), 1 overcurrent trip switch SDE plug-in), 1 voltage release MN or MX plug-in)
Certificate AgencyUL, CSA, NOM
Carbon Footprint Of The Distribution Phase [A4]0.29584006466408175, 0.3 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]177 kg CO2 eq., 177.45789047308338
Local Publishable Date2025-11-13
Stocking FlagN
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterOutside of Europe
End Of Life Doc RefENVEOLI2206028_V2
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2539
China Rohs In ScopeNo
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Continuous Current Rating80 %
Device Applicationdistribution
Magnetic Tripping Current9-325 A
Mounting Supportlug
Number Of Poles3P
Product NamePowerPact H
Protected Poles Description3t
Quantity Per Set1
ReturnabilityYes
Suitability For Isolationyes IEC 60947-2
Terminal IdentifierAL150HD
Trip Unit Technologythermal-magnetic
Pep CodeENVPEP2206028EN
Pep Verification Date2025-04-01
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal163 mm
[Ith] Conventional Free Air Thermal Current1.5-25 A
[Ui] Rated Insulation Voltage750 V IEC 60947-2
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -50-85 °C, -50-85 °C
- Take Back
- No
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2206028_V2
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-04-01
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Operation-25-70 °C, -25-70 °C
Operating Altitude< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating, 5000 m with derating
Recycled Metal Content At Cr Level0 %
Carbon Footprint200.12171582761388
Environmental DisclosureENVPEP2206028EN
Ip Degree Of Protectionfront cover IP40 IEC 60529
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2206028EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- Motor Circuit Protector
ETIM
- ETIM 8
- EC000074
ETIM 9EC000074
