TeSys T Motor Controller, 5-100A, 100-240VAC, CANopen, 6 Inputs, 3 Outputs
Schneider Electric

Schneider Electric LTMR100CFM TeSys T Motor Controller, 5-100A, 100-240VAC, CANopen, 6 Inputs, 3 Outputs

  • MPN: LTMR100CFM
  • PPN: SCH-LTMR100CFM

CAD

$2308.72

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

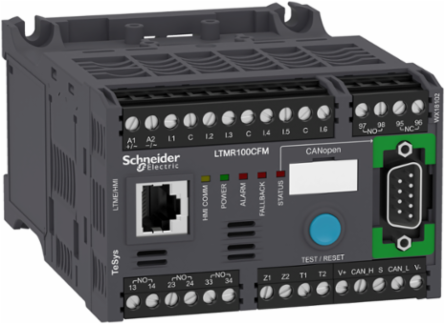

TeSys T Motor Controller, 5-100A, 100-240VAC, CANopen, 6 Inputs, 3 Outputs

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Brazil, China, France, South Korea, United States
Depth122.5 mm

Communications & Management Attributes

Communication Port Protocol
CANopen

Complementary Attributes

Maximum Operating Frequency
2 Hz
Maximum Operating Rate1800 cyc/h

Important Information Attributes

Persona Type Ids
EU, LC, OM, OM8, PB
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Associated Fuse Rating
4 A gG output, 0.5 A gG control circuit
Contacts Type And Composition
1 NO + 1 NC fault signal, 3 NO
Fire Resistance
650 °C EN/IEC 60695-2-12, 960 °C UL 94
Measurement Accuracy
+/- 30 min/year internal clock, +/- 30 min/year internal clock5...15 % earth fault current internal measurement, 1 % voltage 100...830 V), 3 % power factor, 5 % earth fault current external measurement, +/- 30 min/year internal clock, +/- 30 min/year internal clock, 0,02 Temperature, 5 % active and reactive power, 0,02 current
Metering Type
earth-fault current, phase current I1, I2, I3 RMS, imbalance current, temperature, average current Iavg
Permissible Power
480 VA AC-15), Ie = 2 A, 500000 cycles output), 30 W DC-13), Ie = 1.25 A, 500000 cycles output)
Protective Treatment
12 x 24 hour cycles EN/IEC 60068-2-30, 48 h EN/IEC 60070-2-11, TH EN/IEC 60068
[Ui] Rated Insulation Voltage
690 V EN/IEC 60947-1, 690 V CSA C22.2 No 14, 690 V UL 508
Connections - Terminals
control circuit connector 1 0.25-2.5 mm² AWG 24...AWG 14)flexible without cable end, control circuit connector 2 0.2-1.5 mm² AWG 24...AWG 14)flexible without cable end, control circuit connector 2 0.2-1 mm² AWG 24...AWG 14)solid without cable endcontrol circuit connector 1 0.25-2.5 mm² AWG 24...AWG 14)flexible with cable end, control circuit connector 1 0.2-2.5 mm² AWG 24...AWG 14)flexible without cable end, control circuit connector 1 0.2-2.5 mm² AWG 24...AWG 14)solid without cable end, control circuit connector 2 0.2-1 mm² AWG 24...AWG 14)flexible with cable end, control circuit connector 2 0.5-1.5 mm² AWG 24...AWG 14)flexible without cable end
Carbon Footprint Of The End-of-life Phase [C1 To C4]
1.035455053709204, 1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]
19 kg CO2 eq., 18.826549892268154
Local Data Status
Publishable
Return Indicator
Y
Stock Policy
2
Serviceability
Yes
Field Service Division
PPIBS
Weee Scope
In
Scope Perimeter
At least in Europe
End Of Life Doc Ref
ENVEOLI100411EN_V2
Reach Full Compliance Status Id
CONTAINS_SVHC
Rohs Eur In Scope
Yes
Rohs Eur Conformity Date
1902
China Rohs In Scope
Yes
With Recycled Cardboard
Yes
Product Contributes To Saved And Avoided Emissions
No
Tier
2
Function Option
Standard
Compatibility Code
LTMR
Current Consumption
8...62.8 mA
Current State 1 Guaranteed
logic input 79...264 V >= 2 mA 25 ms
Device Short Name
LTMR
Measurement Current
5-100 A
Product Availability
Stock - Normally stocked in distribution facility
Product Or Component Type
motor controller
Returnability
Yes
Supply Voltage Limits
93.5-264 V AC
Tightening Torque
control circuit: 0.5-0.6 N.m flat screwdriver 3 mm
Web Services
web server
Pep Code
ENVPEP0603008EN
Pep Verification Date
2025-11-10
Psr Version
PSR-0005-ed3.1-EN-2023 12 08
Data Source
extrapolated product
Functional-unit Quantity
1
Reference Lifetime, In Y
20
Energy Model - Installation [A5]
No energy used
Energy Model - End Of Life [C1-c4]
Global, European and French datasets are used.
Height Nominal
61 mm
[Us] Rated Supply Voltage
100...240 V AC 50/60 Hz
Halogen-free Status
Halogen free plastic parts product
Package Weight(Lbs)
534.0 g
Warranty (In Months)
18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Bus TypeCANopen ISO 1198 1...127 10...1000 kbit/s, SUB-D 9 4 twisted shielded pairs cable, CANopen ISO 1198 1...127 10...1000 kbit/s, terminal block 4 twisted shielded pairs cable
Electromagnetic Compatibilitycontrol circuit: surges (serial mode), 1 kV, conforming to EN/IEC 61000-4-5electrostatic discharge, 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2, communication: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5, relay outputs and supply: surges (serial mode), 2 kV, conforming to EN/IEC 61000-4-5, relay outputs and supply: surges (common mode), 4 kV, conforming to EN/IEC 61000-4-5, control circuit: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5, radiated RF fields, 3, 10 V/m, conforming to EN/IEC 61000-4-3, fast transients immunity test (other circuits), level 3, 2 kV, conforming to EN/IEC 61000-4-4, fast transients immunity test (on supply and relay outputs), level 4, 4 kV, conforming to EN/IEC 61000-4-4, voltage dips and interruptions immunity test, 70 %, 500 ms, conforming to EN/IEC 61000-4-11, conducted RF disturbances, 10 V, conforming to EN/IEC 61000-4-6, temperature sensor: surges (serial mode), 0.5 kV, conforming to EN/IEC 61000-4-5, temperature sensor: surges (common mode), 1 kV, conforming to EN/IEC 61000-4-5
Load Current5 A 250 V AC logic output, 5 A 30 V DC logic output
Mechanical Robustnessvibrations mounted on symmetrical rail1 Gn, 5...300 Hz EN/IEC 60068-2-6, vibrations plate mounted4 Gn, 5...300 Hz EN/IEC 60068-2-6, shocks half sine wave acceleration15 Gn for 11 ms EN/IEC 60068-2-27
Network And Machine Diagnosis Typeevent recording, trip history information, starting current and time, running hours counter/operating time, motor control command recording, remaining operating time before overload tripping, fault recording, phase fault and earth fault trip counters, waiting time after overload tripping, trip context information
Protection Typethermal protection, locked rotor, phase failure, earth-leakage protection, overload (long time), power factor variation, phase unbalance, load fluctuation, thermal overload protection, reverse polarity protection, overload
Certificate AgencyLROS (Lloyds register of shipping), DNV, UL, EAC, GL, CCC, BV, ABS, KERI, ATEX, NOM, RINA, RMRoS, C-tick, CSA
[Uimp] Rated Impulse Withstand Voltage4 kV supply, inputs and outputs EN/IEC 60947-4-1, 6 kV current or voltage measurement circuit EN/IEC 60947-4-1, 0.8 kV communication circuit EN/IEC 60947-4-1
Carbon Footprint Of The Distribution Phase [A4]0.06965546496059066, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.2 kg CO2 eq., 0.207023374425733
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]11 kg CO2 eq., 11.22355161504505
Local Publishable Date2026-04-10
Stocking FlagN
Device TypeRelay, Control & Measurement - Protection relay
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Connection Pitch5.08 mm
Current State 0 Guaranteedlogic input 0...40 V <= 15 mA 25 ms
Device Applicationequipment monitoring and control
Energy Efficiency OptimizedFalse
Overvoltage CategoryIII
Product NameTeSys T
RangeTeSys
Software Versionv6.2.5-6
Sustainable PackagingYes
Total Lifecycle Carbon Footprint31 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionOther switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; China, CN
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Europe, EU-27
Recyclability Potential, In %1
Width Nominal91 mm
Short-circuit Withstand100 kA conforming to EN/IEC 60947-4-1
Nbr. Of Units In Pkg.1
Take-backNo

Environment Attributes Main

Ambient Air Temperature For Storage
-40-80 °C, -40-80 °C
Take Back
No
Recycled Metal Content At Cr Level
0 %
Mercury Free
Yes
Ambient Air Temperature For Operation
-20-60 °C-20-60 °C
Environmental Disclosure
ENVPEP0603008EN
Halogen Content Performance
Halogen free plastic parts product
Packaging Made With Recycled Cardboard
Yes
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Pep Verification Date
2025-11-10
Psr Version
PSR-0005-ed3.1-EN-2023 12 08
Operating Altitude<= 6561.68 ft (2000 m) without derating, <= 6561.68 ft (2000 m) without derating<= 6561.68 ft (2000 m) without derating, <= 6561.68 ft (2000 m) without derating
Halogene PerformanceHalogen free plastic parts product
China Rohs RegulationX
Carbon Footprint31.362235400408732
Circularity ProfileENVEOLI100411EN_V2
Eu Rohs DirectiveCompliant By Exemption
Ip Degree Of ProtectionIP20
Packaging Without Single Use PlasticYes
Pep CodeENVPEP0603008EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review

General Attributes

Product Or Component Type
motor controller

ETIM

ETIM 8
EC002572
ETIM 9EC002572

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months

Input Attributes

Input Current
3.1 mA 100 V, 7.5 mA 240 V
Logic Input Number6
