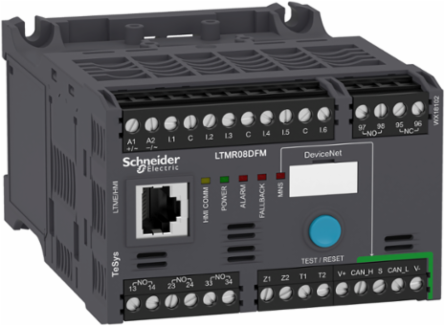

Schneider Electric LTMR08DFM TeSys T Motor Controller, 0.4-8 A, DeviceNet, 6 Inputs, 3 Outputs
Schneider Electric LTMR08DFM TeSys T Motor Controller, 0.4-8 A, DeviceNet, 6 Inputs, 3 Outputs
- MPN: LTMR08DFM
- PPN: SCH-LTMR08DFM
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2178.12/ EA
Description
TeSys T is a motor management system that provides full motor monitoring, control, and protection when used with short circuit protection and a contactor. TeSys T manages most critical processes while reducing downtime and increasing productivity. TeSys T is a flexible system that integrates seamlessly into your automation system through five major communication protocols. TeSys T predicts what will happen in the process, as it accurately monitors current, voltage, and power over a wide range. This controller is the central component in the motor management system. The module manages the basic functions of the motor management system. It manages the measurement of 3 phase current via integral current transformers from 0.4 to 100 A or up to 810 A by external current transformers. It also measures ground current with internal or external ground sensors, motor temperature and the inputs and outputs for the various motor control modes, detected fault management and other functions. DeviceNet protocol is used by this controller. This module has 6 discrete logic inputs, 3 relay logic outputs and a relay output for detected fault signaling overload relay. The current range of this controller is 0.4 to 8 amperes. 120 to 240 VAC is used to power this controller. Controller has the following certifications: UL, CSA NOM, ATEX, BV, EAC, RINA, LROS, DNV, ABS, GL, KERI, RMRoS, C-Tick and CCC.
Specifications
Environment
- Product Certifications
- KERI || LROS (Lloyds register of shipping) || CSA || ATEX || UL || DNV || C-Tick || RMRoS || CCC || RINA || ABS || EAC || GL || NOM || BV
- Ambient Air Temperature For Operation
- -20-60 °C
- Ambient Air Temperature For Storage
- -40-80 °C
- Operating Altitude
- <= 2000 m without derating
- Ip Degree Of Protection
- IP20
Mechanical Robustnessvibrations mounted on symmetrical rail1 Gn, 5...300 Hz EN/IEC 60068-2-6 || vibrations plate mounted4 Gn, 5...300 Hz EN/IEC 60068-2-6 || shocks half sine wave acceleration15 Gn for 11 ms EN/IEC 60068-2-27
StandardsUL 508 || IACS E10 || CSA C22.2 No 14 || IEC 60947-4-1 || EN 60947-4-1
Protective Treatment12 x 24 hour cycles EN/IEC 60068-2-30 || 48 h EN/IEC 60070-2-11 || TH EN/IEC 60068
Fire Resistance650 °C EN/IEC 60695-2-12 || 960 °C UL 94
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP060308EN_V2
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI100411EN_V2
- Halogen Content Performance
- Halogen free plastic parts product
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectiveCompliant with Exemptions
Complementary
- Contacts Type And Composition
- 1 NO + 1 NC fault signal || 3 NO
- Connection Pitch
- 5.08 mm
- Network And Machine Diagnosis Type
- running hours counter/operating time || starting current and time || fault recording || trip history information || trip context information || phase fault and earth fault trip counters || motor control command recording || event recording || waiting time after overload tripping || remaining operating time before overload tripping
- Logic Input Number
- 6
- Connections - Terminals
- control circuit connector 1 0.25-2.5 mm² AWG 24...AWG 14)flexible with cable end || control circuit connector 1 0.2-2.5 mm² AWG 24...AWG 14)flexible without cable end || control circuit connector 1 0.25-2.5 mm² AWG 24...AWG 14)flexible without cable end || control circuit connector 1 0.2-2.5 mm² AWG 24...AWG 14)solid without cable end || control circuit connector 2 0.2-1 mm² AWG 24...AWG 14)flexible with cable end || control circuit connector 2 0.2-1.5 mm² AWG 24...AWG 14)flexible without cable end || control circuit connector 2 0.5-1.5 mm² AWG 24...AWG 14)flexible without cable end || control circuit connector 2 0.2-1 mm² AWG 24...AWG 14)solid without cable end
- Current State 1 Guaranteed
- logic input 79...264 V >= 2 mA 25 ms
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV supply, inputs and outputs EN/IEC 60947-4-1 || 6 kV current or voltage measurement circuit EN/IEC 60947-4-1 || 0.8 kV communication circuit EN/IEC 60947-4-1
- Electromagnetic Compatibility
- electrostatic discharge, 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2 || communication: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5 || relay outputs and supply: surges (serial mode), 2 kV, conforming to EN/IEC 61000-4-5 || relay outputs and supply: surges (common mode), 4 kV, conforming to EN/IEC 61000-4-5 || control circuit: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5 || radiated RF fields, 3, 10 V/m, conforming to EN/IEC 61000-4-3 || fast transients immunity test (other circuits), level 3, 2 kV, conforming to EN/IEC 61000-4-4 || fast transients immunity test (on supply and relay outputs), level 4, 4 kV, conforming to EN/IEC 61000-4-4 || voltage dips and interruptions immunity test, 70 %, 500 ms, conforming to EN/IEC 61000-4-11 || conducted RF disturbances, 10 V, conforming to EN/IEC 61000-4-6 || temperature sensor: surges (serial mode), 0.5 kV, conforming to EN/IEC 61000-4-5 || temperature sensor: surges (common mode), 1 kV, conforming to EN/IEC 61000-4-5 || control circuit: surges (serial mode), 1 kV, conforming to EN/IEC 61000-4-5
- Current State 0 Guaranteed
- logic input 0...40 V <= 15 mA 25 ms
- Short-Circuit Withstand
- 100 kA conforming to EN/IEC 60947-4-1
- Protection Type
- thermal overload protection || phase failure || overload || load fluctuation || power factor variation || overload (long time) || earth-leakage protection || reverse polarity protection || thermal protection || phase unbalance || locked rotor
- Width
- 91 mm
- Tightening Torque
- control circuit 0.5-0.6 N.m flat 3 mm
- Depth
- 122.5 mm
- Metering Type
- imbalance current || earth-fault current || average current Iavg || temperature || phase current I1, I2, I3 RMS
Height61 mm
Permissible Power480 VA AC-15), Ie = 2 A, 500000 cycles output) || 30 W DC-13), Ie = 1.25 A, 500000 cycles output)
Pollution Degree3
Maximum Operating Rate1800 cyc/h
Input Current3.1 mA 100 V || 7.5 mA 240 V
Net Weight0.53 kg
Associated Fuse Rating4 A gG output || 0.5 A gG control circuit
Measurement Accuracy5...15 % earth fault current internal measurement || 1 % voltage 100...830 V) || 3 % power factor || 5 % earth fault current external measurement || +/- 30 min/year internal clock || 0,02 temperature || 1 % current || 5 % active and reactive power
[Ui] Rated Insulation Voltage690 V EN/IEC 60947-1 || 690 V CSA C22.2 No 14 || 690 V UL 508
Compatibility CodeLTMR
Web Servicesweb server
Load Current5 A 250 V AC logic output || 5 A 30 V DC logic output
Overvoltage CategoryIII
Maximum Operating Frequency2 Hz
Specifications
- Product Or Component Type
- motor controller
- Measurement Current
- 0.4-8 A
- Current Consumption
- 8...62.8 mA
- Communication Port Protocol
- DeviceNet
- Supply Voltage Limits
- 93.5-264 V AC
- Device Short Name
- LTMR
Product NameTeSys T
RangeTeSys
[Us] Rated Supply Voltage100...240 V AC 50/60 Hz
Bus TypeDeviceNet ISO 1198 1...64 125...500 kbit/s, terminal block 4 twisted shielded pairs cable
Device Applicationequipment monitoring and control
