TeSys T Motor Controller 5-100A 24VDC Ethernet/IP Modbus/TCP
Schneider Electric

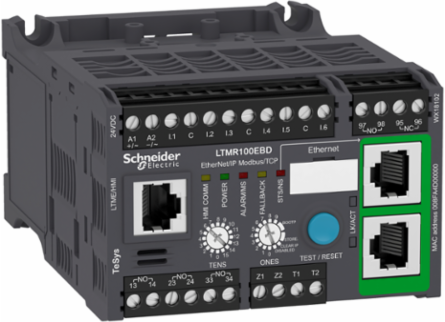

Schneider Electric LTMR100EBD TeSys T Motor Controller 5-100A 24VDC Ethernet/IP Modbus/TCP

  • MPN: LTMR100EBD
  • PPN: SCH-LTMR100EBD

CAD

$2768.92

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

TeSys T Motor Controller 5-100A 24VDC Ethernet/IP Modbus/TCP

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Brazil, China, Costa Rica, France, South Korea, Singapore, United States
Depth122.5 mm

Communications & Management Attributes

Communication Port Protocol
Modbus TCP/EtherNet/IP

Complementary Attributes

Maximum Operating Frequency
2 Hz
Maximum Operating Rate1800 cyc/h

Important Information Attributes

Persona Type Ids
EU, LC, OM, OM8, PB
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Associated Fuse Rating
4 A gG output, 0.5 A gG control circuit
Electromagnetic Compatibility
temperature sensor: surges (common mode), 1 kV, conforming to EN/IEC 61000-4-5, control circuit: surges (serial mode), 1 kV, conforming to EN/IEC 61000-4-5electrostatic discharge, 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2, control circuit: surges (common mode), 1 kV, conforming to EN/IEC 61000-4-5, communication: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5, relay outputs and supply: surges (serial mode), 2 kV, conforming to EN/IEC 61000-4-5, relay outputs and supply: surges (common mode), 4 kV, conforming to EN/IEC 61000-4-5, radiated RF fields, 3, 10 V/m, conforming to EN/IEC 61000-4-3, fast transients immunity test (other circuits), level 3, 2 kV, conforming to EN/IEC 61000-4-4, fast transients immunity test (on supply and relay outputs), level 4, 4 kV, conforming to EN/IEC 61000-4-4, voltage dips and interruptions immunity test, 70 %, 500 ms, conforming to EN/IEC 61000-4-11, conducted RF disturbances, 10 V, conforming to EN/IEC 61000-4-6, temperature sensor: surges (serial mode), 0.5 kV, conforming to EN/IEC 61000-4-5
Load Current
5 A 250 V AC logic output, 5 A 30 V DC logic output
Mechanical Robustness
vibrations mounted on symmetrical rail1 Gn, 5...300 Hz EN/IEC 60068-2-6, vibrations plate mounted4 Gn, 5...300 Hz EN/IEC 60068-2-6, shocks half sine wave acceleration15 Gn for 11 ms EN/IEC 60068-2-27
Network And Machine Diagnosis Type
fault recording, trip context information, waiting time after overload tripping, trip history information, running hours counter/operating time, motor control command recording, starting current and time, phase fault and earth fault trip counters, event recording, remaining operating time before overload tripping
Protection Type
locked rotor, overload, thermal overload protection, earth-leakage protection, reverse polarity protection, overload (long time), power factor variation, phase unbalance, load fluctuation, phase failure, thermal protection
Certificate Agency
C-tick, KERI, BV, ABS, NOM, LROS (Lloyds register of shipping), RMRoS, RINA, GL, DNV, ATEX, CCC, EAC, UL, CSA
[Uimp] Rated Impulse Withstand Voltage
6 kV current or voltage measurement circuit EN/IEC 60947-4-1, 0.8 kV communication circuit EN/IEC 60947-4-1, 0.8 kV supply, inputs and outputs EN/IEC 60947-4-1
Carbon Footprint Of The Distribution Phase [A4]
0.06743796888506624, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]
0.2 kg CO2 eq., 0.20043274265562538
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
5 kg CO2 eq., 4.971249437669018
Local Publishable Date
2026-04-10
Stocking Flag
N
Device Type
Relay, Control & Measurement - Protection relay
Traceability
Yes
Average Life Duration
15 year(s)
Weee Product Category
5
Eoli Availability Display
Yes
Reach Full Compliance Status
Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive
Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status
Compliant By Exemption
Rohs Eur Full Compliance Status
Compliant By Exemption
China Rohs Label
7
Without Single Use Plastic
Yes
Tier Id
2
Function Option Id
STANDARD
Product Kit Identifier
N
Compatibility Code
LTMR
Current Consumption
56...127 mA
Current State 1 Guaranteed
logic input < 15 V 2...15 mA 15 ms
Device Short Name
LTMR
Measurement Current
5-100 A
Product Availability
Stock - Normally stocked in distribution facility
Product Or Component Type
motor controller
Returnability
Yes
Supply Voltage Limits
20.4-26.24 V DC
Tightening Torque
control circuit: 0.5-0.6 N.m flat screwdriver 3 mm
Web Services
web server
Pep Code
ENVPEP0603008EN
Pep Verification Date
2025-11-10
Psr Version
PSR-0005-ed3.1-EN-2023 12 08
Data Source
extrapolated product
Functional-unit Quantity
1
Reference Lifetime, In Y
20
Energy Model - Installation [A5]
No energy used
Energy Model - End Of Life [C1-c4]
Global, European and French datasets are used.
Height Nominal
61 mm
[Us] Rated Supply Voltage
24 V DC
Halogen-free Status
Halogen free plastic parts product
Package Weight(Lbs)
517.000 g
Warranty (In Months)
18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Contacts Type And Composition1 NO + 1 NC fault signal, 3 NO
Fire Resistance650 °C EN/IEC 60695-2-12, 960 °C UL 94
Measurement Accuracy+/- 30 min/year internal clock, +/- 30 min/year internal clock5...15 % earth fault current internal measurement, 1 % voltage 100...830 V), 3 % power factor, 5 % earth fault current external measurement, +/- 30 min/year internal clock, +/- 30 min/year internal clock, 0,02 Temperature, 5 % active and reactive power, 0,02 current
Metering Typeaverage current Iavg, earth-fault current, temperature, phase current I1, I2, I3 RMS, imbalance current
Permissible Power480 VA AC-15), Ie = 2 A, 500000 cycles output), 30 W DC-13), Ie = 1.25 A, 500000 cycles output)
Protective Treatment12 x 24 hour cycles EN/IEC 60068-2-30, 48 h EN/IEC 60070-2-11, TH EN/IEC 60068
[Ui] Rated Insulation Voltage690 V EN/IEC 60947-1, 690 V CSA C22.2 No 14, 690 V UL 508
Connections - Terminalscontrol circuit connector 1 0.25-2.5 mm² AWG 24...AWG 14)flexible without cable end, control circuit connector 2 0.2-1.5 mm² AWG 24...AWG 14)flexible without cable end, control circuit connector 2 0.2-1 mm² AWG 24...AWG 14)solid without cable endcontrol circuit connector 1 0.25-2.5 mm² AWG 24...AWG 14)flexible with cable end, control circuit connector 1 0.2-2.5 mm² AWG 24...AWG 14)flexible without cable end, control circuit connector 1 0.2-2.5 mm² AWG 24...AWG 14)solid without cable end, control circuit connector 2 0.2-1 mm² AWG 24...AWG 14)flexible with cable end, control circuit connector 2 0.5-1.5 mm² AWG 24...AWG 14)flexible without cable end
Carbon Footprint Of The End-of-life Phase [C1 To C4]1.0024911287783866, 1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]18 kg CO2 eq., 18.227202798319546
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityYes
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI100411EN_V2
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1902
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Bus TypeEthernet IEEE 802.3 0...159 10...100 Mbit/s, RJ45 2 shielded twisted pairs
Connection Pitch5.08 mm
Current State 0 Guaranteedlogic input < 5 V <= 15 mA 5 ms
Device Applicationequipment monitoring and control
Energy Efficiency OptimizedFalse
Overvoltage CategoryIII
Product NameTeSys T
RangeTeSys
Software Versionv6.2.5-6
Sustainable PackagingYes
Total Lifecycle Carbon Footprint24 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionOther switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; China, CN
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Europe, EU-27
Recyclability Potential, In %1
Width Nominal91 mm
Short-circuit Withstand100 kA conforming to EN/IEC 60947-4-1
Nbr. Of Units In Pkg.1
Take-backNo

Environment Attributes Main

Ambient Air Temperature For Storage
-40-80 °C, -40-80 °C
Take Back
No
Recycled Metal Content At Cr Level
0 %
Mercury Free
Yes
Ambient Air Temperature For Operation
-20-60 °C-20-60 °C
Environmental Disclosure
ENVPEP0603008EN
Halogen Content Performance
Halogen free plastic parts product
Packaging Made With Recycled Cardboard
Yes
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Pep Verification Date
2025-11-10
Psr Version
PSR-0005-ed3.1-EN-2023 12 08
Operating Altitude<= 6561.68 ft (2000 m) without derating, <= 6561.68 ft (2000 m) without derating<= 6561.68 ft (2000 m) without derating, <= 6561.68 ft (2000 m) without derating
Halogene PerformanceHalogen free plastic parts product
China Rohs RegulationX
Carbon Footprint24.468814076307645
Circularity ProfileENVEOLI100411EN_V2
Eu Rohs DirectiveCompliant By Exemption
Ip Degree Of ProtectionIP20
Packaging Without Single Use PlasticYes
Pep CodeENVPEP0603008EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review

General Attributes

Product Or Component Type
motor controller

ETIM

ETIM 8
EC002572
ETIM 9EC002572

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months

Input Attributes

Input Current
7 mA
Logic Input Number6
