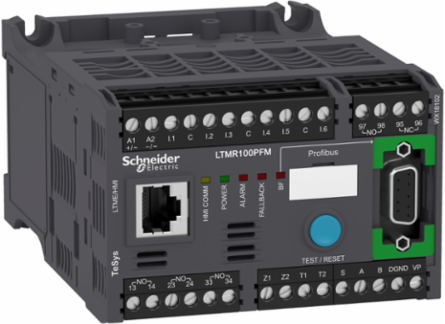

Schneider Electric LTMR100PFM TeSys T Motor Controller, 5-100A, Profibus DP, 100-240VAC
- MPN: LTMR100PFM
- PPN: SCH-LTMR100PFM
CAD
$2651.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric LTMR100PFM TeSys T Motor Controller stands out in the realm of automation and control by delivering reliable performance for motor management. Designed to accommodate a current range of 5 to 100 amps, it operates effectively within a voltage range of 100 to 240 VAC, making it versatile for various applications. Enhanced with Profibus DP connectivity, this motor controller facilitates seamless integration into existing control networks, ensuring optimal communication and control over motor operations. Its robust design and advanced features make it an essential component for efficient motor management in industrial settings.
Documentation & Downloads
Specifications
Additional
- Measurement Current
- 5-100 A
- Current Consumption
- 8-62.8 mA
- Short-Circuit Withstand
- 100 kA EN/IEC 60947-4-1
- Protection Type
- Thermal overload, Overload, Locked rotor, Reverse polarity, Phase unbalance, Earth-leakage, Phase failure, Load fluctuation, Thermal protection, Power factor variation, Overload (long time)
- Input Current
- 3.1 mA 100 V, 7.5 mA 240 V
- Load Current
- 5 A 250 V AC, 5 A 30 V DC
- Maximum Operating Rate
- 1800 cyc/h
- Measurement Accuracy
- 5-15 % earth fault current internal and external, 1 % voltage (100-830 V), 3 % power factor, 0.02 temperature, 5 % active/reactive power, 0.02 current
- Connection Pitch
- 5.08 mm (0.20 in)
- Tightening Torque
- 0.5-0.6 N.m control circuit flat 3 mm
- Electromagnetic Compatibility
- Conforms to EN/IEC 61000-4-2,-3,-4,-5,-6,-11 with electrostatic discharge, surges, RF fields, fast transients, voltage dips immunity tests
- Net Weight
- 0.53 kg (1.17 lb)
- Ambient Air Temperature for Operation
- -20 to 60 °C (-4 to 140 °F)
- Operating Altitude
- ≤ 2000 m (6561.68 ft) without derating
- Fire Resistance
- 650 °C EN/IEC 60695-2-12, 960 °C UL 94
- Device Short Name
- LTMR
- Web Services
- Web server
- Bus Type
- Profibus DP polarised 2-wire RS485, SUB-D 9, terminal block 2 shielded twisted pairs type A, 1-125 devices, 9.6 kbit/s to 12 Mbit/s
- Product Certifications
- KERI, RMRoS, ABS, UL, ATEX, NOM, RINA, BV, CCC, GL, DNV, CSA, LROS (Lloyds Register of Shipping), EAC, C-Tick
- Country of Origin
- China (CN)
- Mercury Free
- Yes
- Halogen Content
- Halogen free plastic parts
Voltage100-240 V AC 50/60 Hz
Supply Voltage Limits93.5-264 V AC
Associated Fuse Rating4 A gG output, 0.5 A gG control circuit
Logic Inputs6
Maximum Output Switching Frequency2 Hz
Permissible Power480 VA AC-15, 30 W DC-13
Contacts Type and Composition1 NO + 1 NC fault signal, 3 NO
Overvoltage CategoryIII
Terminal Wire Size RangeAWG 24-14, 0.2-2.5 mm²
Pollution Degree3
Dimensions (W x H x D)91 x 61 x 122.5 mm (3.58 x 2.40 x 4.82 in)
StandardsEN 60947-4-1, IACS E10, CSA C22.2 No 14, UL 508, IEC 60947-4-1
Ambient Air Temperature for Storage-40 to 80 °C (-40 to 176 °F)
IP Degree of ProtectionIP20
Product Or Component TypeMotor controller
Device ApplicationEquipment monitoring and control
Communication ProtocolProfibus DP
RangeTeSys
Mechanical RobustnessVibrations: 1 Gn, 5-300 Hz (rail mounted); 4 Gn, 5-300 Hz (plate mounted); Shocks: 15 Gn 11 ms half sine wave (EN/IEC 60068-2-6 and 60068-2-27)
RoHS ComplianceCompliant with exemptions (EU and China RoHS)
PVC FreeYes
Warranty18 months
