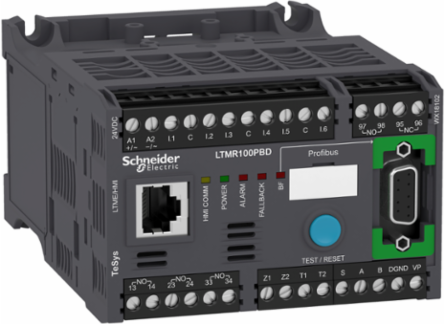

Schneider Electric LTMR100PBD TeSys T Motor Controller, 5-100A, Profibus DP, 6 Inputs, 3 Outputs
- MPN: LTMR100PBD
- PPN: SCH-LTMR100PBD
CAD
$2651.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys T is a motor management system that provides full motor monitoring, control, and protection when used with short circuit protection and a contactor. TeSys T manages most critical processes while reducing downtime and increasing productivity. TeSys T is a flexible system that integrates seamlessly into your automation system through five major communication protocols. TeSys T predicts what will happen in the process, as it accurately monitors current, voltage, and power over a wide range. This controller is the central component in the motor management system. The module manages the basic functions of the motor management system. It manages the measurement of 3 phase current via integral current transformers from 0.4 to 100 A or up to 810 A by external current transformers. It also measures ground current with internal or external ground sensors, motor temperature and the inputs and outputs for the various motor control modes, detected fault management and other functions. Profibus DP protocol is used by this controller. This module has 6 discrete logic inputs, 3 relay logic outputs and a relay output for detected fault signaling overload relay. The current range of this controller is 5 to 100 amperes. 24 VDC is used to power this controller. Controller is 2.40 inches tall, 3.58 inches wide and 4.82 inches deep. Controller weighs 1.17 lbs. Controller has the following certifications: UL, CSA NOM, ATEX, BV, EAC, RINA, LROS, DNV, ABS, GL, KERI, RMRoS, C-Tick and CCC.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, South Korea, Mexico, United States
Depth122.5 mm
Communications & Management Attributes
- Communication Port Protocol
- Profibus DP
Complementary Attributes
- Maximum Operating Frequency
- 2 Hz
Maximum Operating Rate1800 cyc/h
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Bus Type
- Profibus DP polarised 2-wire RS485 1...125 9.6 kbit/s...12 Mbit/s, SUB-D 9 2 shielded twisted pairs, type A, Profibus DP polarised 2-wire RS485 1...125 9.6 kbit/s...12 Mbit/s, terminal block 2 shielded twisted pairs, type A
- Electromagnetic Compatibility
- temperature sensor: surges (common mode), 1 kV, conforming to EN/IEC 61000-4-5, control circuit: surges (serial mode), 1 kV, conforming to EN/IEC 61000-4-5, electrostatic discharge, 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2, control circuit: surges (common mode), 1 kV, conforming to EN/IEC 61000-4-5communication: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5relay outputs and supply: surges (serial mode), 2 kV, conforming to EN/IEC 61000-4-5, relay outputs and supply: surges (common mode), 4 kV, conforming to EN/IEC 61000-4-5, radiated RF fields, 3, 10 V/m, conforming to EN/IEC 61000-4-3fast transients immunity test (other circuits), level 3, 2 kV, conforming to EN/IEC 61000-4-4fast transients immunity test (on supply and relay outputs), level 4, 4 kV, conforming to EN/IEC 61000-4-4, voltage dips and interruptions immunity test, 70 %, 500 ms, conforming to EN/IEC 61000-4-11, conducted RF disturbances, 10 V, conforming to EN/IEC 61000-4-6temperature sensor: surges (serial mode), 0.5 kV, conforming to EN/IEC 61000-4-5
- Metering Type
- imbalance current, temperature, average current Iavg, phase current I1, I2, I3 RMS, earth-fault current
- Permissible Power
- 480 VA AC-15), Ie = 2 A, 500000 cycles output), 30 W DC-13), Ie = 1.25 A, 500000 cycles output)
- Certificate Agency
- CSA, C-tick, DNV, RMRoS, ATEX, EAC, RINA, CCC, KERI, GL, NOM, UL, LROS (Lloyds register of shipping), ABS, BV
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV current or voltage measurement circuit EN/IEC 60947-4-10.8 kV communication circuit EN/IEC 60947-4-1, 0.8 kV supply, inputs and outputs EN/IEC 60947-4-1
- Carbon Footprint Of The Distribution Phase [A4]
- 0.06809017361316166, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.2 kg CO2 eq., 0.20237116376448055
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 5 kg CO2 eq., 4.971249437669018
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- N
- Device Type
- Relay, Control & Measurement - Protection relay
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Compatibility Code
- LTMR
- Current Consumption
- 56...127 mA
- Current State 1 Guaranteed
- logic input < 15 V 2...15 mA 15 ms
- Device Short Name
- LTMR
- Fire Resistance
- 650 °C EN/IEC 60695-2-12960 °C UL 94
- Measurement Current
- 5-100 A
- Overvoltage Category
- III
- Product Name
- TeSys T
- Protective Treatment
- 12 x 24 hour cycles EN/IEC 60068-2-3048 h EN/IEC 60070-2-11TH EN/IEC 60068
- Returnability
- Yes
- Supply Voltage Limits
- 20.4-26.24 V DC
- Tightening Torque
- control circuit: 0.5-0.6 N.m flat screwdriver 3 mm
- Web Services
- web server
- Pep Code
- ENVPEP0603008EN
- Pep Verification Date
- 2025-11-10
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 61 mm
- [Us] Rated Supply Voltage
- 24 V DC
- Halogen-free Status
- Halogen free plastic parts product
- Package Weight(Lbs)
- 522.0 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Contacts Type And Composition1 NO + 1 NC fault signal, 3 NO
Measurement Accuracy+/- 30 min/year internal clock, +/- 30 min/year internal clock, 5...15 % earth fault current internal measurement, 1 % voltage 100...830 V)3 % power factor5 % earth fault current external measurement, +/- 30 min/year internal clock, +/- 30 min/year internal clock0,02 Temperature, 5 % active and reactive power, 0,02 current
Network And Machine Diagnosis Typetrip context information, event recording, waiting time after overload tripping, running hours counter/operating time, remaining operating time before overload tripping, fault recording, motor control command recording, trip history information, phase fault and earth fault trip counters, starting current and time
Protection Typeload fluctuation, reverse polarity protection, locked rotor, thermal protection, (long time), overload, power factor variation, earth-leakage protection, thermal overload protection, phase unbalance, phase failure
[Ui] Rated Insulation Voltage690 V EN/IEC 60947-1, 690 V CSA C22.2 No 14, 690 V UL 508
Connections - Terminalscontrol circuit connector 1 0.25-2.5 mm² 24 AWG...14 AWG)flexible without cable end, control circuit connector 2 0.2-1.5 mm² 24 AWG...14 AWG)flexible without cable endcontrol circuit connector 2 0.2-1 mm² 24 AWG...14 AWG)solid without cable endcontrol circuit connector 1 0.25-2.5 mm² 24 AWG...14 AWG)flexible with cable endcontrol circuit connector 1 0.2-2.5 mm² 24 AWG...14 AWG)flexible without cable end, control circuit connector 1 0.2-2.5 mm² 24 AWG...14 AWG)solid without cable end, control circuit connector 2 0.2-1 mm² 24 AWG...14 AWG)flexible with cable end, control circuit connector 2 0.5-1.5 mm² 24 AWG...14 AWG)flexible without cable end
Carbon Footprint Of The End-of-life Phase [C1 To C4]1.0121864008168624, 1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]18 kg CO2 eq., 18.40348135536325
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityYes
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI100411EN_V2
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1902
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Associated Fuse Rating4 A gG output0.5 A gG control circuit
Connection Pitch5.08 mm
Current State 0 Guaranteedlogic input < 5 V <= 15 mA 5 ms
Device Applicationequipment monitoring and control
Energy Efficiency OptimizedFalse
Load Current5 A 250 V AC logic output5 A 30 V DC logic output
Mechanical Robustnessvibrations mounted on symmetrical rail1 Gn, 5...300 Hz EN/IEC 60068-2-6vibrations plate mounted4 Gn, 5...300 Hz EN/IEC 60068-2-6shocks half sine wave acceleration15 Gn for 11 ms EN/IEC 60068-2-27
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typemotor controller
RangeTeSys
Software Versionv6.2.5-6
Sustainable PackagingYes
Total Lifecycle Carbon Footprint25 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionOther switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; China, CN
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Europe, EU-27
Recyclability Potential In %1
Width Nominal91 mm
Short-circuit Withstand100 kA conforming to EN/IEC 60947-4-1
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8537109160
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-80 °C, -40-80 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -20-60 °C-20-60 °C
- Environmental Disclosure
- ENVPEP0603008EN
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-11-10
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Operating Altitude<= 6561.68 ft (2000 m) without derating, <= 6561.68 ft (2000 m) without derating<= 6561.68 ft (2000 m) without derating, <= 6561.68 ft (2000 m) without derating
Halogene PerformanceHalogen free plastic parts product
China Rohs RegulationX
Carbon Footprint24.657378531226772
Circularity ProfileENVEOLI100411EN_V2
Eu Rohs DirectiveCompliant By Exemption
Ip Degree Of ProtectionIP20
Packaging Without Single Use PlasticYes
Pep CodeENVPEP0603008EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- motor controller
ETIM
- ETIM 8
- EC002572
ETIM 9EC002572
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Input Current
- 7 mA
Logic Input Number6
