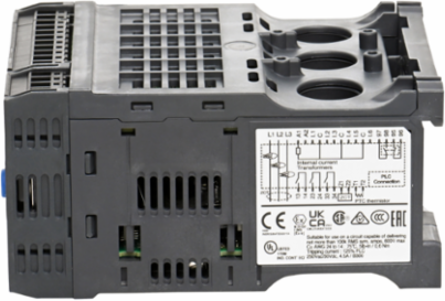

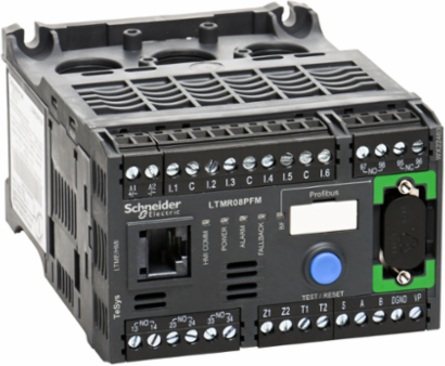

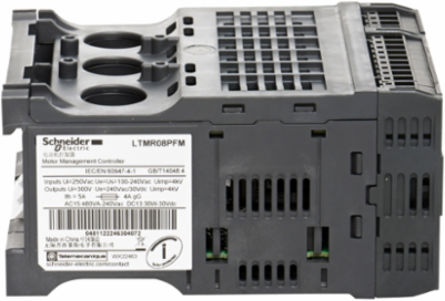

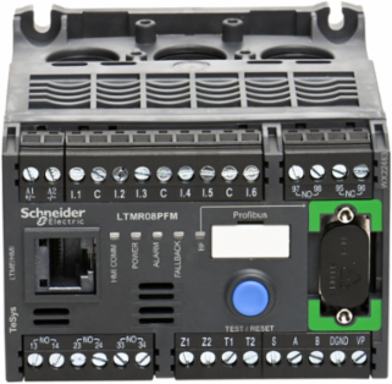

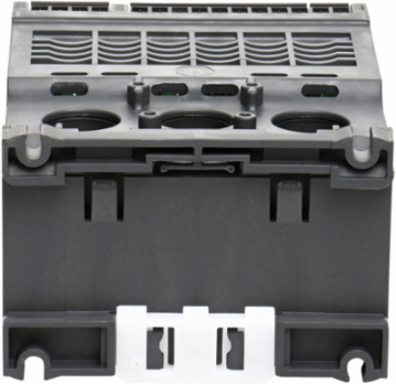

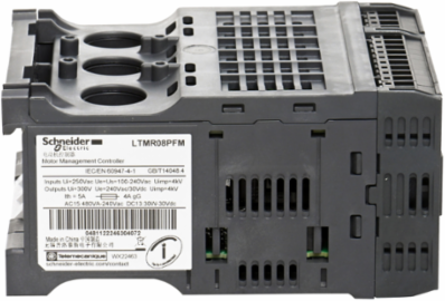

Schneider Electric LTMR08PFM TeSys T Motor Controller, 0.4-8A, 100-240VAC, Profibus DP, 6 Inputs, 3 Outputs
- MPN: LTMR08PFM
- PPN: SCH-LTMR08PFM
CAD
$2651.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric LTMR08PFM TeSys T Motor Controller is a state-of-the-art device designed for seamless automation and control of motor operations. With its Profibus DP communication capabilities and six inputs, this controller efficiently manages motors ranging from 0.4 to 8A and operates within a voltage range of 100-240VAC. Ideal for integration into various industrial automation systems, its robust design ensures reliable performance and precision control, making it a valuable asset for improving operational efficiency in motor-driven applications.
Documentation & Downloads
Specifications
Additional
- Product Type
- motor controller
- Supply Voltage
- 100-240 V AC 50/60 Hz
- Current Consumption
- 8-62.8 mA
- Permissible Power
- 480 VA AC-15, 30 W DC-13
- Maximum Output Switching Frequency
- 2 Hz
- Rated Impulse Withstand Voltage
- 4 kV supply, 6 kV current/voltage circuit, 0.8 kV communication circuit (EN/IEC 60947-4-1)
- Associated Fuse Rating
- 4 A gG output, 0.5 A gG control circuit
- Logic Input Number
- 6
- Measurement Accuracy
- 1% voltage (100-830 V), 3% power factor, 5-15% earth fault current internal, 5% earth fault current external, 1% current, 5% active/reactive power
- Connection Pitch
- 5.08 mm (0.20 in)
- Tightening Torque
- 0.5-0.6 N·m (4.43-5.31 lbf.in)
- Electromagnetic Compatibility
- Conforms to EN/IEC 61000-4 series with electrostatic discharge 3-8 kV air, 6 kV contact, surges, radiated RF, fast transients, voltage dips
- Net Weight
- 0.53 kg (1.17 lb)
- Product Certifications
- CSA, UL, CCC, LROS, NOM, ABS, GL, EAC, BV, DNV, RINA, RMRS, ATEX, KERI, C-Tick
- Fire Resistance
- 650 °C (1202 °F) EN/IEC 60695-2-12, 960 °C (1760 °F) UL 94
- Ambient Air Temperature for Storage
- -40 to 80 °C (-40 to 176 °F)
- Mechanical Robustness
- Vibrations 1 Gn symm. rail mounting, 4 Gn plate mounting; Shocks 15 Gn half sine 11 ms
- Country of Origin
- China
- Logic Input Voltage State 1
- 79-264 V ≥ 2 mA 25 ms
- Network and Machine Diagnosis Type
- phase and earth fault trip counters, trip history, starting current/time, fault recording, event recording, motor control command recording, running hours counter, trip context, remaining operating time
- Device Application
- equipment monitoring and control
- Mercury Free
- Yes
- Reach Regulation
- Contains Substances of Very High Concern above threshold
Measurement Current0.4-8 A
Supply Voltage Limits93.5-264 V AC
Load Current5 A 250 V AC logic output, 5 A 30 V DC logic output
Maximum Operating Rate1800 cyc/h
Rated Insulation Voltage690 V EN/IEC 60947-1, CSA C22.2 No 14, UL 508
Short-Circuit Withstand100 kA conforming to EN/IEC 60947-4-1
Protection Typelocked rotor, overload, phase unbalance, phase failure, earth-leakage, reverse polarity, load fluctuation, thermal, power factor variation, thermal overload, overload (long time)
Contacts Type and Composition1 NO + 1 NC fault signal, 3 NO
Overvoltage CategoryIII
Terminal Wire Size RangeAWG 24...AWG 14 (0.2-2.5 mm²)
Pollution Degree3
Dimensions (W x H x D)91 mm x 61 mm x 122.5 mm (3.58 in x 2.40 in x 4.82 in)
StandardsUL 508, IEC 60947-4-1, EN 60947-4-1, IACS E10, CSA C22.2 No 14
Protective Treatment12 x 24 hour cycles EN/IEC 60068-2-30, 48 h EN/IEC 60070-2-11, TH EN/IEC 60068
Ambient Air Temperature for Operation-20 to 60 °C (-4 to 140 °F)
Operating Altitude≤ 2000 m (6561.68 ft) without derating
Degree of ProtectionIP20
Logic Input Voltage State 00-40 V ≤ 15 mA 25 ms
Bus TypeProfibus DP polarised 2-wire RS485, 1-125 devices, 9.6 kbit/s to 12 Mbit/s, SUB-D 9 or terminal block, 2 shielded twisted pairs, type A
Metering Typeaverage current, earth-fault current, temperature, imbalance current, phase current RMS
Pvc FreeYes
Halogen ContentHalogen free plastic parts
