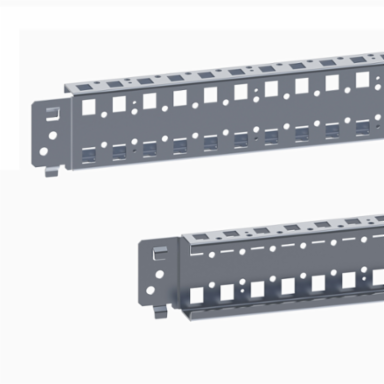

Schneider Electric NSYSQCR6540 Quick Fixing Cross Rails 400mm x 65mm, Set of 2, Galvanized Steel
Schneider Electric NSYSQCR6540 Quick Fixing Cross Rails 400mm x 65mm, Set of 2, Galvanized Steel
- MPN: NSYSQCR6540
- PPN: SCH-NSYSQCR6540
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$48.23/ EA
Description

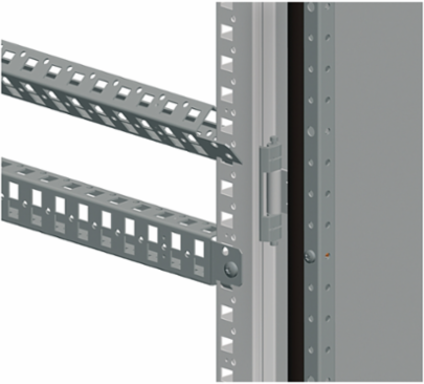

Spacial SF/SM quick fixing cross rails. 64 mm (2 rows) x 400 mm. Simple perforated 25 mm pitch. Does not require fixing support disposes of a wing on each end. In zinc-plated steel and with 1,5 mm thickness. Set of 2.
Specifications
Complementary Attributes
- Maximum Load
- 100 kg
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- fixing elements, 2 cross rails
- Fixing Mode
- by screws, clipped - on structure
- Carbon Footprint Of The Distribution Phase A4
- 0.158618587, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.18270881, 0.2 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2026-04-18
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Adjustment
- adjustable with a pitch of 25 mm
- Energy Efficiency Optimized
- False
- Mounting Support
- adaptation profile, on SM enclosures
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Returnability
- No
- Surface Finish
- galvanized
- Thickness
- 1.5 mm
- Accessory Separate Part Category
- mounting accessory
- Pep Code
- ENVPEP1109023EN
- Pep Verification Date
- 2023-03-30
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional Unit Quantity
- 1
- Reference Lifetime In Y2
- 20
- Recyclability Potential In 2
- 98
- Pn
- 1
- Height Useful
- useful: 310 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -
Mounting Locationon structure of enclosure, between cross rails
Carbon Footprint Of The End Of Life Phase C1 To C42 kg CO2 eq., 1.937098426
Carbon Footprint Of The Manufacturing Phase A1 To A34 kg CO2 eq., 3.580377615
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Applicationmulti-purpose
Materialsteel
Number Of Horizontal Rows2
Product Or Component Typequick cross rails
RangePanelSeT
Software Versionv5.9.4
Sustainable PackagingNo
Total Lifecycle Carbon Footprint6 kg CO2 eq.
Warranty In Months18
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
Functional Unit Unitunit
Energy Model Manufacturing A1 A3 2Electricity Mix; Production mix; Low voltage; FR
Offer Owner Code190789
Height Nominalnominal: 400 mm
Width Nominal65 mm
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 5.858803438
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-03-30
- Psr Version
- PSR-0005-ed2-2016 03 29
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1109023EN
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP1109023EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- quick cross rails
ETIM
- ETIM 8
- EC002620
ETIM 9EC002620
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Country of Origin
- Egypt, Spain, India
- Depth
- 27 mm
Height12.2 in
