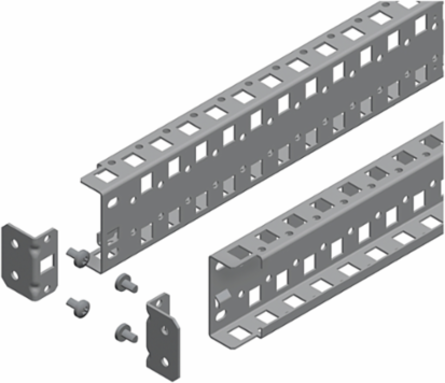

Schneider Electric NSYSUCR65160 65mm x 1600mm Universal Cross Rails, Set of 2, Galvanized Steel
- MPN: NSYSUCR65160
- PPN: SCH-NSYSUCR65160
CAD
$169.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Spacial SF/SM universal perforated cross rails. 64 mm (2 rows) x 1600 mm. Perforated on 25 mm pitch. In zinc-plated steel, thickness 1.5 mm. Set of 2.
Documentation & Downloads
Specifications
Key Specifications
| Height | 59.33 in |
|---|---|
| Country of Origin | Brazil, Egypt, Spain, India |
| Width | 2.56 in |
|---|---|
| Depth | 27 mm |
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Enclosure Nominal Dimensions | - H: 1600 mm, - H: 1600 mm, - H: 1600 mm, - H: 1600 mm |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Application | multi-purpose |
| Fixing Mode | by screws |
| Material | steel |
| Number Of Horizontal Rows | 2 |
| Product Or Component Type | universal cross rail |
| Range | PanelSeT |
| Surface Finish | galvanized |
| Thickness | 1.5 mm |
| Height Nominal | nominal: 1600 mm |
| Width Nominal | 65 mm |
| Accessory / Separate Part Category | mounting accessory |
| Package Weight(Lbs) | 3.756 kg |
| Warranty (In Months) | 18 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Mounting Location | between cross rails, on structure of enclosure |
| Local Publishable Date | 2026-04-15 |
| Stocking Flag | Y |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1916 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Adjustment | adjustable with a pitch of 25 mm |
| Device Composition | fixing elements2 cross rails4 supports |
| Installation Direction | vertical |
| Mounting Support | adaptation profile, on SM enclosures |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Quantity Per Set | set of 1 |
| Returnability | No |
| Sustainable Packaging | No |
| Pep Code | ENVPEP1109023EN |
| Height Useful | useful: 1507 mm |
| Width Real | 65 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 9403999045 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Environmental Disclosure | ENVPEP1109023EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP1109023EN |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | universal cross rail |
|---|
ETIM
| ETIM 8 | EC002620 |
|---|
| ETIM 9 | EC002620 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
