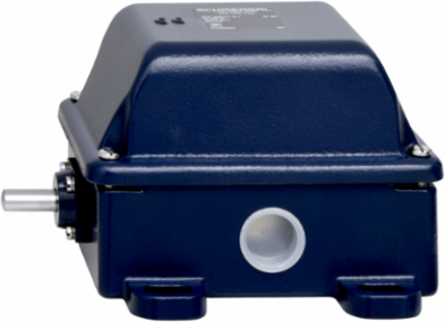

Schmersal 101056924 Heavy-Duty Position Switch - 2 x 4 mm Contact Opening, Metal Enclosure, 156 mm Width
- MPN: 101056924
- PPN: SCM-101056924
CAD
$913.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Heavy-Duty Position Switch - 2 x 4 mm Contact Opening, Metal Enclosure, 156 mm Width
Features
- Metal enclosure

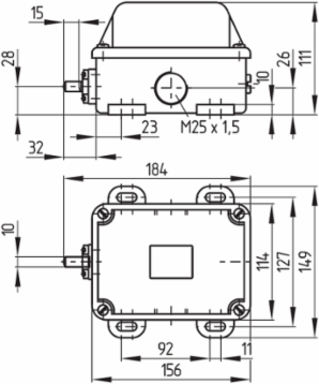

- 184 mm x 111 mm x 149 mm (basic component)
- 2 cable entries M 25 x 1.5
- 3 or 4 Contacts
- Actuator heads can be repositioned by 4 x 90°
Documentation & Downloads
Specifications
Electrical data
- Thermal test current
- 25 A
- Utilisation category AC-15
- 25 A
- Note (Switching element)
- galvanically separated contact bridges
- Switching frequency
- 1,000 /h
Utilisation category AC-15400 VAC

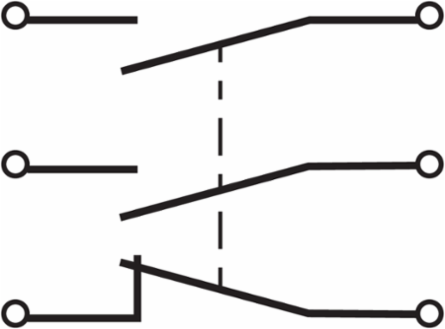

Switching elementNO contact / NC contact
Switching principleSnap switch element
Mechanical data - Dimensions
- Length of sensor
- 149 mm
- Height of sensor
- 111 mm
Width of sensor156 mm

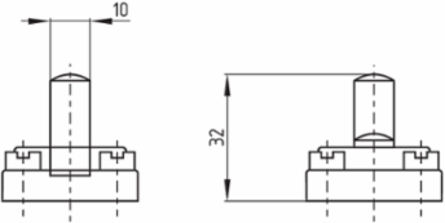

Diameter of the Plunger10 mm
Ambient conditions - Insulation value
- Rated insulation voltage U
- 500 V
Rated impulse withstand voltage U6 kV
Safety appraisal - Safety outputs
- B10d Normally-closed contact (NC)
- 2,000,000 Operations
General data - Features
- Number of openers
- 1
Number of shutters2
General data
- Standards
- EN 60947-5-1
- Slide form
- Sphere
- Enclosure coating material
- painted
- Gross weight
- 3,550 g
Active principlemechanical
Enclosure materialGrey cast iron, galvanised
Material of the contacts, electricalSilver
Ambient conditions
- Degree of protection
- IP65 to EN 60529
- Ambient temperature, maximum
- +90 °C
Ambient temperature, minimum-30 °C
Mechanical data - Connection technique
- Terminal Connector
- Screw terminals M20 x 1.5
- Cable section, maximum
- 4 mm²
- Wire cross-section
- 11 AWG
Cable section, minimum1.5 mm²
Note (Cable section)All indications about the cable section are including the conductor ferrules.
Mechanical data
- Actuating element
- Plunger
- Actuating angle
- 20 °
- Actuating speed, minimum
- 600 mm/min
- Note (Actuating speed)
- Actuating speed with vertical actuating angle to switch axis
Mechanical life, minimum30,000 Operations
Contact opening2 x 4 mm
Actuating speed, maximum1 m/s
Approval - Standards
- Certificates
- cULus | CCC | EAC
