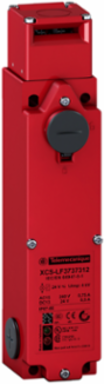

Telemecanique Sensors XCSLF3737513 Safety switch, Telemecanique Safety switches XCS, metal XCSLF, 4NC+2 NO, slow break, 3 entries tapped 1/2" NPT 24 V
Telemecanique Sensors XCSLF3737513 Safety switch, Telemecanique Safety switches XCS, metal XCSLF, 4NC+2 NO, slow break, 3 entries tapped 1/2" NPT 24 V
- MPN: XCSLF3737513
- PPN: TES-XCSLF3737513
- UNSPSC: 39122213
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$779.47/ EA
Description
This product is part of the XCS range, an offer of safety switches for protection of operators and machine safety also. The safety switch is an electrical switch that makes or breaks contact in the presence of a magnetic field. It has 4 normally closed + 2 normally opened, slow-break, break before make contacts, normally closed contact with positive opening operation. It is a limit switch with a rated operating current of 0.55A at 24V, 0.75A at 240V and conventional enclosed thermal current of 4A. It is furnished with spring terminals for electrical connection and 3 cable entries tapped for 1/2inch NPT. The electromagnet interlocking on de-energization and unlocking on energization of the solenoid. It offers mechanical durability of about 1 million operating cycles. It is an IP66 and IP67 rated product. This key operated turret head limit switch has a slim metal body which is made of Zamak. Its dimensions are 44mm (width) x 51mm (depth) x 205mm (height) and weighs 1.1kg. It is intended as far as safety is concerned all dangerous machines in all sectors are involved, such as packaging, handling, robotics, machine tools, presses and the automotive sector. This product is certified by UL, TÜV and CSA. It complies with UL 508, EN/ISO 13849-1, EN/IEC 62061, EN 60947-5-1, EN 1088/ISO 14119 and CSA C22.2 No 14 standards. One of the most comprehensive catalogues of industrial safety switches on the market. Save time in setting up, place and in the cabinet with innovative coded magnetic system. These safety switches for controlling the safe opening and interlocking of guards and covers in your installations.
Specifications
Environment
- Product Certifications
- UL || CSA || TÜV
- Standards
- CSA C22.2 No 14 || EN 1088/ISO 14119 || EN/IEC 62061 || EN/IEC 60204-1 || EN/ISO 13849-1 || UL 508 || EN/IEC 60947-5-1
- Vibration Resistance
- 5 gn 10-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
- Protective Treatment
- TC
Ambient Air Temperature For Operation-25-60 °C
Shock Resistance10 gn 11 ms IEC 60068-2-27
Ip Degree Of ProtectionIP66 conforming to EN/IEC 60529 and EN/IEC 60947-5-1 || IP67
Electrical Shock Protection Classclass I EN/IEC 61140
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110916EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI110903EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Minimum Switching Current
- 10 mA at 20 °C
- Maximum Load Current
- <= 15 A
- Minimum Actuation Speed
- 0.01 m/s
- Supply Voltage Type
- AC/DC
- Signalling Circuit Type
- AC/DC
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV EN/IEC 60947-5-1
- [Ui] Rated Insulation Voltage
- 300 VUL 508 || 300 VCSA C22.2 No 14 || 250 V 3)EN/IEC 60947-1
- Load Factor
- 1
- Minimum Actuator Force For Extraction
- 20 N
- Maximum Actuation Speed
- 0.5 m/s
- Safety Reliability Data
- B10d = 5500000 value given for a life time of 20 years limited by mechanical or contact wear
- Depth
- 51 mm
- Maximum Actuator Forcible Withdrawal Rtc
- 3000 N
- Supply Frequency
- 50/60 Hz
Height205-205 mm
Short-Circuit Protection4 A cartridge fuse gG (gl) || 6 A fast blow
[Ithe] Conventional Enclosed Thermal Current4 A
Head Materialzamak
Net Weight1.1 kg
Maximum Operating Rate10 cyc/mn for maximum durability
Positive Openingwith NC contact
[Ie] Rated Operational Current0.55 A 24 V, DC-13, R300 EN/IEC 60947-5-1 || 0.75 A 240 V, AC-15, C300 EN/IEC 60947-5-1
Mechanical Durability1000000 cycles
Body Materialzamak
Width44 mm
Minimum Switching Voltage17 V
Resistance To Mechanical Impact9.6 J against the partition || 6.4 J without partition
Safety Levelcan reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 EN/IEC 61508
Specifications
- [Us] Rated Supply Voltage
- 24 V - 15...10 %
- Cable Entry
- 3 entries tapped 1/2" NPT
- Locking Options Description
- with interlocking, locking by solenoid
- Product Or Component Type
- safety switch
- Component Name
- XCSLF
- Material
- metal
- Contacts Type And Composition
- 2 NC + 1 NO
- Local Signalling
- for actuator withdrawn 1 LED (orange) || for actuator inserted and locked 1 LED (green)
- Number Of Poles
- 3
Range Of ProductTelemecanique Safety switches XCS
Electrical Connectionspring terminal 1 x 1.5 mm² flexible or solid cable || spring terminal 2 x 0.5 mm² flexible cables with 13 mm bared ends
Solenoid Contacts Type And Composition2 NC + 1 NO slow-break, break before make)
Signalling Circuit Voltage24 V
Designslim
Head Typekey operated turret head
Contact Operationslow-break, break before make
Electromagnet Interlockinglocking on energisation and unlocking on de-energisation of solenoid
