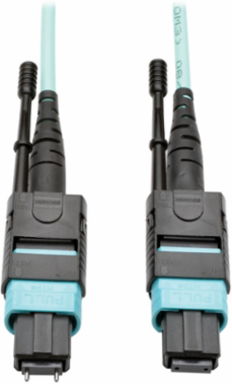

Tripp Lite N842-10M-12-MF 10M MTP/MPO Multimode Patch Cable, 12 Fiber, OM3, Aqua
- MPN: N842-10M-12-MF
- UPC: 037332191076
- PPN: TRP-N842-10M-12-MF
CAD
$579.61
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Premium multimode fiber optic cabling for transmitting 40 Gb data and voice signals over short distances. Designed to extend high-density connections between network equipment in telecommunication rooms.
Features
- 40 Gb Ethernet speed up to 300 m (@ 850 nm)
- Push/pull tab connectors install/remove with one hand
- 12-fiber MTP/MPO connector with 12x density of SC connector
- 100% tested for low insertion loss and back reflection
- 50/125 OM3-rated multimode fiber
- This product is covered by a Lifetime Limited Warranty ( coverage details )
Specifications
Additional
| Network Speed | 10 Gbps / 40 Gbps / 100 Gbps |
|---|---|
| Optical Mode | OM3 |
| Cable Length | 10 m (32.8 ft) |
| Clad Diameter | 125 micron |
| Material | 50/125 duplex glass fiber |
| Push/Pull Tabs | Yes |
| Color | Aqua |
| Number of Fibers | 12 |
|---|---|
| Max Distance | 300 m (@ 850 nm) |
| Core Diameter | 50 micron |
| Connector Types | 12-strand MTP Male, 12-strand MTP Female |
| Jacket Rating | Plenum-rated |
| Compliance | IEEE 802.3ae, TIA LOMMF |
| Weight | 0.20 lbs |
