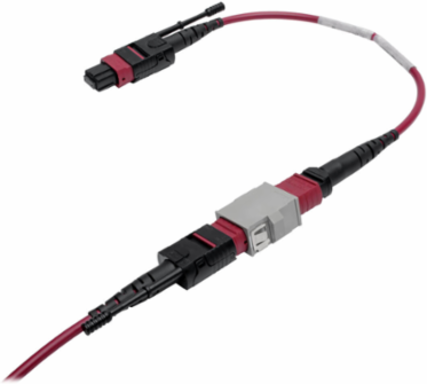

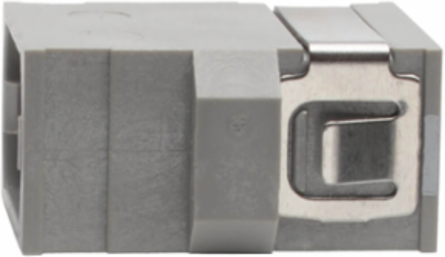

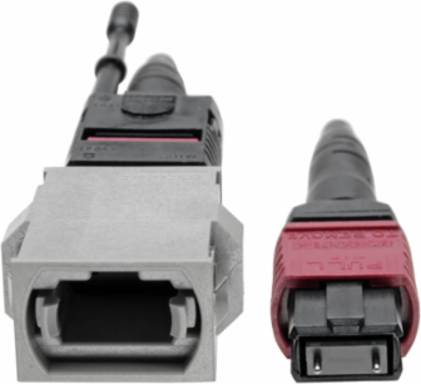

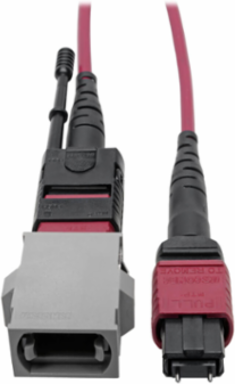

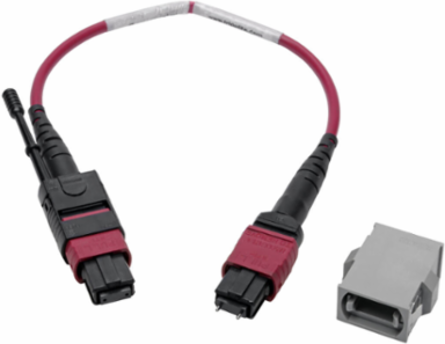

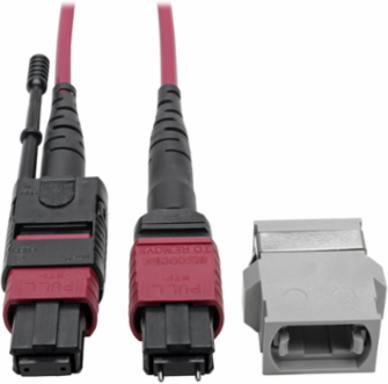

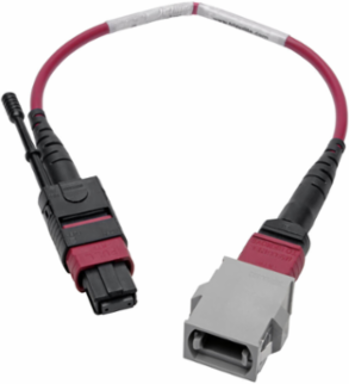

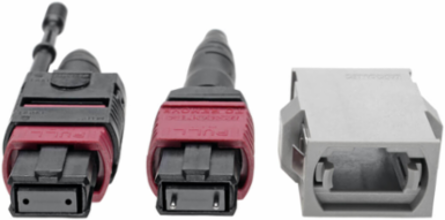

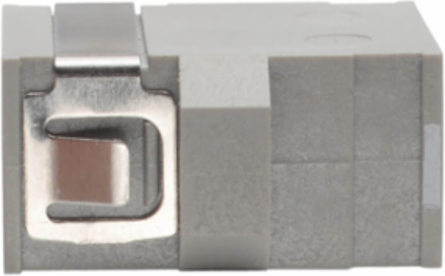

Tripp Lite N846-08N-A2B MTP/MPO Base-8 Migration Fiber Adapter, 12 Fiber, 8 Inch, OM4, Magenta
- MPN: N846-08N-A2B
- UPC: 037332203472
- PPN: TRP-N846-08N-A2B
CAD
$289.67
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Adapter patch cable converts legacy 12-fiber MTP/MPO Method A cables to Method B Polarity for compatibility with Parallel Optics fiber mapping in Base-8 40GBASE-SR4 and 100GBASE-SR4 applications.
Features
- Supports speeds up to 40 GbE/100 GbE
- Push/pull tab connector installs/removes with one hand
- 12-fiber MTP/MPO connectors
- 100% tested for low insertion loss and back reflection
- 50/125 duplex glass fiber construction
- This product is covered by a Lifetime Limited Warranty ( coverage details )
Specifications
Additional
| Network Speed | 10Gbps / 40Gbps / 100Gbps |
|---|---|
| Attenuation @ 850NM | 3.0 dB/KM |
| Storage Temperature Range | -4 to 140 F (-20 to 60 C) |
| Core Diameter | 50 micron |
| Fiber Count | 12 fibers |
| Connector Type Side B | 12-strand MTP (female) |
| Cable Jacket | Plenum-rated OFNP |
| Polarity | Method A to Method B |
| Compliance | Meets IEEE 802.3ae, TIA standards |
| Attenuation @ 1300NM | 1.0 dB/KM |
|---|---|
| Operating Temperature Range | -4 to 140 F (-20 to 60 C) |
| Cable Length | 8 in. |
| Clad Diameter | 125 micron |
| Connector Type Side A | 12-strand MTP (male) |
| Optical Mode | OM4 |
| Fiber Construction | 50/125 duplex glass |
| Color | Magenta |
