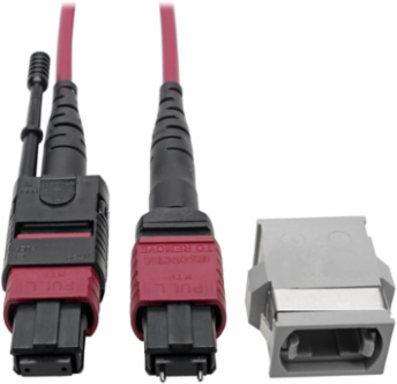

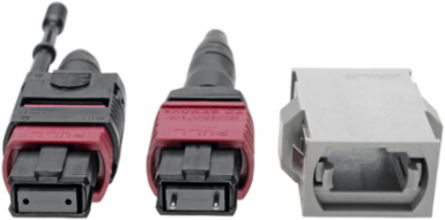

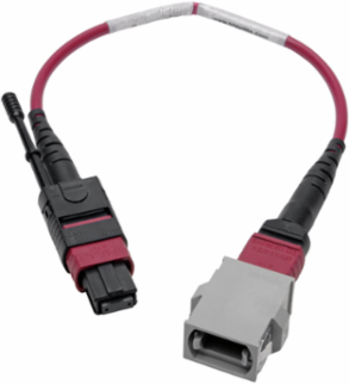

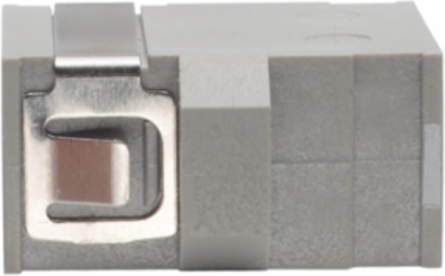

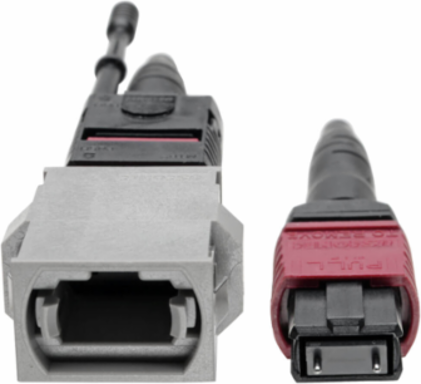

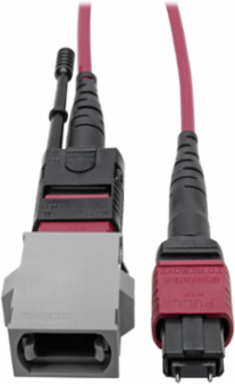

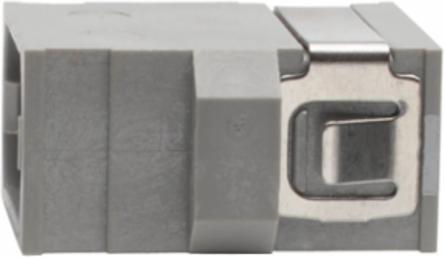

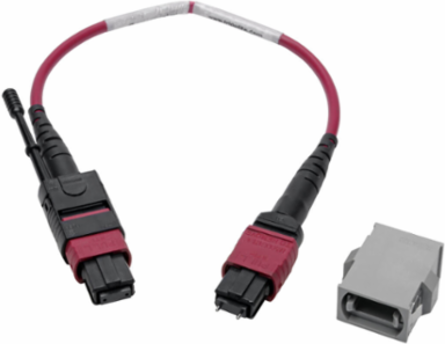

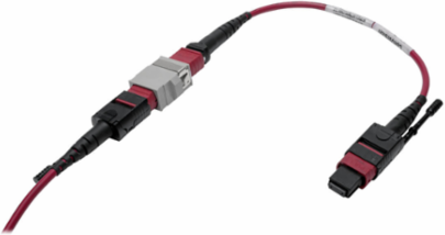

Tripp Lite N846-08N-C2B MTP/MPO 12-Fiber Adapter, Polarity C to B, OM4, 8 Inch
- MPN: N846-08N-C2B
- UPC: 037332203489
- PPN: TRP-N846-08N-C2B
CAD
$247.41
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Adapter patch cable converts legacy 12-fiber MTP/MPO Method C cables to Method B Polarity for compatibility with Parallel Optics fiber mapping in Base-8 40GBASE-SR4 and 100GBASE-SR4 applications.
Features
- Supports speeds up to 40 GbE/100 GbE
- Push/pull tab connector installs/removes with one hand
- 12-fiber MTP/MPO connectors
- 100% tested for low insertion loss and back reflection
- 50/125 duplex glass fiber construction
- This product is covered by a Lifetime Limited Warranty ( coverage details )
Specifications
Additional
- Network Speed
- 10Gbps / 40Gbps / 100Gbps
- Storage Temperature Range
- -4 to 140 F (-20 to 60 C)
- Core Diameter
- 50 micron
- Attenuation @ 1300NM
- 1.0 dB/KM
- Fiber Count
- 12
- Side B Connector
- 12-Strand MTP (Female)
- Optical Mode
- OM4
- Jacket Type
- Plenum-rated OFNP
- Color
- Magenta
Operating Temperature Range-4 to 140 F (-20 to 60 C)
Cable Length8 in.
Clad Diameter125 micron
Attenuation @ 850NM3.0 dB/KM
Side A Connector12-Strand MTP (Male)
PolarityC to B
Material50/125 duplex glass fiber
Push/Pull TabsYes
Product WarrantyLifetime limited warranty
