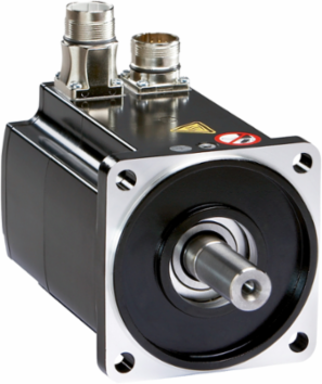

Schneider Electric BMH2051P22A2A servo motor BMH, Lexium 32, 34.4Nm, 3800rpm, untapped shaft, without brake, IP65, IP67, 128 multiturn encoder

MPN: BMH2051P22A2A
PPN: SCH-BMH2051P22A2A
UNSPSC: 26101205

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

servo motor BMH, Lexium 32, 34.4Nm, 3800rpm, untapped shaft, without brake, IP65, IP67, 128 multiturn encoder

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Germany

Weight	39000 g

Physical Attributes

Motor Flange Size	205 mm

Shaft Length	80 mm

Complementary Attributes

Minimum Ambient Air Temperature For Operation	-20.0 °C, -20.0 °C
Maximum Ambient Air Temperature For Operation	60.0 °C
Maximum Current Irms	78.1 A LXM32.D72N4
Maximum Operational Altitude	3000.0 m
Maximum Radial Force Fr	3730 N 1000 rpm2960 N 2000 rpm2580 N 3000 rpm
Us Rated Supply Voltage	480 V

Line Rated Current	13.1 A
Maximum Axial Force Fa	0.2 x Fr
Maximum Mechanical Speed	3800 rpm
Maximum Permanent Current	78.1 A
Minimum Operational Altitude	0.0 m
Maximum In Rated Current	13.1 A

Important Information Attributes

Coefficient 1 1	-0.0044666666667672 N.m/rpm, -0.0044666666667672 N.m/rpm
Coefficient 1 5	-4.0050027E-26 N.m/rpm5, -4.0050027E-26 N.m/rpm5
Nominal Speed	3000 rpm, 2000 rpm LXM32.D72N4 24 A, 400 V, three phase, 2000 rpm LXM32.D72N4 24 A, 480 V, three phase
Peak Stall Torque	103.4 N.m LXM32.D72N4 24 A, 400 V, three phase, 103.4 N.m LXM32.D72N4 24 A, 480 V, three phase
Carbon Footprint Of The End Of Life Phase C1 To C4	4 kg CO2 eq., 3.675007371
Carbon Footprint Of The Manufacturing Phase A1 To A3	171 kg CO2 eq., 170.7375921376
Local Data Status	Publishable
Return Indicator	N
Serviceability	Yes
Field Service Division	IDIBS
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Product Kit Identifier	N
Circle Diameter Of The Mounting Holes	215 mm
Coefficient 1 4	1.717521E-22 N.m/rpm4
Coefficient 2 1	0 N.m/rpm
Continuous Stall Current	21.5 A
Derating Altitude Start	1000.0 m
Derating Temperature Start	40.0 °C
Electrical Connection	rotatable right-angled connectors
Holding Brake	without
Motor Figures	400.0 V
Mounting Holes Diameter	14 mm
Network Number Of Phases	3
Number Of Motor Stacks	1
Peak Nominal Torque	110.0 N.m
Product Availability	Non-Stock - Not normally stocked in distribution facility
Returnability	No
Second Shaft	without second shaft end
Shaft End	smooth shaft
Software Version	EIME v5.8.1
Stator Electrical Time Constant	19.7 ms 20 °C
Stator Resistance	0.3 Ohm 20 °C
Temperature Copper Hot	135 °C
Temperature Magnet Rt	20 °C
Total Lifecycle Carbon Footprint	5 991 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Data Source	extrapolated product
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Coefficient 1 3	-3.404680554E-19 N.m/rpm3, -3.404680554E-19 N.m/rpm3
Continuous Stall Torque	34.4 N.m LXM32.D72N4 24 A, 400 V, three phase, 34.4 N.m LXM32.D72N4 24 A, 480 V, three phase
Nominal Torque	21.0 N.m full speed27.7 N.m half speed, 25.8 N.m LXM32.D72N4 24 A, 400 V, three phase, 25.8 N.m LXM32.D72N4 24 A, 480 V, three phase
Carbon Footprint Of The Distribution Phase A4	5.0316707617, 5 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.3459788698, 0.3 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	5 811 kg CO2 eq., 5811.2533205005
Local Publishable Date	2026-01-12
Device Type	Motion - drive & motor
Traceability	Yes
Average Life Duration	15 year(s)
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1905
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Centring Collar Diameter	180 mm
Coefficient 1 2	3.062583494118E-16 N.m/rpm²
Coefficient 1 6	3.50827E-30 N.m/rpm6
Continuous Power	6.8 W
Derating Altitude Scale	80.0 m
Derating Temperature Scale	80.0 °C
Device Short Name	BMH
Feedback Type	multiturn SinCos Hiperface
Inertia	0.0 kg.cm² of brake71.4 kg.cm² of motor
Motor Voltage Drop Coefficient	1
Mounting Support	international standard flange
Number Of Motor Poles	5.0
Number Of Mounting Holes	4
Phase	three phase
Product Or Component Type	servo motor
Rotor Inertia	71.4 kg.cm²
Shaft Diameter	38 mm
Sizing Reference	BMH2051P
Speed Feedback Resolution	131072 points/turn x 4096 turns
Stator Inductance	2.95 mH 20 °C
Sustainable Packaging	No
Temperature Magnet Hot	100 °C
Torque Constant	1.6 N.m/A
Type Of Cooling	natural convection
Database Version	2016-11
Length Total	321 mm
Customs Code	8501524000
Functional Unit Description	Coordinate and synchronize motion control up to 207W during 10 years and a 70% use rate.
Functional Unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	11861.04

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Carbon Footprint	5991.0435696405
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	LXM32.D72N4 400...480 V three phase
Pep Code	ENVPEP111049EN
Pcr Version	PCR-ed3-EN-2015 04 02

Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP111049EN
Ip Degree Of Protection	IP65 standardIP67 with IP67 kit
Packaging Without Single Use Plastic	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2020-08-01
Type Of Verification For The Pep	Independent internal review
