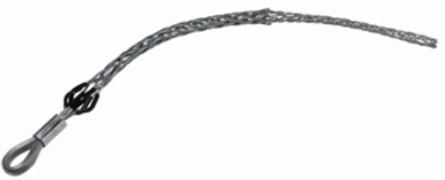

Pass & Seymour P1501 Multi-Weave Pulling Grip with Rotating Eye, 1-1/2 Inch to 1-3/4 Inch Cable Diameter, 60 Inch Mesh Length, Break Strength 30,600 lbs
Pass & Seymour P1501 Multi-Weave Pulling Grip with Rotating Eye, 1-1/2 Inch to 1-3/4 Inch Cable Diameter, 60 Inch Mesh Length, Break Strength 30,600 lbs
- MPN: P1501
- UPC: 785007991956
- PPN: P-S-P1501
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$257.46/ EA
Description
Multi-Weave, Rotating Eye. Cable Diameter - 1.500-1.740-inch, Mesh Length - 60-inch, Eye Diameter - 1 7/8-inch, Break Strength - 30,600 lbs, Red.
Features
- Multi-weave pulling grips are constructed of high strength galvanized steel and are designed for pulling aluminum or copper bare conductor, wire rope and insulated cables.
- These grips are used in applications such as distribution line stringing and overhead transmission.
- Multi-weave pulling grips are available with a flexible and rotating eye, which can be attached to a swivel.
- Description : Rotating Eye: The forged steel rotating eye will thread through sheaves and blocks without binding, but is not a swivel and will not turn under tension.
- The rotating eye can turn to relieve pulling torque when tension is relaxed.
- Mesh Length: 60: Eye Diamater: 1-7/8
Specifications
Specifications
- Country of Origin
- Mexico
- Eye Style
- Rotating
- Mesh Length
- 82.0 in
- Minimum Cable Range
- 1.74 in
- Cable Diameter Range
- 1.50-1.70 in
- Capacity
- Various Cable Diameter Ranges
- Mounting
- Consult the Factory for Mounting Recommendations
- Special Features
- Multi-weave pulling grips are constructed of high strength galvanized steel and are designed for pulling aluminum or copper bare conductor, wire rope and insulated cables. These grips are used in applications such as distribution line stringing and overhead transmission. Multi-weave pulling grips are available with a flexible and rotating eye, which can be attached to a swivel. The forged steel rotating eye will thread through sheaves and blocks without binding, but is not a swivel and will not turn under tension. The rotating eye can turn to relieve pulling torque when tension is relaxed.
TypePulling Grip
Indoor/OutdoorBoth
Maximum Cable Range1.5 in
Application SectorIndustrial
Approximate Break Strength31505.0 lb
StandardUL/CSA Approval (consult factory)
ConstructionSupport and Strain Relief Grips, Various Types of Pulling
Product LinePass & Seymour
